SM965A

Photo may show similar product

Other views

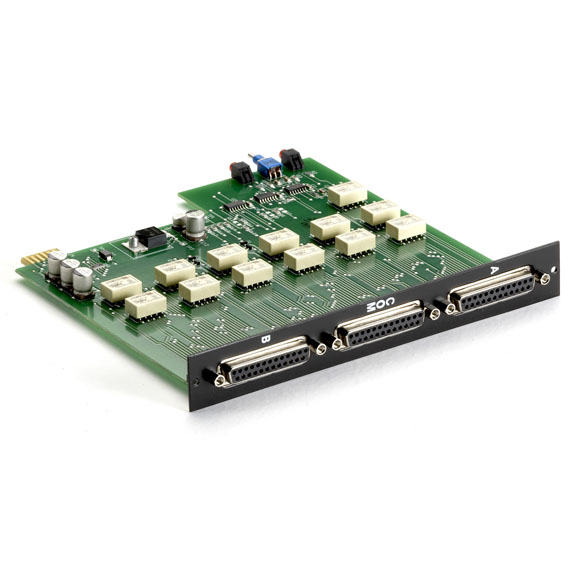

Pro Switching System Plus A/B Switch Card, DB25

Provides A/B switching for DB25 terminal connectors.

SM965A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Plugs into the Pro Switching System Plus to provide A/B switching for DB25 terminal connectors.


  • Description

    Pro Switching System Plus A/B Switch Card, DB25


    Quick Facts

  • Plugs into the Pro Switching System Plus to provide A/B switching for DB25 terminal connectors.

  • Further Details



    Technical Specifications for Pro Switching System Plus A/B Switch Card, DB25:

    Approvals CE
    Relay Breakdown Voltage 1000 V, 1500 V surge (between open or adjacent contacts or contacts to coil)
    Relay Carrying Current 2 A maximum
    Relay Contact Resistance 50 milliohm (typical)
    Relay Reliability >1,000,000 operations at 50 VDC, 0.1 A (resistive)
    Relay Switching Current 1 A maximum
    Relay Switching Power 30 W, 62.5 VA (resistive) maximum
    Relay Switching Voltage 220 VDC, 250 VDC maximum
    Relay Shock/Vibration Ratings —  Shock: 75 G misoperation, 100 G destructive;
    Vibration: 20 G misoperation, 30 G destructive
    Connectors (3) DB25 F
    Indicators (2) LEDs (A and B)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Pro Switching System Plus A/B Switch Card, DB25:


    Connect your Pro Switching System Plus A/B Switch Card, DB25 with:

    Accessory: SM960A

    Pro Switching System Plus Chassis, 4U

    Pro Switching System Plus Chassis, 4U

    Accessory: SM962A

    Pro Switching Controller Card, SNMP/RS-232/Manual Switching

    Pro Switching Controller Card, SNMP/RS-232/Manual Switching

    Accessory: SM963A

    Pro Switching System Plus Controller Card, RS-232/Manual Switching

    Pro Switching System Plus Controller Card, RS-232/Manual Switching

    Accessory: SM964A

    Pro Switching System Plus Controller Card, Manual Switching

    Pro Switching System Plus Controller Card, Manual Switching

    Accessory: SM967A

    Pro Switching System Plus A/B Switch Card, DB15

    Pro Switching System Plus A/B Switch Card, DB15

    Accessory: SM968A

    Pro Switching System Plus AC Power A/B Switch Card, 120 VAC, Logic Only, 1-In/2-Out

    Pro Switching System Plus AC Power A/B Switch Card, 120 VAC, Logic Only, 1-In/2-Out

    Accessory: SM969A

    Pro Switching System Plus 120-VAC Power A/B Switch Card with Processor/Networked Reporting, 1 In/2 Out

    Pro Switching System Plus 120-VAC Power A/B Switch Card with Processor/Networked Reporting, 1 In/2 Out

    Accessory: SM970A

    Pro Switching System Plus 240-VAC Power A/B Switch Card, Processor/Network Reporting, 1-In/2-Out

    Pro Switching System Plus 240-VAC Power A/B Switch Card, Processor/Network Reporting, 1-In/2-Out

    Accessory: SM971A

    Pro Switching System Plus 240-VAC Power A/B Switch Card, Processor/Network Reporting, 1-In/2-Out

    Pro Switching System Plus 240-VAC Power A/B Switch Card, Processor/Network Reporting, 1-In/2-Out

    Accessory: SM973A

    Pro Switching System Plus 120-VAC Power A/B Switch Card, Processor/Network Reporting, 2-In/1-Out

    Pro Switching System Plus 120-VAC Power A/B Switch Card, Processor/Network Reporting, 2-In/1-Out
