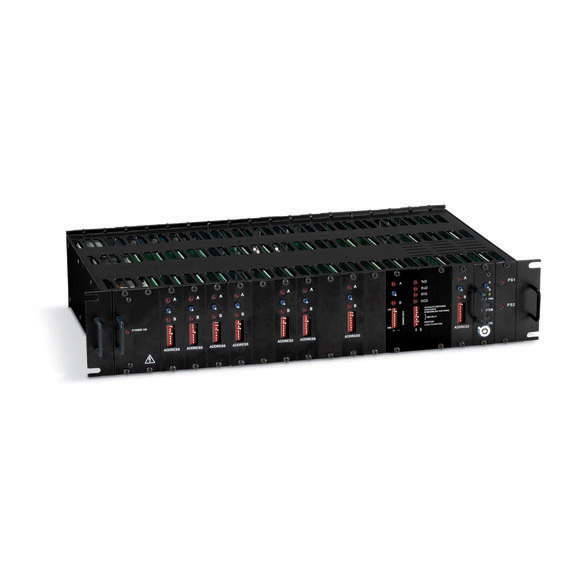

Pro Switching System Chassis, 2U, 18-Card

Get full-performance gang-switching capabilities in an ultra-compact 2U chassis.

SM260A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Save space in your rack.
  • Mix and match hot-swappable RS-232, RS-530, video, fiber, CAT5e, and CAT6 A/B switching modules in a single chassis.
  • Chassis holds up to 18 modules. Cascade multiple chassis and racks.
  • Offers secure switching via latching relays.
  • Choose a single power supply or dual-redundant power cards.
  • Control switching locally or remotely.

  • Description

    Pro Switching System Chassis, 2U, 18-Card


    Quick Facts

  • Save space in your rack.
  • Mix and match hot-swappable RS-232, RS-530, video, fiber, CAT5e, and CAT6 A/B switching modules in a single chassis.
  • Chassis holds up to 18 modules. Cascade multiple chassis and racks.
  • Offers secure switching via latching relays.
  • Choose a single power supply or dual-redundant power cards.
  • Control switching locally or remotely.

  • Further Details

    The Pro Switching System 2U is an intelligent ganged switching system consisting of an ultra-compact 2U 18-slot chassis and a selection of A/B switching, controller, and power supply cards.

    Controller Cards take up only one slot, and Power Cards take up one slot or two slots for redundancy, leaving you with 13–15 slots for A/B Switch Cards. All occupy one slot, except for the DB25 Cards, which require three slots.

    Local and remote control.
    The advanced design of this system gives incredible operational flexibility and performance. Switch one card individually or switch the entire chassis through a Controller Card. You’ll need one Controller Card per rack chassis. If you plan to daisychain multiple chassis, the Controller Card in the first chassis controls the entire system.

    You can choose an RS-232 Only Controller Card, which enables you to gang switch via the manual toggle switch or with serial commands, as well as an RS-232/Ethernet (SNMP) Controller Card, which enables you to switch the chassis from anywhere via an RS-232 or IP connection.

    If you want to extend RS-232/IP control to a second daisychained Pro Switching System chassis, order the SNMP Expansion Controller Card. This enables you to send hardware control signals and control the daisychained system with RS-232 messages through the RS-232/Ethernet (SNMP) Controller Card.

    Pick a card, any card.
    A/B Switch Cards are available for RS-232, video, fiber optic, and CAT5e/CAT6 connections.Use the system for both new and legacy applications. You can add cards for fast CAT6 10-Gb E networking while keeping connections for older RS-232 and 75-ohm video connections.

    Secure and fallback switching.
    For fail-safe operation, all the cards (except those noted) use proprietary latching or micro-mirror relay switching technology—which means data can continue to pass through even if the power has been cut off. Because the cards perform Layer 1 switching, the system operates independently of data rates, protocols, formats, or signal levels.

    The non-latching fiber cards fall back to a Port C (chassis) to Port A connection when the power fails. When power is restored, the non-latching switch card reconnects Port C to the originally selected port (A or B). These types of cards are typical when you want a fallback or failover connection during power outages.

    Each chassis also has a keyed switch so you can enable/disable manual switching from the front-panel toggle switches.

    Control power.
    To power your chassis, order one or two external power supplies and the power adapter card. For backup power, add a Redundant Power Supply Card.

    Ordering instructions

    First, order the chassis...
    Pro Switching System, 2U, 18-Card (SM260A)

    Next order at least one power supply (order two for redundant power)...
    Power Supply, 120–240 VAC, External (SM961A-PS)

    Next order a card to adapt power input...
    Power Supply Cards:
    AC External Adapter Card (SM261A-CARD)
    Redundant Power Supply Cards (NOTE: Each card requires two chassis slots.):
    100–240-VAC Input (SM261A-VAC)
    -48-VDC Input (SM261A-VDC)

    ...then select a Controller Card...
    RS-232/Ethernet (SNMP) (SM262A)
    RS-232 Only (SM263A)
    SNMP Expansion (SM264A)

    ...next choose your A/B Switch Cards...
    DB25/RS-232 (SM265A)
    DB25/RS-530 (SM266A)
    Video F-Connector, Latching (SM276A-LCH)
    Video F-Connector, Non-Latching (SM267A)
    Multimode Fiber Optic:
    ST®, Latching (SM277A-MM-ST-LCH)
    SC, Latching (SM277A-MM-SC-LCH)
    ST, Non-Latching (SM277A-ST)
    SC, Non-Latching (SM277A-SC)
    Single-Mode Fiber Optic:
    ST, Latching (SM278A-SS-ST-LCH)
    SC, Latching (SM278A-SS-SC-LCH)
    ST, Non-Latching (SM278A-ST)
    SC, Non-Latching (SM278A-SC)
    RJ-45 Copper:
    RJ-45 CAT5 (SM268A)
    RJ-45 CAT6 (SM269A)

    For empty slots, order...
    Blank Panel, Front or Rear, 2U (SM279A-BLNK)
