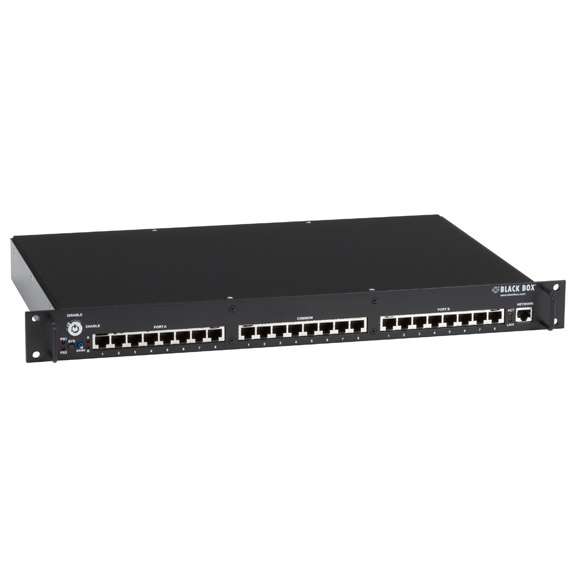

Pro Switching System 1U NBS, RJ-45 A/B (All 8 Pins), 8-Port

Use this Layer 1 switch to add access control, network backup, and failover switching to data networks.

NBSALL8

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Shut off access to your private network based on time of day, virus detection, or hacker alerts.
  • Provides A/B switching between 10/100/1000 terminated copper networks.
  • Latches the A/B position to keep signals moving even if power is lost.


  • Description

    Pro Switching System 1U NBS, RJ-45 A/B (All 8 Pins), 8-Port


    Quick Facts

  • Shut off access to your private network based on time of day, virus detection, or hacker alerts.
  • Provides A/B switching between 10/100/1000 terminated copper networks.
  • Latches the A/B position to keep signals moving even if power is lost.

  • Further Details

  • Enables individual or simultaneous (ganged) control of circuits.
  • Switch manually or electronically using a local RS-232 serial console.
  • Lockable switch with removable key for securing gang switching control.
  • Supports connections to Gigabit Ethernet segments.
  • Features highly reliable internal telecommunications relays.
  • Transparent to data rates, protocols, formats, and signal levels.
  • Compact, 1U-high rackmountable chassis.
  • Includes dual power inputs for redundancy.
  • Daisychain multiple units for up to 4080 ports or 255 chassis.

    Use this Layer 1 switching system to add network backup and failover switching to your data networks. It's ideal for mission-critical applications, including classified information and military systems, broadcast networks, and stock exchanges.

    With the Pro Switching System 1U NBS, it's very simple to switch all users from a main network to a backup network at the chassis itself using a momentary toggle switch on the front or via a serial RS-232 workstation.

    This model switches all eight leads on the RJ-45 ports. It's designed for use in 10BASE-T/100BASE-TX/1000BASE-TX Ethernet networks, for switching RS-232 circuits that use both data and hardware handshake leads, or any application that requires use of more than four leads. (We also offer models that switch just Pins 1/2 and 3/6 of the RJ-45 connectors.)

    Each switching circuit has a common (C) port that's latched to its associated A or B port, which means it passes signals even if the chassis is without AC power. Because its relays are physically latched into position, once a position is set, it stays set. The switch circuit is as reliable as the CATx cables connected to it.

    A key-lockable switch secures the gang switching function. With the key-lock switch in the enabled position, all ports in the Pro Switching System 1U NBS can be simultaneously switched by pressing the momentary toggle switch on the chassis' front.

    Port settings are also software controllable, so you can toggle a connected device from the A to the B position from a workstation. You not only have reliable network paths, but you can automate switching to control individual settings.

    Need to add ports later? Simply daisychain multiple Pro Switching System 1U NBS chassis together—up to 255 in all—and control them as a single system.



  • Technical Specifications for Pro Switching System 1U NBS, RJ-45 A/B (All 8 Pins), 8-Port:

    MTBF >1.3 million hours (based on field failure rate data for redundant supply configurations in a ground benign environment)
    Switches A/B gang switch: (1) momentary toggle switch;
    Gang switch enable: (1) key-lock switch;
    System select switch: (1) momentary push-button switch;
    Rack address switch: (1) 8-position DIP switch;
    Configuration switch: (1) 8-position DIP switch
    CE Approval Yes
    RoHS Yes
    Indicators Power supply LEDs: (1) status 1, (1) status 2;
    Switch position LEDs: (1) all ports position A, (2) all ports position B
    Connectors Switch circuits: (8) containing (3) RJ-45 (A/B/C) for a total of (24) RJ-45;
    Serial control port: (1) DB9 F (RS-232);
    Daisychain port: (2) RJ-11 (gang in/gang out)
    Operating Environment Temperature: 32 to 104° F (0 to 40° C);
    Humidity: Up to 95%, non-condensing
    Power Input: (2) 110-230 VAC, 60-Hz adapters for redundancy;
    Output: 12 VDC, 100 mA nominal, additional 374 mA while switching
    Dimensions 1.75"H (1U) x 17.25"W x 10.5"D (4.4 x 43.8 x 26.7 cm)
    Weight 5 lb. (2.3 kg) excluding external power supplies


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
