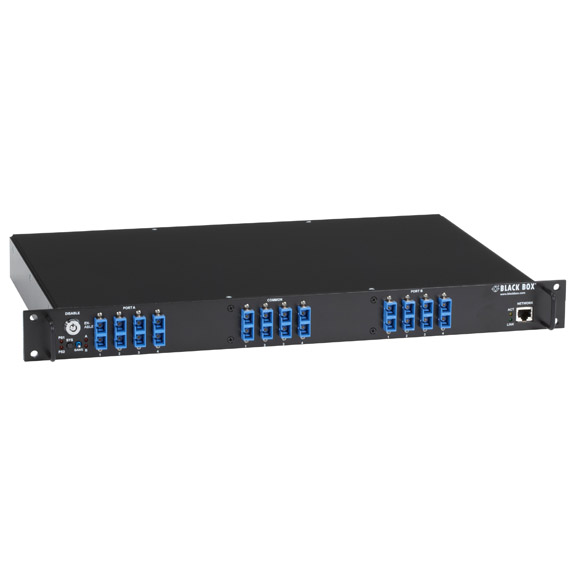

Pro Switching System 1U NBS, Fiber Multimode SC A/B, 4-Port, Network Manageable

Prevent costly network downtime with this reliable A/B gang switching system.

NBS004MA

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Multiport switching to prevent lost productivity and business downtime.
  • Provides A/B switching between fiber SC multimode terminated circuits.
  • Latches the A/B position to keep signals moving even if power is lost.


  • Further Details

  • Enables individual or simultaneous (ganged) control of circuits.
  • Switch manually, electronically via a local RS-232 console, or remotely over a TCP/IP network.
  • Lockable switch with removable key for securing gang switching control.
  • Features highly reliable micro-mirror optical switching mechanisms.
  • Transparent to data rates, protocols, formats, and signal levels.
  • Supports connections to Gigabit-speed fiber networks.
  • Compact, 1U-high rackmountable chassis.
  • Includes dual power inputs for redundancy.
  • Daisychain multiple units for up to 255 chassis.

    Use this optical Layer 1 switching system to add network backup and failover switching to fiber connections on your data networks. It's ideal for mission-critical classified government and military networks, broadcast networks, private medical/healthcare systems, and factory/industrial applications.

    With the Pro Switching System 1U NBS, it's very simple to switch all users from a main network to a backup network. Locally, this is done using a momentary toggle switch on the chassis' front or from a serial RS-232 workstation. But it also supports control from a remote workstation via its 10BASE-T Ethernet port. Through this TCP/IP connection, you can switch and monitor circuits using Telnet, SNMP, or a Web browser link.

    The switching system also features auto bypass and auto recovery functions. If the "normal" network paths between the chassis and the device being monitored go down for any reason, the chassis will automatically switch from the normal connection state to the bypass, or failover, connection state.

    Unique latching optical switch mechanisms and micro-mirrors optically route signals between ports. And because the system is fiber based, there's no need to worry about EMI/RFI interfering with signaling in electronically noisy applications.

    The system uses duplex SC connections for each channel (port) to form bidirectional data paths to your 62.5/125-m multimode network segments. Simply connect fiber cables between the system's circuits and the network connections you want to control. As soon as the fiber cables are plugged into the chassis, the selected data paths become active.

    Each switching circuit has a common (C) port that's latched to its associated A or B port, which means it transmits signals even if the chassis is without AC power. Because its relays are physically latched into position, once a position is set, it stays set.

    A key-lockable switch secures the gang switching function. With the key-lock switch in the enabled position, all ports in the Pro Switching System 1U NBS can be simultaneously switched by pressing the momentary toggle switch on the chassis' front.

    Port settings are also software controllable, so you can toggle a connected device from the A to the B position from a workstation. You not only have reliable network paths, but you can automate switching to control individual settings.

    Need to add ports later? Simply daisychain multiple Pro Switching System 1U NBS chassis together—up to 255 in all—and control them as a single system.



  • MTBF  >1.3 million hours (based on field failure rate data for redundant supply configurations in a ground benign environment)
    Switches A/B gang switch: (1) momentary toggle switch;
    Gang switch enable: (1) key-lock switch;
    System select switch: (1) momentary push-button switch;
    Rack address switch: (1) 8-position DIP switch;
    Configuration switch: (1) 8-position DIP switch
    CE Approval Yes
    RoHS Yes
    Indicators Power supply LEDs: (1) status 1, (1) status 2;
    Switch position LEDs: (1) all ports position A, (2) all ports position B;
    Network status LEDS: (1) management port ON, (1) command activity
    Connectors Switch circuits: (4) containing (3) SC duplex (A/B/C) for a total of (12) SC duplex;
    Management port: (1) RJ-45 (10BASE-T);
    Serial control port: (1) DB9 F (RS-232);
    Daisychain port: (2) RJ-11 (gang in/gang out)
    Operating Environment Temperature: 32 to 104° F (0 to 40° C);
    Humidity: Up to 95%, non-condensing
    Power Input: (2) 110-230 VAC, 60-Hz adapters for redundancy;
    Output: 12 VDC, 100 mA nominal, additional 320 mA while switching
    Dimensions 1.75"H (1U) x 17.25"W x 10.5"D (4.4 x 43.8 x 26.7 cm)
    Weight 5 lb. (2.3 kg) excluding external power supplies


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
