Prepolished Multimode 62.5-Micron Fiber Connector, ST

Quick installation 62.5-micron fiber connectors.

FO031-R2

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • No-epoxy, no-polish ceramic-tip fiber connection. Just crimp!?
  • Make instant ceramic-tip fiber connections.

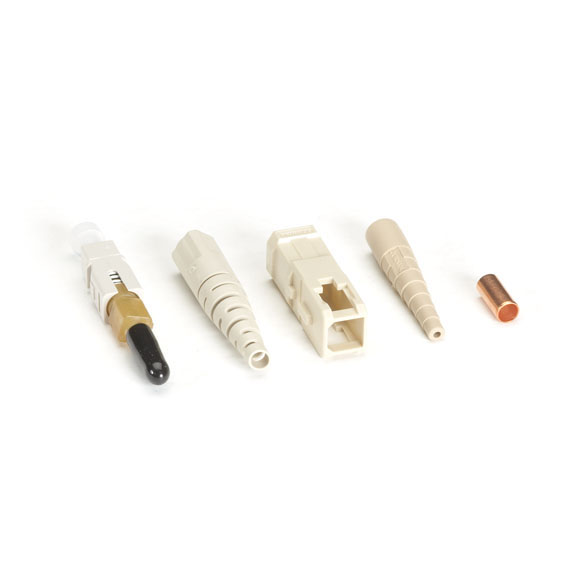

  • Prepolished fiber connectors are comprised of the connector housing, two sleeves, and two compression-hood fittings.
  • Use with the Fiber Connector Tool Kit (order separately) or your own fiber termination tools.


  • Description

    Prepolished Multimode 62.5-Micron Fiber Connector, ST


    Quick Facts

  • No-epoxy, no-polish ceramic-tip fiber connection. Just crimp!?
  • Make instant ceramic-tip fiber connections.
  • Prepolished fiber connectors are comprised of the connector housing, two sleeves, and two compression-hood fittings.
  • Use with the Fiber Connector Tool Kit (order separately) or your own fiber termination tools.

  • Further Details

  • Offer quick installation with no epoxy or polishing needed.
  • Fast termination time makes them perfect for jobs requiring quick turnaround.
  • Compliant with all ANSI and TIA/EIA standards.
  • Require no consumables.

  • Get ready for the easiest fiber connections you've ever made with the Prepolished Fiber Connectors and the Fiber Connector Tool Kit (order separately).

    The rotating cam on the ST® and FC Prepolished Fiber Connectors makes termination quick and smooth.

    All connectors come with a fiber optic stub in the connector tip, which is cemented firmly in place. The stub is polished to a physical-contact (PC) finish. Because the connectors are prepolished, you get the strength of a bonded connection without polishing and epoxy during installation. That makes it easy to get peak performance.

    The connector housing is designed to make matching up the fiber stub and cable easy. Insert a stripped and cleaved fiber cable in the connector, and when you feel little or no resistance, the fiber and stub and are matched up correctly. Then just crimp!


    This product works with:
    • Fiber Connector Tool Kit
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Prepolished Multimode 62.5-Micron Fiber Connector, ST:

    This product works with:
    • Fiber Connector Tool Kit
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Prepolished Multimode 62.5-Micron Fiber Connector, ST:

    Product Data Sheets


    Connect your Prepolished Multimode 62.5-Micron Fiber Connector, ST with:

    Accessory: FO036-R2

    Prepolished Fiber Connector, Single-Mode, ST

    Prepolished Fiber Connector, Single-Mode, ST

    Accessory: FO041

    Prepolished Fiber Connector, Multimode 50-Micron, ST, Single-Pack

    Prepolished Fiber Connector, Multimode 50-Micron, ST, Single-Pack

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $15.04

    Quantity Available: 261

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.031 lbs.
    HxWxD: 0.25 x 0.25 x 1.5 in.
