Digital Signage > A/V Cables

click photo to enlarge

EVNPS05-0150-MF

Photo may show similar product

Other views

Premium VGA Video Extension Cable, PVC, Male/Female, 150-ft. (45.7-m)

Our most popular cable for all your video runs.

EVNPS05-0150-MF


Lifetime Warranty

Product Highlights

  • Move your VGA monitor up to 100 feet (30.4 m) from your CPU.
  • Connect your monitors to splitters for professional PC-based presentations.
  • Tech Support’s Product of Choice!
  • Guaranteed for life!

  • Description

    Premium VGA Video Extension Cable, PVC, Male/Female, 150-ft. (45.7-m)


    Quick Facts

  • Move your VGA monitor up to 100 feet (30.4 m) from your CPU.
  • Connect your monitors to splitters for professional PC-based presentations.
  • Tech Support’s Product of Choice!
  • Guaranteed for life!

  • Further Details

  • Run multiple CPUs from one monitor by linking them to a switch.
  • Pins 9 and 15 are removed for compatibility with all VGA computers.

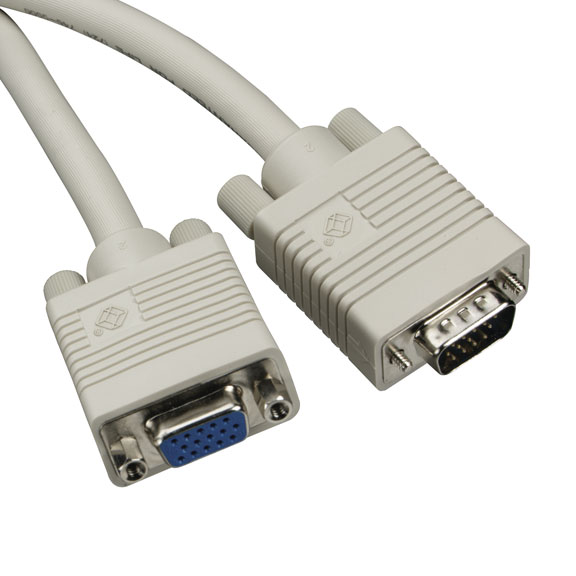

  • Cable features one HD15 female connector and one HD15 male connector. Other gender combinations are available.
  • Triple shielded to extend monitor signals.
  • Each coax wire has a separate drain wire.
  • Thumbscrews for easy connections.
  • Features a PVC jacket.
  • Plenum jackets, 90° hoods, different gender connectors, and multiple other lengths are available. See Similiar Products below.

  • You can make all kinds of connections with Premium VGA Video Extension Cable. For example, connect a remote monitor to a network server. Or you can link a single monitor and several CPUs to a video switch. If your application is truly video intensive, this cable is great for connecting several monitors to a splitter so you can turn a PC-based presentation into a compelling video production. And if you just want to move your CPU to a safe place, our Premium VGA Video Extension Cable is the simple solution you need.

    This cable enables you to put your monitors where you need them—up to 100 feet (30.4 m) away. With a video splitter, you can put your monitor up to 300 feet (91.4 m) from your CPU.

    Why wait any longer to make long-distance video connections? Order this cable today!


    Technical Specifications for Premium VGA Video Extension Cable, PVC, Male/Female, 150-ft. (45.7-m):

    Conductors — Coax: (3) 75-ohm, 28 AWG, tinned copper;
    VGA: (7) 24 AWG, tinned copper
    Hood Assembly — Molded plastic
    Operating Temperature — -4 to +176º F (-20 to +80º C)
    Shielding — Shield: Tinned copper braid;
    Inner tape: Aluminum and Mylar®;
    Outer braid: Tinned copper
    Connectors — (2) HD15


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Premium VGA Video Extension Cable, PVC, Male/Female, 150-ft. (45.7-m):

    Product Data Sheets


    Connect your Premium VGA Video Extension Cable, PVC, Male/Female, 150-ft. (45.7-m) with:

    Accessory: EVNPS09-0003

    Premium VGA Cable with Audio, 3-ft. (0.9-m)

    Premuim VGA Cable with Audio, (2) HD15 Male/(2) 3.5 mm Male, PVC

    Accessory: EVNPS06-0003-FF

    VGA Video Cable with Ferrite Core, Female/Female, 3-ft. (0.9-m)

    VGA Video Cable with Ferrite Core, Female/Female, 3-ft. (0.9-m)
