Power > Data-Line Surge Protection

click photo to enlarge

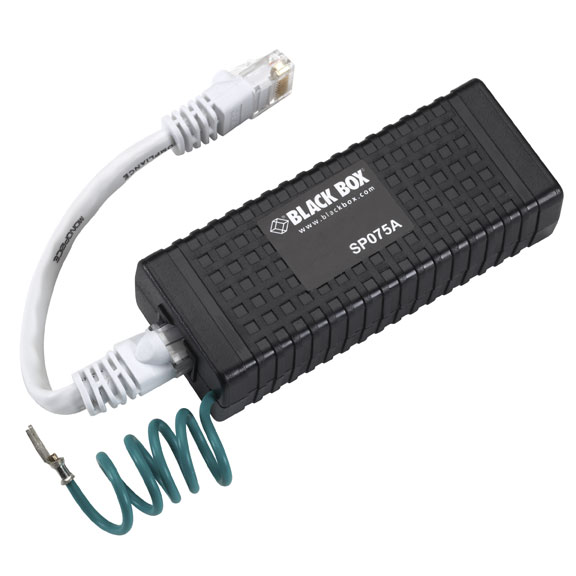

SP075A

Photo may show similar product

Other views

Power over Ethernet Surge Protector, 60-Volt

Protect your wireless Ethernet network from damaging power surges and spikes.

SP075A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • The simple solutions to protect wireless access points from damaging power transients and surges.
  • Protect data lines for both line-to-line and ground-to-line surges.
  • Attach to wireless access points in schools, restaurants, airports, offices—everywhere!

  • Description

    Power over Ethernet Surge Protector, 60-Volt


    Quick Facts

  • The simple solutions to protect wireless access points from damaging power transients and surges.
  • Protect data lines for both line-to-line and ground-to-line surges.
  • Attach to wireless access points in schools, restaurants, airports, offices—everywhere!

  • Further Details

    Accessing a wireless network is becoming as commonplace as drinking a cup of coffee. Wireless access points are being installed in schools, restaurants, airports, offices—almost everywhere!

    And just as you would with a wired network, you need to safeguard these wireless networks from unexpected power surges and spikes.

    That’s why you need Power over Ethernet Surge Protectors. Not only do they protect line-to-line data transmissions, they also protect against ground-to-line surges.

    Models are available for 60-volt and 30-volt power requirements.


    Technical Specifications for Power over Ethernet Surge Protector, 60-Volt:

    Pins 1, 2, 3, and 6:
    Peak Pulse Current — 10/100 Waveform: 132 amps
    Protection — Differential and common mode
    Response Time — <5 ns
    Shunt Capacitance (Maximum) — <25 pF
    Standard Clamping Voltage — 7.5 volts

    Pins 4, 5, 7, and 8:
    Peak Pulse Current — 10/100 Waveform: SP075A: 50 amps;
    SP077A: 103 amps
    Protection — Differential and common mode, line to ground
    Response Time — <5 ns
    Standard Clamping Voltage — 60 volts


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Power over Ethernet Surge Protector, 60-Volt:

    Manuals

    • Power over Ethernet Surge Protector, 60-Volt Manual
      Manual for SP075A (Version 1)


    Connect your Power over Ethernet Surge Protector, 60-Volt with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A TEN YEAR WARRANTY warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $6.50

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $12.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Power over Ethernet Surge Protector, 60-Volt SP075A $64.95

    Power over Ethernet Surge Protector, 30-Volt SP077A $71.95
