Networking > Switches

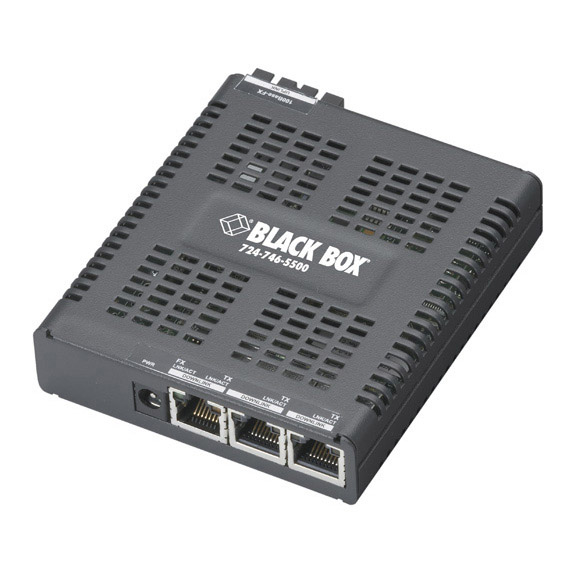

click photo to enlarge

LB1023A-R2

Photo may show similar product

Other views

Port Multiplier, (3) 10-/100-Mbps RJ-45, 1550-nm TX/1310-nm RX, Single-Mode, 40 km, SC

A nimble little switch to add ports at the edge of your network.

LB1023A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Use with the LB1022A-R2 to add three copper ports at both ends of a single-mode, single-strand fiber run, extending 10/100 communications as far as 40 kilometers (24.8 mi.).

  • Description

    Port Multiplier, (3) 10-/100-Mbps RJ-45, 1550-nm TX/1310-nm RX, Single-Mode, 40 km, SC


    Quick Facts

  • Use with the LB1022A-R2 to add three copper ports at both ends of a single-mode, single-strand fiber run, extending 10/100 communications as far as 40 kilometers (24.8 mi.).

  • Further Details

    Use Black Box® Port Multipliers to easily add ports at the edge of your network or for quick network expansion.

    These compact switches have the features you’re looking for—the copper ports support both 10- and 100-Mbps Ethernet and are autosensing for speed and duplex. Auto MDI/MDI-X means you never have to hunt for crossover cables. Just plug-and-play and you’re ready to go!

    Choose the LB1006A-R2 model to quickly add copper ports at the end of a twisted-pair link. Just mount it on the wall next to your RJ-45 Ethernet wall outlet, connect it with a patch cable, and you have three Ethernet ports where there used to be one! A wallmount bracket is included.

    The duplex fiber models (LB1004A-R2–LB1005A-R2, LB1008A-R2, LB1007A-R2, LB1010A-R2, and LB1009A-R2) terminate a fiber run and add three autosensing 10/100 Ethernet ports. They’re the perfect way to install far-flung workstations and Ethernet devices such as IP security cameras at a great distance from your central switches. We offer both multimode and single-mode models—with two of the single-mode models supporting fiber uplinks as far as 60 kilometers (37.2 miles).

    To add three copper ports at both ends of a single-mode, single-strand fiber run, order the model featured here along with the LB1022A-R2, or order the LB1020A-R2/LB1021A-R2 combination. These Port Multipliers enable you to transmit and receive on a single fiber at great distances. The LB1022A-R2/LB1023A-R2 combo, for instance, extends 10/100 communications as far as 40 kilometers (24.8 mi.).

    All Port Multipliers perform store-and-forward switching with 1K MAC addresses, and the fiber models have LinkLoss™ and FiberAlert™ features that alert you via diagnostic LEDs if the fiber link fails.


    Technical Specifications for Port Multiplier, (3) 10-/100-Mbps RJ-45, 1550-nm TX/1310-nm RX, Single-Mode, 40 km, SC:

    Distance (Maximum) — On the uplink port: 40 km (24.8 mi.)
    MAC Addresses — 1024
    Switching Method — Store and forward
    CE Approval — Yes
    Connectors — (1) SC (single-strand), (3) RJ-45
    Power — 100/240 VAC, 50/60 Hz, external autoswitching
    Size — 0.9"H x 3.5"W x 4.4"D (2.3 x 8.9 x 11.2 cm)

    This product works with:
  • Port Multiplier, (3) 10-/100-Mbps RJ-45, 1310-nm TX/-nm 1550-nm RX, Single-Mode, 40 km, SC (LB1022A-R2)
  • GigaBase 350 CAT5e 350-MHz Patch Cable (EVNSL81, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Port Multiplier, (3) 10-/100-Mbps RJ-45, 1550-nm TX/1310-nm RX, Single-Mode, 40 km, SC:


    Connect your Port Multiplier, (3) 10-/100-Mbps RJ-45, 1550-nm TX/1310-nm RX, Single-Mode, 40 km, SC with:

    Accessory: LB1022A-R2

    Port Multiplier, (3) 10-/100-Mbps RJ-45, 1310-nm TX/1550-nm RX, Single-Mode, 40 km, SC

    Port Multiplier, (3) 10-/100-Mbps RJ-45, 1310-nm TX/1550-nm RX, Single-Mode, 40 km, SC
