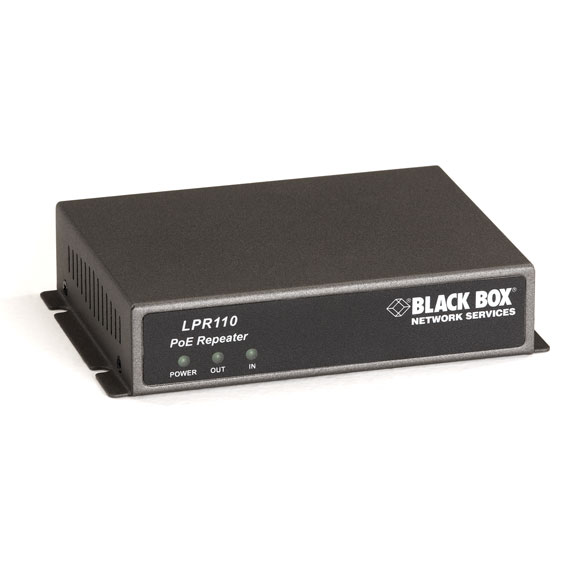

LPR110

Photo may show similar product

Other views

PoE Repeater

Extend PoE data and power up to 300 meters.

LPR110

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Break through the Ethernet 100-meter limit—boost Ethernet and PoE power to 300 meters.
  • Plug-and-play ease of use.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet ports.
  • Auto MDI/MDI-X means you never need a crossover cable.

  • Description

    PoE Repeater


    Quick Facts

  • Break through the Ethernet 100-meter limit—boost Ethernet and PoE power to 300 meters.
  • Plug-and-play ease of use.
  • Autosensing, autonegotiating 10-/100-Mbps Ethernet ports.
  • Auto MDI/MDI-X means you never need a crossover cable.

  • Further Details

    The PoE Repeater acts as a PoE extender, enabling you to extend PoE connections beyond the 100-meter limit to access faraway PoE devices.

    The repeater passes on both data and power, so it needs no separate power supply—add one repeater for an additional 100 meters (328 ft.) or daisychain two repeaters to extend the reach of your PoE an additional 200 meters (656 ft.) on top of the standard PoE distance of 100 meters (328 ft.) for a total reach of 300 meters (984 ft.) Because each repeater uses about 2.5 watts itself, we do not recommend daisychaining beyond two units. Two repeaters daisychained support a PoE PD end device that needs up to 6.49 watts.

    Installation is easy—just plug in the Ethernet cable and go.


    Technical Specifications for PoE Repeater:

    Environmental Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: (2) 5-95%, noncondensing
    CE Approval Yes
    Connectors Ethernet: (2) RJ-45
    Indicators LEDs: (1) Power, (1) OUT, (1) IN
    Power Input: IEEE 802.3af Class 0 (minimum 12.95 watts);
    Output: IEEE 802.3af Class 1 or 2 (maximum 6.49 watts per PoE repeater used);
    Maximum power dissipation: 2.5 watts
    Size 1.1"H x 4.7"W x 3.5"D (2.8 x 12 x 9 cm)

    NOTE: Because each repeater uses about 2.5 watts itself, we do not recommend daisychaining beyond two units.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
