Networking > Media Converters

click photo to enlarge

LPM601A

Photo may show similar product

Other views

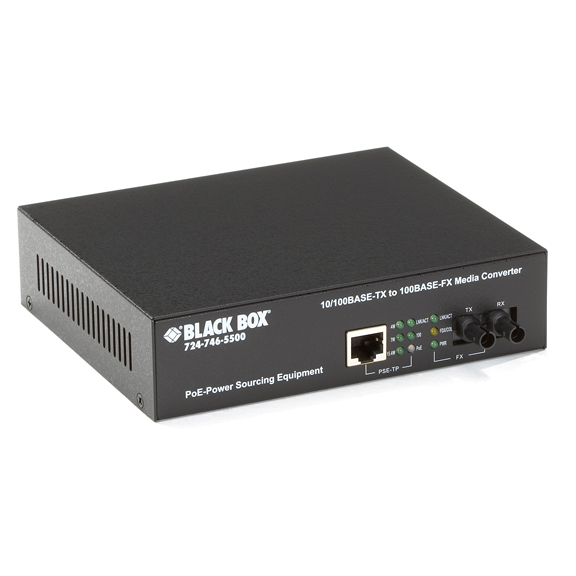

PoE PSE Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Multimode, ST, 2 km

Add power to your network link, while extending your network by as much as 2 kilometers.

LPM601A


One year Warranty

Product Highlights

  • Get powered, and extend your network up to 2 kilometers (1.2 mi.) over fiber.
  • Convert 10-/100-Mbps copper cabling to 100-Mbps fiber optic cabling.
  • Undercurrent and overcurrent detection and load sensing.

  • Description

    PoE PSE Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Multimode, ST, 2 km


    Quick Facts

  • Get powered, and extend your network up to 2 kilometers (1.2 mi.) over fiber.
  • Convert 10-/100-Mbps copper cabling to 100-Mbps fiber optic cabling.
  • Undercurrent and overcurrent detection and load sensing.

  • Further Details

    Constrained by the distance limits of PoE over copper? Incorporate fiber into your network!

    This PoE PSE Media Converter not only enables you to connect copper cables to long-distance fiber data links, it also safely powers compatible devices plugged in on the copper side.

    Fully compliant with the 802.3af Power over Ethernet (PoE) standard, the converter functions as power source equipment (PSE) to provide -48 VDC power via copper wiring to access points, cameras, and similar devices in areas without nearby power outlets.

    For equipment protection, it offers overcurrent and undercurrent detection, as well as fault protection input and power monitoring. It also has powered device signature sensing to detect when a 802.3af compliant device is connected downstream.

    Plus, link-fault passthrough and far-end fault detection features keep you from sending valuable data across invalid links.

    NOTE: For fiber connections up to 20 kilometers (12 mi.), order the single-mode model.

    For distances up to 100 km (62.1 mi.), call our FREE Tech Support.


    Technical Specifications for PoE PSE Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Multimode, ST, 2 km:

    Flow Control — 802.3x for full-duplex; backpressure for half-duplex
    Forwarding Rate — 100 Mbps: 148,800 pps;
    10 Mbps: 14,880 pps
    CE Approval — Yes
    RoHS — Yes
    Connectors — Copper side: (1) RJ-45;
    Fiber side: (1) pair of ST
    Power — Input: 100–240 VAC, 50–60 Hz, autosensing;
    Consumption: 24 watts
    Size — 1.6"H x 6.25"W x 5.25"D (4.1 x 15.9 x 13.3 cm)
    NOTE: For fiber connections up to 20 kilometers (12 mi.), order the single-mode model.

    For distances up to 100 km (62.1 mi.), call our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
