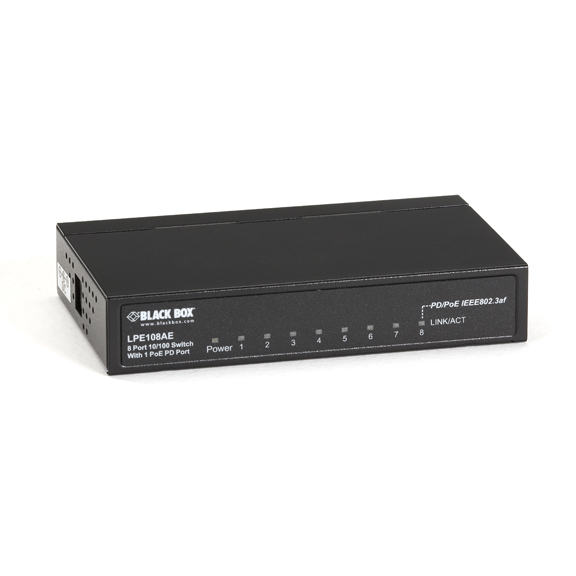

LPE108AE

Photo may show similar product

Other views

PoE PD Switch, Unmanaged, 10BASE-T/100BASE TX, 8-Port

Affordable PoE network extension.

LPE108AE

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • 8-Port 10/100-Mbps autonegotiating switch
  • Port 8 has a built IEEE 802.3af Power Device (PD) feature that enables the switch to get power from a PSE device over ordinary CAT5 cable.
  • Palm-sized with durable metal case.


  • Description

    PoE PD Switch, Unmanaged, 10BASE-T/100BASE TX, 8-Port


    Quick Facts

  • 8-Port 10/100-Mbps autonegotiating switch
  • Port 8 has a built IEEE 802.3af Power Device (PD) feature that enables the switch to get power from a PSE device over ordinary CAT5 cable.
  • Palm-sized with durable metal case.

  • Further Details

  • Supports store-and-forward switching methods.
  • Includes IEEE 802.3x flow control for full-duplex and backpressure flow control for half-duplex.
  • Provides non-blocking and non-head-of-line blocking full wire-speed forwarding.
  • Auto MDI/MDI-X on all copper ports.


  • Technical Specifications for PoE PD Switch, Unmanaged, 10BASE-T/100BASE TX, 8-Port:

    Buffer 768 kbps
    Environmental Operating temperature: 32 to 131° F (0 to 55° C);
    Operating humidity: 10 to 90% noncondensing
    MAC Addresses 1K
    Standards IEEE 802.3af, 802.3 10BASE-T, 802.3u IEEE 802.3u 100BASE-TX, 802.3x
    CE Approval Yes
    RoHS Yes
    Connectors (8) RJ-45; Port 8 is a PoE PD Port
    Power Consumption From inline PoE injector; 6 watts maximum
    Size 0.9"H x 5.1"W x 3"D (2.4 x 13 x 7.7 cm)
    Weight 0.8 lb. (0.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for PoE PD Switch, Unmanaged, 10BASE-T/100BASE TX, 8-Port:

    Manuals

    • -Port PoE PD Switch (Unmanaged, 10BASE-T/100BASE-TX) Manual
      Manual for the LPE108AE (Version 1)
