LPDG708A

Photo may show similar product

Other views

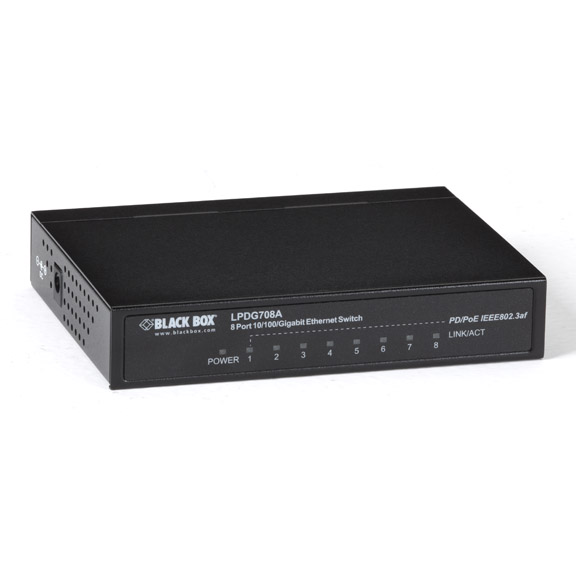

PoE PD Switch, Unmanaged, 10BASE-T/100BASE-TX/1000BASE-T, 8-Port

Affordable PoE network extension.

LPDG708A

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • 8-Port 10-100-1000-Mbps autonegotiating switch
  • Port 8 has a built-in IEEE 802.3af Power Device (PD) feature that enables the switch to get power from a PSE device over ordinary CAT5 cable.
  • Palm-sized with durable metal case.


  • Further Details

  • Supports store-and-forward switching methods.
  • Includes IEEE 802.3x flow control for full-duplex and backpressure flow control for half-duplex.
  • Provides non-blocking and non-head-of-line blocking full wire-speed forwarding.
  • Auto MDI/MDI-X on all copper ports.


  • Buffer 768 kbps
    Environmental Operating temperature: 32 to 131° F (0 to 55° C);
    Operating humidity: 10 to 90% noncondensing
    MAC Addresses 1K
    Standards IEEE 802.3af, 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, 802.3x Flow Control
    CE Approval Yes
    RoHS Yes
    Connectors (8) RJ-45; Port 8 is a PoE PD Port feature
    Power Consumption From inline PoE injector; 6 watts maximum
    Size 0.9"H x 5.1"W x 3"D (2.4 x 13 x 7.7 cm)
    Weight 0.8 lb. (0.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • PoE PD Switch (Unmanaged, 10BASE-T/100BASE-TX/1000BASE-T) User Manual
      User Manual for the LPDG705A & LPDG708A (Version 3)

    Black Box Explains

    Videos


    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The PoE PD Switch, Unmanaged, 10BASE-T/100BASE-TX/1000BASE-T, 8-Port comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    PoE PD Switch, Unmanaged, 10BASE-T/100BASE TX, 8-Port LPE108AE $140.35

    PoE PD Switch, Unmanaged, 10BASE-T/100BASE-TX/1000BASE-T, 5-Port LPDG705A $186.80

    10/100 PoE Web Smart Switch, 8-Port LPB708A $350.45

    10/100 PoE Web Smart Switch, 16-Port LPB716A $582.75

    10/100 PoE Web Smart Switch, 24-Port LPB724A $873.60

    Gigabit PoE Web Smart Switch, 16-Port LPBG716A $932.20

    Gigabit PoE Web Smart Switch, 24-Port LPBG724A $1,223.10



    Add to Cart

    Price: $210.05

    Quantity Available: 35

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 1.468 lbs.
    HxWxD: 3.6 x 4.75 x 7.75 in.
