Networking > PoE

click photo to enlarge

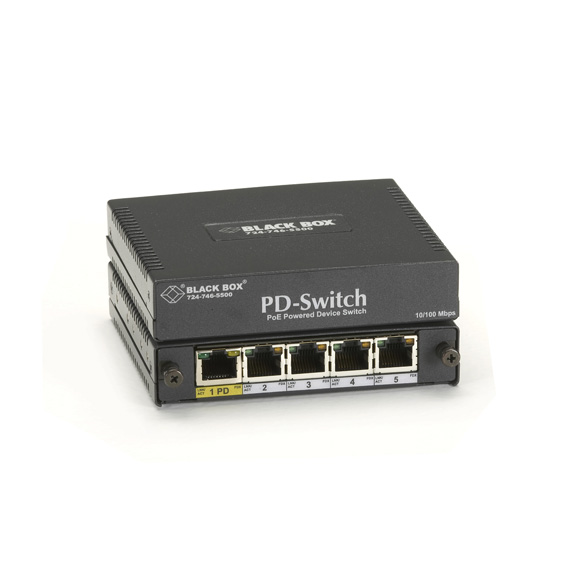

LPD100A

Photo may show similar product

Other views

PoE PD Switch, (5) 10/100BASE-T

Power over Ethernet plus fiber options make this the perfect switch for your network’s edge.

LPD100A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extend your network with fiber.
  • This compact Power over Ethernet (PoE) Powered Device (PD) switch is perfect for your network’s edge.
  • Choose from a wide range of port options, including single-strand fiber.

  • Description

    PoE PD Switch, (5) 10/100BASE-T


    Quick Facts

  • Extend your network with fiber.
  • This compact Power over Ethernet (PoE) Powered Device (PD) switch is perfect for your network’s edge.
  • Choose from a wide range of port options, including single-strand fiber.

  • Further Details

  • Use fiber ports to extend your network up to 100 kilometers (62 miles).
  • Use copper ports to increase network port density.
  • Single-strand fiber models transmit and receive on a single fiber, enabling you to maximize use of your fiber infrastructure.
  • All copper ports are autosensing 10-/100-Mbps Ethernet with MDI/MDI-X.
  • Receive power from a PoE PSE device on Port 1.
  • Port 2 supports high-priority VoIP packets.
  • Diffserv/TOS IP packet prioritization on all ports for QoS prioritization.
  • Fiber ports provide notification of link loss at the far end of the fiber.
  • Include broadcast storm protection.
  • Support 1916-byte packet size.


  • Technical Specifications for PoE PD Switch, (5) 10/100BASE-T:

    CE Approval — Yes
    Power — Inline PoE Power injector
    Size — 1.6"H x 4.8"W x 7.3"D (4.1 x 12.2 x 18.5 cm)
    Weight — 1.8 lb. (0.8 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for PoE PD Switch, (5) 10/100BASE-T:

    Product Data Sheets


    Connect your PoE PD Switch, (5) 10/100BASE-T with:

    Accessory: LFP104

    SFP, 155-Mbps Fiber, 850-nm Multimode, LC, 2 km

    SFP, 155-Mbps Fiber, 850-nm Multimode, LC, 2 km

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A SIX YEAR WARRANTY warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $29.60

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $59.19
