Networking > Media Converters


click photo to enlarge

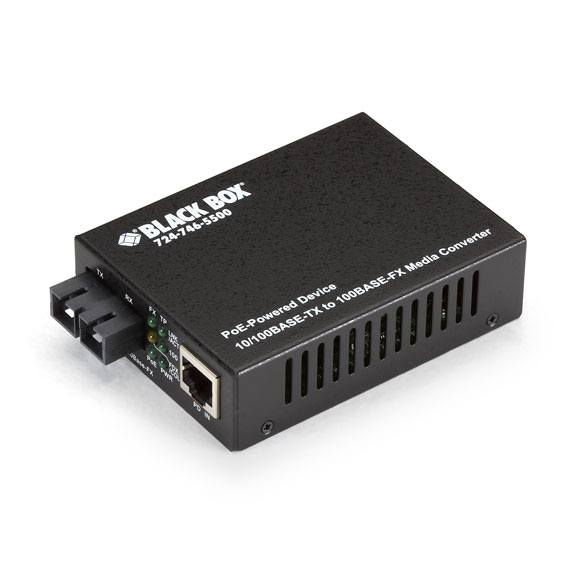

LPD502A

Photo may show similar product

Other views

PoE Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Single-Mode, SC

The copper-to-fiber converter that gets its power over Ethernet.

LPD502A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Translate 10-/100-Mbps copper media to 100-Mbps fiber optic connections.
  • Connect to PoE switches, mid-span hubs, or other 802.3af power source equipment (PSE).
  • Work as powered devices (PD) that receive their power from the spare pairs of copper data cable.


  • Description

    PoE Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Single-Mode, SC


    Quick Facts

  • Translate 10-/100-Mbps copper media to 100-Mbps fiber optic connections.
  • Connect to PoE switches, mid-span hubs, or other 802.3af power source equipment (PSE).
  • Work as powered devices (PD) that receive their power from the spare pairs of copper data cable.

  • Further Details

  • Link fault passthrough enhances the integrity of the copper and fiber links.
  • Far-end fault detection keeps data from being sent over an invalid link.
  • Easy to configure with DIP switch.
  • Multimode and single-mode models.
  • RoHS compliant.

    Top performance in a compact chassis.

    Bridge long-distance Fast Ethernet fiber optic segments with Ethernet or Fast Ethernet copper cabling—all without the need for a local power supply.

    Because the converter is compatible with 802.3af PoE standard, it draws its power via UTP cable connected to a PoE PSE, such as our PoE L2 Managed Gigabit Ethernet Switch (LPB200A). This setup makes the converter ideal for remote areas of a network without AC power outlets.

    This product works with:
  • Single-Strand Single-Mode PoE PD WDM Media Converters (LPD506A–LPD507A).
  • PoE L2 Managed Gigabit Ethernet Switch (LPB200A).
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for PoE Media Converter, 10BASE-T/100BASE-TX to 100BASE-FX, Single-Mode, SC:

    Environmental Operating temperature: 32 to 122° F (0 to 50° C);
    Humidity: 5 to 90% noncondensing
    Flow Control 802.3x for full-duplex; backpressure for half-duplex
    Forwarding Rate 100 Mbps: 148,800 pps;
    10 Mbps: 14,880 pps
    CE Approval Yes
    Connectors Copper side: (1) RJ-45;
    Fiber side: (1) pair of SC, ST, or LC
    Indicators LEDs: (1) Power, (1) PoE, (1) TP Link/Act, (1) FX Link/Act, (1) FDX/COL
    Power Requires 1 A at +5 VDC AC/DC adapter or 60 mA at -48 VDC from 802.3af PSE or PoE
    Size 1"H x 2.7"W x 3.7"D (2.5 x 6.9 x 9.4 cm)
    This product works with:
  • Single-Strand Single-Mode PoE PD WDM Media Converters (LPD506A–LPD507A).
  • PoE L2 Managed Gigabit Ethernet Switch (LPB200A).
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
