Cabinets & Racks > Full Size IT Cabinets

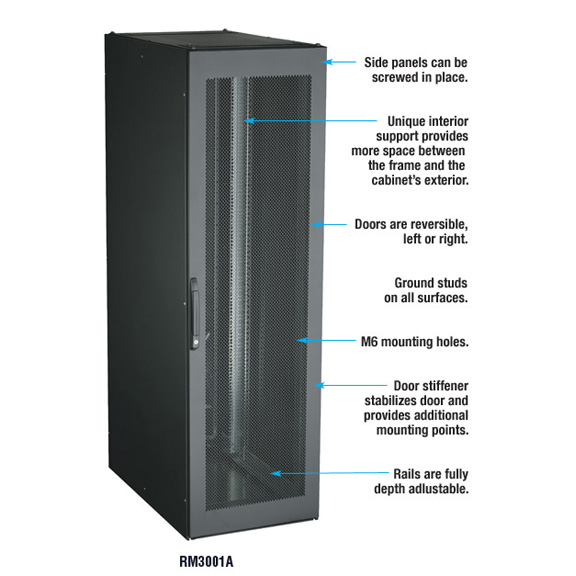

click photo to enlarge

RM3001A

Photo may show similar product

Other views

Performance Plus Server Cabinets, Mesh Front and Mesh Split Rear Door, 78"H x 24"W x 36"D, with Sides

Extraordinarily robust cabinets with the features your modern data center needs.

RM3001A


Lifetime Warranty

Product Highlights

  • Weight capacity of 2000 pounds; unlike other cabinets, weight capacity is not affected by rail position.
  • Mesh front and mesh split rear doors provide maximum ventilation to your hot CPUs.
  • Great for blade servers!
  • Unique interior support provides more space between the frame and the cabinet’s exterior.
  • Server cabinets with 40" depths and our Extra Wide Server cabinets are also available.
  • Guaranteed for life!

  • Description

    Performance Plus Server Cabinets, Mesh Front and Mesh Split Rear Door, 78"H x 24"W x 36"D, with Sides


    Quick Facts

  • Weight capacity of 2000 pounds; unlike other cabinets, weight capacity is not affected by rail position.
  • Mesh front and mesh split rear doors provide maximum ventilation to your hot CPUs.
  • Great for blade servers!
  • Unique interior support provides more space between the frame and the cabinet’s exterior.
  • Server cabinets with 40" depths and our Extra Wide Server cabinets are also available.
  • Guaranteed for life!

  • Further Details

  • Mesh split rear doors provide ventilation.
  • Torsion free for strength and rigidity.
  • Doors and sides are supported by the top and bottom frames.
  • Unique, multifold rails provide many internal mounting surfaces and mounting points, and are fully adjustable.
  • Rails feature M6 mounting holes.
  • Door stiffener stabilizes door and provides additional mounting points.
  • Doors and side panels secure to the outside of the top and bottom frames, providing maximum access to the inside of the cabinet.
  • Side panels can be screwed in place.
  • Seismic rated to Zone 3 according to Telcordia GR-63-CORE (NEBS).
  • Ground studs on all surfaces.


  • Black Box® Performance Plus Server Cabinets feature unique internal rails that double as a frame. This construction provides extraordinary support plus it gives ample space for cabling and ventilation.

    The upright rails’ Z-shaped multifold profile offers multiple mounting surfaces for rackmounting equipment and for mounting zero U accessories such as power strips. The rails are fully depth adjustable even in a bayed multicabinet installation. External cabinet surfaces such as doors and side panels fasten to the upper and lower frame and don’t affect load-bearing capacity.

    Capacity is something this cabinet has a lot of! It holds an amazing 2000 pounds regardless of where you position the rails. Compare that with some other cabinets that claim to hold 2000 pounds but do so only if the rails are left in their original configuration.

    Doors hinge left or right and feature a door stiffener for extra stability and additional mounting surfaces.

    Performance Plus Server Cabinets feature mesh front doors and mesh split rear doors to provide maximum ventilation for hot CPUs—even blade servers. The doors have 64.5% open area, exceeding server OEM vent requirements. With the addition of the Enclosure Blower, Performance Plus Cabinets provide the maximum ventilation available in a cabinet. Choose from a standard 36" deep cabinet or a 40" deep cabinet to accommodate your extra-deep servers.


    Technical Specifications for Performance Plus Server Cabinets, Mesh Front and Mesh Split Rear Door, 78"H x 24"W x 36"D, with Sides:

    Exterior Height — 78"
    Exterior Width — 24"
    Exterior Depth — 36"
    Rack Units — 42U
    Weight — 310 lb.
    Weight Capacity — 2000 lb.
    NOTE: For additional cooling options, call our FREE Tech Support.

    These products work with:
  • Performance Plus Cabinet Tool-less Shelf
  • Performance Plus Cabinet Roof-Mounted Fan Tray
  • Performance Plus Cabinet Support Brackets
  • Performance Plus Cabinet Baying Kit
  • Performance Plus Cabinet Casters
  • Performance Plus Cabinet Mounting Plates
  • Enclosure Blower
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
