RM3006A

Photo may show similar product

Other views

Performance Plus Network Cabinet with No Sides (Smoked PLEXIGLAS Front Door, Mesh Split Rear Door), 78"H x 24"W x 40"D

Many configurations are possible with this data center cabinet.

RM3006A

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Performance Plus Network Cabinets feature smoked PLEXIGLAS® front doors and mesh split rear doors.
  • Weight capacity is 2000 pounds and, unlike other cabinets, weight capacity is not affected by rail position.
  • Our 40"D cabinet has more usable depth than most 42"D cabinets do.
  • Doors and sides are supported by the top and bottom frames.
  • Guaranteed for life!


  • Further Details

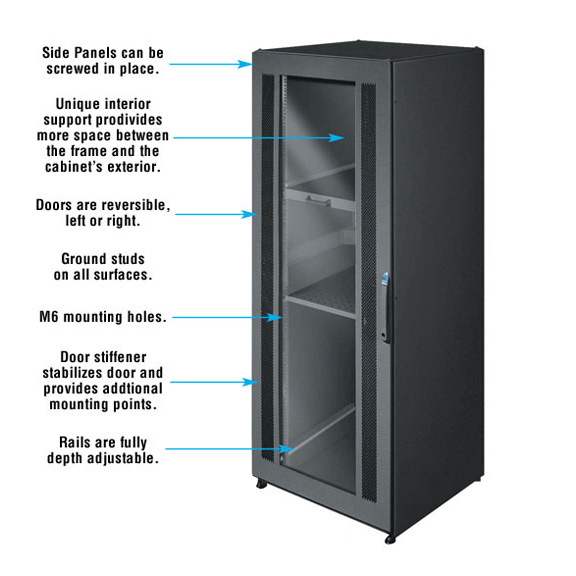

  • Unique multifold rails provide many internal mounting surfaces and mounting points.
  • Doors and side panels secure to the outside of the top and bottom frames, providing maximum access to the inside of the cabinet.
  • Seismic rated to Zone 3 according to Telcordia GR-63-CORE (NEBS) compliance standards for strength and rigidity.

  • BLACK BOX® Performance Plus Network Cabinets feature unique internal rails that double as a frame. This construction provides extraordinary support plus it gives ample space for cabling and ventilation.

    The upright rails' Z-shaped multifold profile offers multiple mounting surfaces for rackmounting equipment and for mounting zero U accessories such as power strips. The rails are fully depth adjustable even in a bayed multicabinet installation. External cabinet surfaces such as doors and side panels fasten to the upper and lower frame and don't affect load-bearing capacity.

    And capacity is something this cabinet has a lot of! It holds an amazing 2000 pounds regardless of where you position the rails. Compare that with some other cabinets that claim to hold 2000 pounds but do so only if the rails are left in their original configuration.

    Doors hinge left or right and feature a door stiffener for extra stability and additional mounting surfaces. The PLEXIGLAS® front door has perimeter perforations for ventilation.

    Exterior Height 78
    Exterior Width 24
    Exterior Depth RM3004A-RM3005A: 36";
    RM3006A-RM3007A: 40
    Rack Units 42U
    Weight RM3004A: 245 lb.;
    RM3005A: 310 lb.;
    RM3006A: 259 lb.;
    RM3007A: 315 lb.
    Weight Capacity 3000 lb.
    NOTE: For additional cooling options, call our FREE Tech Support.

    These products work with:
  • Performance Plus Cabinet Tool-less Shelf
  • Performance Plus Cabinet Roof-Mounted Fan Tray
  • Performance Plus Cabinet Support Brackets
  • Performance Plus Cabinet Baying Kit
  • Performance Plus Cabinet Casters
  • Performance Plus Cabinet Mounting Plates
  • Cage Nuts
  • Enclosure Blower
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.
