Datacom > Extenders and Line Drivers


click photo to enlarge

ME192A

Photo may show similar product

Other views

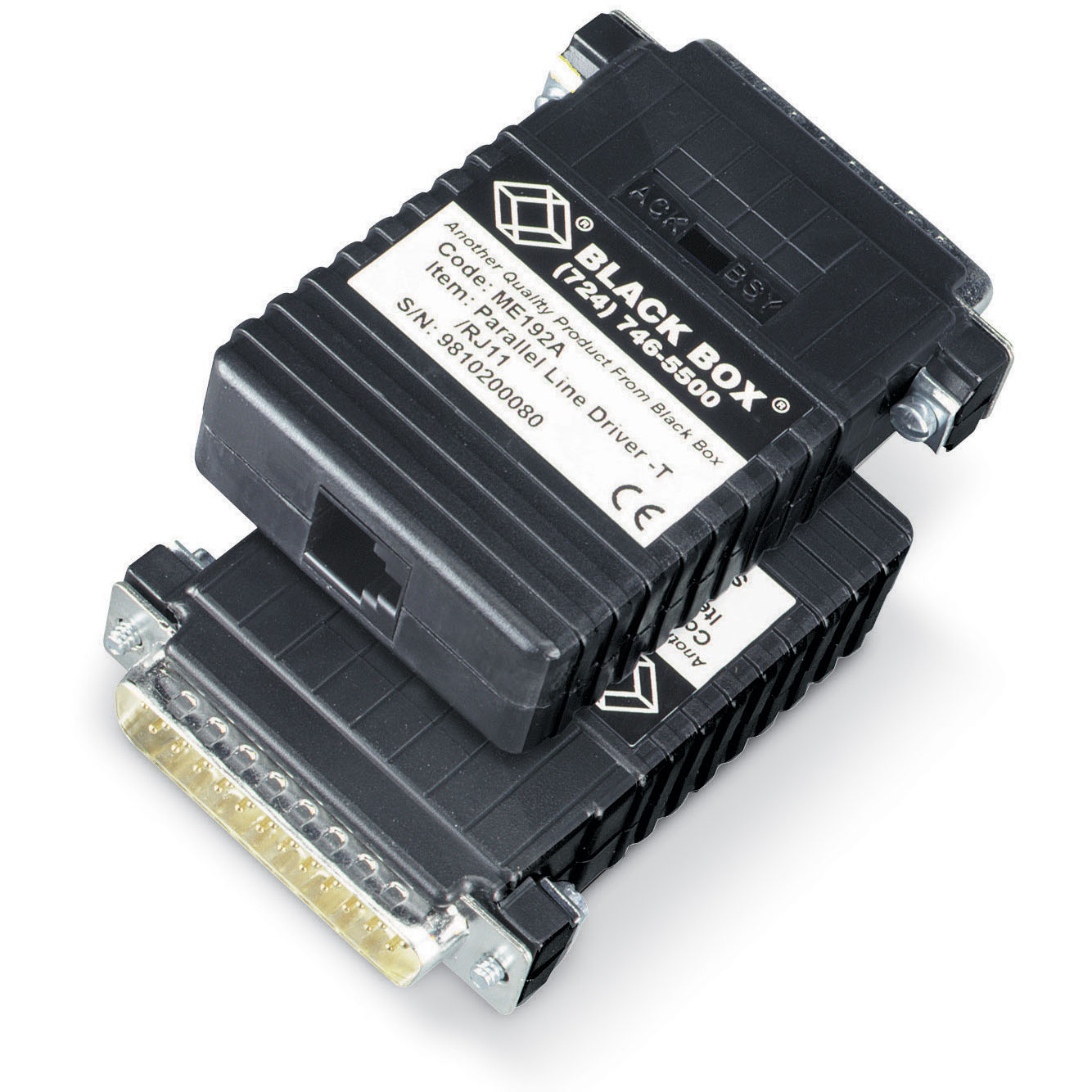

Parallel Line Driver–Transmitter, RJ-11, DB25 Male

Send parallel data up to 2000 feet over one twisted pair.

ME192A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Send your data up to 2000 feet (609.6 m).
  • Adapt to a wide variety of parallel printers.
  • Selectable BUSY/ACKNOWLEDGE flow control.


  • Description

    Parallel Line Driver–Transmitter, RJ-11, DB25 Male


    Quick Facts

  • Send your data up to 2000 feet (609.6 m).
  • Adapt to a wide variety of parallel printers.
  • Selectable BUSY/ACKNOWLEDGE flow control.

  • Further Details

  • Interface powered—it even works with “low-power“ ports by transferring power from the PC.

    The BLACK BOX® Parallel Line Driver adapts to a wide variety of parallel printers. No separate power supply is necessary—the line driver draws its power from both parallel interfaces. It even works with “low-power“ parallel printer ports by transferring power from the PC.

    These products work with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A)
    Questions? Contact Tech Support.

  • Technical Specifications for Parallel Line Driver–Transmitter, RJ-11, DB25 Male:

    Line Interface — RJ-11
    Interface — DB25 parallel
    Speed (Maximum) — 5 kbps parallel
    CE Approval — Yes
    Connectors — Parallel port: (1) DB25 M;
    Line side: (1) RJ-11
    Power — From the interface, 3–7 VDC; Pins 1, 17, 13, 14, or 16
    > Size — 0.7“H x 2.1“W x 2.7“D (1.8 x 5.3 x 6.9 cm)
    These products work with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A)
    Questions? Contact Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
