Networking > Switches

click photo to enlarge

LB8415A-US

Photo may show similar product

Other views

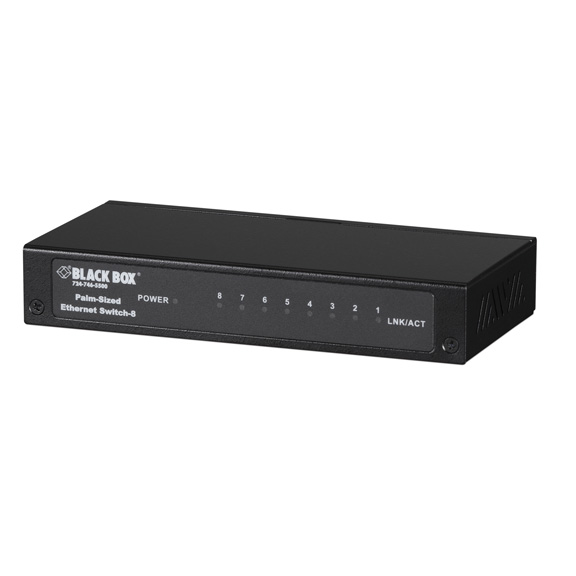

Palm-Sized Ethernet Switch, 8-Port, (7) RJ-45, (1) ST (Multimode. 2 km)

The little switch that could.

LB8415A-US

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • This tiny 10-/100-Mbps switch comes with many port and power choices.
  • Compact size saves valuable space in cramped offices and workspaces.

  • Description

    Palm-Sized Ethernet Switch, 8-Port, 110 VAC Wallmount Power Supply, (7) RJ-45, (1) ST (Multimode. 2 km)


    Quick Facts

  • This tiny 10-/100-Mbps switch comes with many port and power choices.
  • Compact size saves valuable space in cramped offices and workspaces.

  • Further Details

  • Plug-and-play installation makes network integration easy—even for amateurs!
  • 10-/100-Mbps autonegotiating and autosensing copper ports plus optional 100-Mbps fiber uplink ports make them a solid choice for migrating to Fast Ethernet.
  • Auto MDI/MDI-X on all copper ports eliminates the need for crossover cables.
  • Nonblocking switch architecture makes these units ideal for video and other data-intensive applications.
  • Store-and-forward switching technology reduces error packet propagation.
  • Get the 5-port model for smaller workgroups; get the 8-port model for larger workgroups.
  • Choose a 100–240-VAC external power supply or 110 VAC wallmount power supply.

    BLACK BOX® Palm-Sized Ethernet Switches are just what you need to get full-featured 10-/100-Mbps switching without breaking your budget or wasting space.

    Just look at all the big, big things this little switch can do!

    The 5-port and 8-port models each measure 1.1" high, 6.3" wide, and 3.2" deep. You can put them on a desk, on top of another box, even hide them behind your PC or Mac®. Wherever you put them, you’ll save valuable space.

    All RJ-45 ports are autosensing and autonegotiating 10/100 Mbps, making Palm-Sized Ethernet Switches a perfect choice for networks running 10 Mbps, 100 Mbps, or a mixture of the two. Best of all, you don’t have to configure any ports to match device speed—just plug the switches into your network.

    Choose a switch with a 100-Mbps fiber uplink port to connect a workgroup to a fiber backbone. Multimode fiber ports support distances of up to 2 km (1.2 mi.) and single-mode fiber ports support distances of 20 km (12 mi.). Multimode models are available with ST® or SC connectors; single-mode models have SC connectors.

    Both models use a nonblocking switching architecture that enables your network to handle almost any data-intensive application. Accounting office with spreadsheets? Video production company with imaging and multimedia applications? No problem for this switch!

    Don’t worry about network efficiency or speed either. Store-and-forward switching technology eliminates error propagation, and wire-speed forwarding makes sure your network functions as quickly as you need it to.

    Save—don’t sacrifice—with Palm-Sized Ethernet Switches from Black Box.

    This product works with:
  • GigaBase® 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC, Beige (EVNSL85)
  • Premium Ceramic, Multimode 62.5-Micron Fiber Optic Patch Cable (EFN110)
  • Single-Mode, 8.5-Micron Duplex Fiber Optic Cable, SC–SC (EFN5010)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Palm-Sized Ethernet Switch, 8-Port, (7) RJ-45, (1) ST (Multimode. 2 km):

    Compliance — IEEE 802.3; FCC, Part 15
    Distance (Maximum) — UTP cable (Category 3, 4, and 5): 328 ft. (100 m)
    Forwarding Rate — 10 Mbps: 14,880 pps;
    100 Mbps: 148,800 pps
    Switching Method — Store and forward
    CE Approval — Yes
    Indicators — Per unit: (1) Power;
    Per port: (1) LNK/ACT
    Power — 110-VAC, 50–60-Hz, wallmount power supply
    Size — 1.1"H x 6.3"W x 3.2"D (2.8 x 16 x 8.1 cm)
    Weight — 0.9 lb. (0.4 kg)
    This product works with:
  • GigaBase® 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC, Beige (EVNSL85)
  • Premium Ceramic, Multimode 62.5-Micron Fiber Optic Patch Cable (EFN110)
  • Single-Mode, 8.5-Micron Duplex Fiber Optic Cable, SC–SC (EFN5010)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
