Networking > Switches

click photo to enlarge

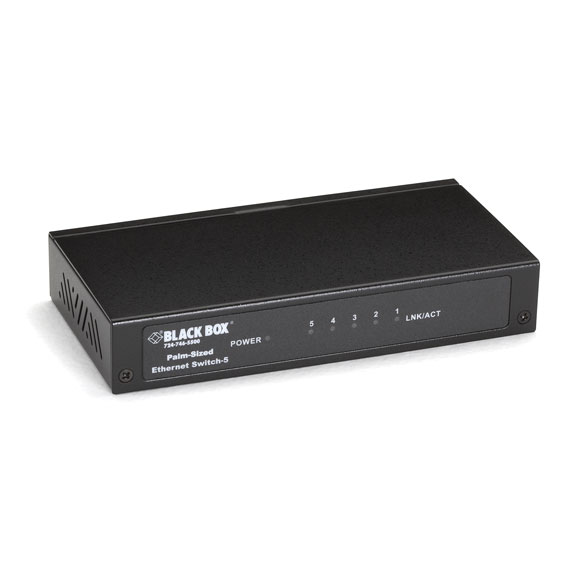

LB8406A-US

Photo may show similar product

Other views

Palm-Sized Ethernet Switch, 5-Port, (4) RJ-45, (1) ST (Multimode, 2 km)

The little switch that could.

LB8406A-US

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Compact size saves valuable space in cramped offices and workspaces.
  • more...


    Description

    Palm-Sized Ethernet Switch, 5-Port, (4) RJ-45, (1) ST (Multimode, 2 km), 110-VAC Wallmount Power Supply


    Quick Facts

  • Compact size saves valuable space in cramped offices and workspaces.
  • more...

    Further Details

  • Plug-and-play installation makes network integration easy—even for amateurs!
  • 10-/100-Mbps autonegotiating and autosensing copper ports plus optional 100-Mbps fiber uplink ports make them a solid choice for migrating to Fast Ethernet.
  • Auto MDI/MDI-X on all copper ports eliminates the need for crossover cables.
  • Nonblocking switch architecture makes these units ideal for video and other data-intensive applications.
  • Store-and-forward switching technology reduces error packet propagation.
  • Get the 5-port model for smaller workgroups; get the 8-port model for larger workgroups.
  • Choose a 100–240-VAC external power supply or 110 VAC wallmount power supply.

    BLACK BOX® Palm-Sized Ethernet Switches are just what you need to get full-featured 10-/100-Mbps switching without breaking your budget or wasting space.

    Just look at all the big, big things this little switch can do!

    The 5-port and 8-port models each measure 1.1" high, 6.3" wide, and 3.2" deep. You can put them on a desk, on top of another box, even hide them behind your PC or Mac®. Wherever you put them, you'll save valuable space.

    All RJ-45 ports are autosensing and autonegotiating 10/100 Mbps, making Palm-Sized Ethernet Switches a perfect choice for networks running 10 Mbps, 100 Mbps, or a mixture of the two. Best of all, you don't have to configure any ports to match device speed—just plug the switches into your network.

    Choose a switch with a 100-Mbps fiber uplink port to connect a workgroup to a fiber backbone. Multimode fiber ports support distances of up to 2 km (1.2 mi.) and single-mode fiber ports support distances of 20 km (12 mi.). Multimode models are available with ST® or SC connectors; single-mode models have SC connectors.

    Both models use a nonblocking switching architecture that enables your network to handle almost any data-intensive application. Accounting office with spreadsheets? Video production company with imaging and multimedia applications? No problem for this switch!

    Don't worry about network efficiency or speed either. Store-and-forward switching technology eliminates error propagation, and wire-speed forwarding makes sure your network functions as quickly as you need it to.

    Save—don't sacrifice—with Palm-Sized Ethernet Switches from Black Box.

    This product works with:
  • GigaBase® 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC, Beige (EVNSL85)
  • Premium Ceramic, Multimode 62.5-Micron Fiber Optic Patch Cable (EFN110)
  • Single-Mode, 8.5-Micron Duplex Fiber Optic Cable, SC–SC (EFN5010)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Palm-Sized Ethernet Switch, 5-Port, (4) RJ-45, (1) ST (Multimode, 2 km):

    Compliance IEEE 802.3; FCC, Part 15
    Distance (Maximum) UTP cable (Category 3, 4, and 5): 328 ft. (100 m)
    Forwarding Rate 10 Mbps: 14,880 pps;
    100 Mbps: 148,800 pps
    Switching Method Store and forward
    CE Approval Yes
    Indicators Per unit: (1) Power;
    Per port: (1) LNK/ACT
    Power 110-VAC, 50-60-Hz, wallmount power supply
    Size 1.1"H x 6.3"W x 3.2"D (2.8 x 16 x 8.1 cm)
    Weight 0.9 lb. (0.4 kg)
    This product works with:
  • GigaBase® 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC, Beige (EVNSL85)
  • Premium Ceramic, Multimode 62.5-Micron Fiber Optic Patch Cable (EFN110)
  • Single-Mode, 8.5-Micron Duplex Fiber Optic Cable, SC–SC (EFN5010)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Palm-Sized Ethernet Switch, 5-Port, (4) RJ-45, (1) ST (Multimode, 2 km):

    Product Data Sheets

    Black Box Explains


    Connect your Palm-Sized Ethernet Switch, 5-Port, (4) RJ-45, (1) ST (Multimode, 2 km) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $17.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $33.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
