TE162A-R2

Photo may show similar product

Other views

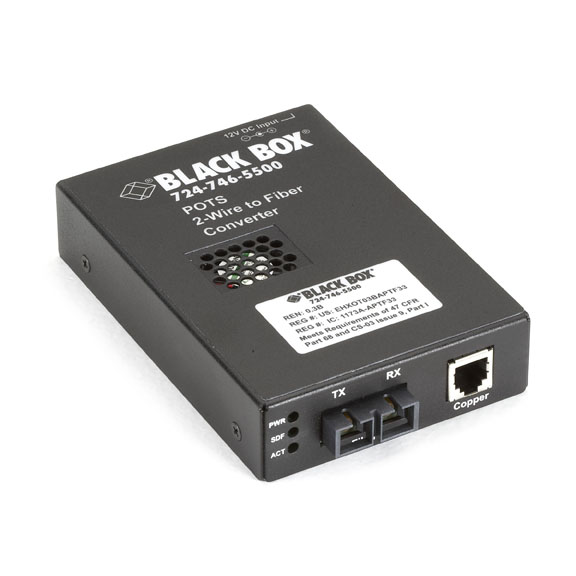

POTS 2-Wire to Fiber Converter, FXS to Multimode SC

Connect your analog phone system to fiber for greater distance.

TE162A-R2

LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Provides extra distance between analog voice communication devices.
  • Links central office (CO) voice signals to distant "Plain Old Telephone Service" (POTS) equipment over fiber.
  • Guaranteed for life!


  • Further Details

  • Extends phone signals up to 2 kilometers (1.2 mi.) over 1300-nm multimode fiber.
  • Connects to a telephone line or PBX, providing telephone emulation as a line-side FXS.
  • Pair with TE163A-R2 to establish your FXO-side connection and emulate the CO.
  • Supports audio transmission and Caller ID capabilities.


  • "
    Distance (Maximum) Multimode fiber side: 2 km (1.2 mi.);
    RJ-11C side: 5 km (3.1 mi.)
    Input Power -14.0 dBm
    Link Budget 11.0 dB
    RX Sensitivity -31.0 dBm
    TX TX Power -19.0 dBm to -14.0 dBm
    Approvals CE, RoHS
    Connectors (1) RJ-11C, (1) pair of SC
    Indicators (3) LEDs: Fiber link on/off; Active in use/ringing; Power on/off
    Power Output: 12 VDC, 0.6 A from external power supply
    Dimensions 1"H x 3.25"W x 4.7"D (2.5 x 8.25 x 11.9 cm)
    Weight 2 lb. (0.9 kg)
    "

    For a standard loop extender application, this FXS unit must be paired with:
    • POTS 2-Wire to Fiber Converter, FXO to Multimode SC (TE163A-R2) Questions? Contact our FREE Tech Support. NOTE: For an automatic ring-down (ARD) application, use two POTS 2-Wire to Fiber Converter, FXO to Multimode SC (TE163A-R2) units instead of this FXS unit.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Manuals

    • POTS to Fiber Converter User Manual
      User Manual for the TE160A-R2, TE161A-R2, TE162A-R2, TE163A-R2, TE164A-R2, and TE165A-R2 (1)

    Product Data Sheets

    Application Diagrams


    Accessory: TE163A-R2

    POTS 2-Wire to Fiber Converter, FXO to Multimode SC

    POTS 2-Wire to Fiber Converter, FXO to Multimode SC

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The POTS 2-Wire to Fiber Converter, FXS to Multimode SC comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    POTS 2-Wire to Fiber Converter, FXS to Single-Mode SC TE164A-R2 $1,481.65

    POTS 2-Wire to Fiber Converter, FXO to Single-Mode SC TE165A-R2 $1,481.65

    POTS 2-Wire to Fiber Converter, FXS to Multimode ST TE160A-R2 $1,183.70

    POTS 2-Wire to Fiber Converter, FXO to Multimode ST TE161A-R2 $1,183.70
