Datacom > Converters


click photo to enlarge

TE165A-R2

Photo may show similar product

Other views

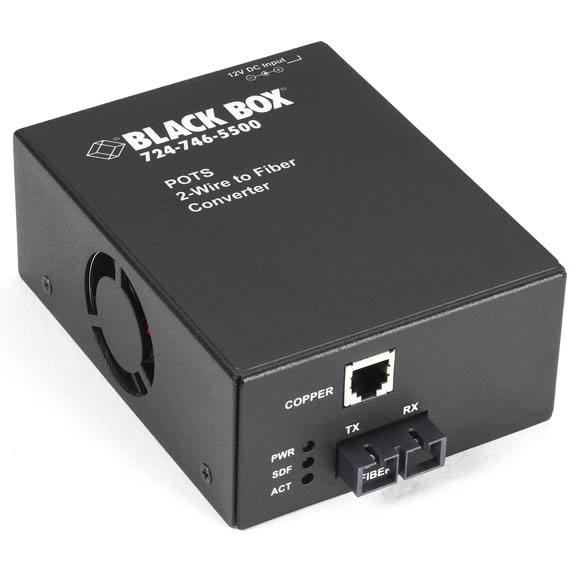

POTS 2-Wire to Fiber Converter, FXO to Single-Mode SC

Connect your analog phone system to fiber for greater distance.

TE165A-R2

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Links remotely located "Plain Old Telephone Service" (POTS) equipment over fiber for receiving central office (CO) voice signals.
  • Guaranteed for life!


  • Description

    POTS 2-Wire to Fiber Converter, FXO to Single-Mode SC


    Quick Facts

  • Links remotely located "Plain Old Telephone Service" (POTS) equipment over fiber for receiving central office (CO) voice signals.
  • Guaranteed for life!

  • Further Details

  • Provides extra distance between analog voice communication devices.
  • Extends phone signals up to 20 kilometers (12.4 mi.) over 1310-nm single-mode fiber.
  • Works as FXO device for telephone devices in distant offices.
  • Emulates central office (CO) or PBX equipment from the FXS side.
  • Supports audio transmission and Caller ID capabilities.
  • Pair with our TE164A-R2 for a standard loop extender application.
  • Or order two converters for an automatic ring-down (ARD) application.


  • Technical Specifications for POTS 2-Wire to Fiber Converter, FXO to Single-Mode SC:

    "
    Distance (Maximum) Single-mode fiber side: 20 km (12.4 mi.)
    RJ-11C side: 5 km (3.1 mi.)
    Input Power 8.0 dBm
    Link Budget 16.0 dB
    RX Sensitivity -30.0 dBm
    TX TX Power -15.0 dBm to -8.0 dBm
    Approvals CE, RoHS
    Connectors (1) RJ-11C, (1) pair of SC
    Indicators (3) LEDs: Fiber link on/off; Active in use/ringing; Power on/off
    Power Output: 12 VDC, 0.6 A from external power supply
    Dimensions 1.8"H x 3.7"W x 4.7"D (4.6 x 9.4 x 11.9 cm)
    Weight 2 lb. (0.9 kg)
    "

    For an automatic ring-down (ARD) application, order two of these units.
    But for a standard loop extender application, this FXO unit must be paired with:

    •  POTS 2-Wire to Fiber Converter, FXS to Single-Mode SC (TE164A-R2)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for POTS 2-Wire to Fiber Converter, FXO to Single-Mode SC:

    Manuals

    • POTS to Fiber Converter User Manual
      User Manual for the TE160A-R2, TE161A-R2, TE162A-R2, TE163A-R2, TE164A-R2, and TE165A-R2 (1)

    Product Data Sheets

    Application Diagrams


    Connect your POTS 2-Wire to Fiber Converter, FXO to Single-Mode SC with:

    Accessory: TE164A-R2

    POTS 2-Wire to Fiber Converter, FXS to Single-Mode SC

    POTS 2-Wire to Fiber Converter, FXS to Single-Mode SC
