Datacom > Converters

click photo to enlarge

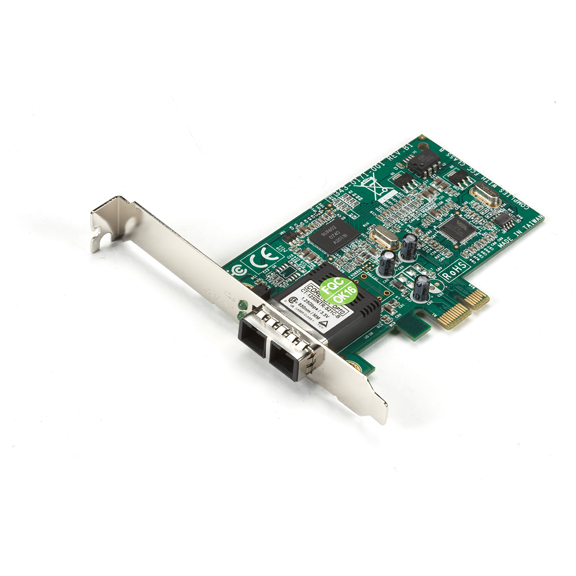

LH1690C-SC

Photo may show similar product

Other views

PCI-E Fiber Adapter, 1000BASE-SX, Multimode, SC

Bring fiber-based Gigabit Ethernet to the desktop.

LH1690C-SC

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Includes low-profile and standard profile PC brackets.
  • This high performance PCI Express (PCI-E) card provides Gigabit-speed PC connections to a fiber optic network.
  • Provides up to 2000 Mbps of full-duplex bandwidth capacity for high-end system demands.
  • Delivers maximum bandwidth and bus efficiency with lower power consumption.

  • Description

    PCI-E Fiber Adapter, 1000BASE-SX, Multimode, SC


    Quick Facts

  • Includes low-profile and standard profile PC brackets.
  • This high performance PCI Express (PCI-E) card provides Gigabit-speed PC connections to a fiber optic network.
  • Provides up to 2000 Mbps of full-duplex bandwidth capacity for high-end system demands.
  • Delivers maximum bandwidth and bus efficiency with lower power consumption.

  • Further Details

  • Replace an older Ethernet fiber card with the PCI-E Fiber Adapter for better performance and high-bandwidth, 1000-Mbps network speed.
  • Fully complies with all IEEE 802.3z and 1000BASE-SX standards.
  • High-level VLAN filtering and packet processing gives you improved performance, flexible configuration, and secure networking in a standard-based environment.
  • PCI-E (Rev. 1.1 compliant) interface installs easily in a PCIe x1 slot.
  • Equipped with SC connectors for attaching multimode fiber.
  • Features IEEE 802.3x full-duplex flow control.
  • Offers jumbo frame support for packet-heavy network traffic.
  • Supports IP headers and TCP/UDP checksums offload.
  • Also enables you to set up on-board screening of VLAN tagged Ethernet frames.
  • Great for industrial applications and other electronically noisy areas, as well as secure government networks.
  • RoHS compliant.


  • Technical Specifications for PCI-E Fiber Adapter, 1000BASE-SX, Multimode, SC:

    Compliance —EMI Standard, FCC Class B
    Fiber Cable Supported — 62.5-/125-µm, 50-/125-µm multimode
    Operation — Full-duplex with NWay flow control
    Software Supported — Windows® 98/Me®, 2000/2003, Windows XP®, NT 4.0, Windows Vista®, Windows® 7; Novell® NetWare® 4.x/5.x/6.x; Linux®; PXE & RPL Boot ROM
    Speed — 1000 Mbps
    Standards — IEEE 802.3z Gigabit Ethernet 1000BASE-SX, IEEE 802.3x full-duplex flow control, IEEE 802.1Q VLANs
    CE Approval — Yes
    Connectors — (1) duplex SC (850 nm)
    Indicators — LEDs on bracket: (1) LINK/ACT, (1) FDX
    Power — From the PCI-e bus; maximum 5 W +3.3 VDC at 1.5 A


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for PCI-E Fiber Adapter, 1000BASE-SX, Multimode, SC:

    Drivers

    • LH1690C-SC Drivers
      Drivers for the LH1690C-SC.
