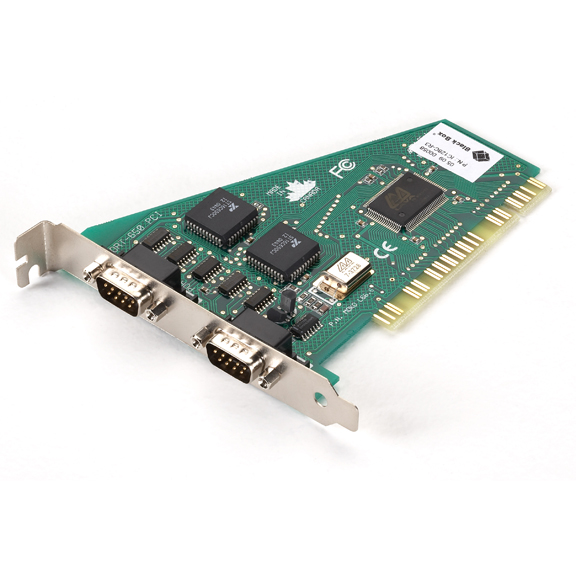

IC128C-R3

Photo may show similar product

Other views

PC Plus Adapter Card, Dual Serial PCI

Short a port or two? Add 'em and start running your super-fast peripherals!

IC128C-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The IC129C supports Enhanced Capabilities Port (ECP) and Enhanced Parallel Port (EPP) standards.
  • The high-speed parallel card (IC126C) achieves speeds up to 7.2 MBps!
  • The RS-232 HS Serial PCI Card (IC145C) is compatible with all 56K external modems and ISDN adapters.

  • Description

    PC Plus Adapter Card, Dual Serial PCI


    Quick Facts

  • The IC129C supports Enhanced Capabilities Port (ECP) and Enhanced Parallel Port (EPP) standards.
  • The high-speed parallel card (IC126C) achieves speeds up to 7.2 MBps!
  • The RS-232 HS Serial PCI Card (IC145C) is compatible with all 56K external modems and ISDN adapters.

  • Further Details

  • The serial cards (IC127C, IC128C-R3, and IC145C) feature 16650 UART chips with extra large 32-byte buffers.
  • The Dual Parallel PCI Card (IC146C) automatically configures I/O addresses and IRQs.

    PC Plus HS Parallel PCI Adapter (IC126C)
    Free up scarce PCI slots while adding a high-speed parallel port. This high-speed card can actually achieve data throughput of up to 7.2 MBps—two to three times faster than standard parallel throughput.

    PC Plus RS-232 Serial ISA Adapter (IC127C)
    This ISA card is compatible with all V.34 external modems and ISDN external terminal adapters. It's configurable as COM 1 through COM 4 using an IRQ of 2/3/4/5/10/11/12/15. Drivers for Windows® 95/98 and Windows NT® are included.

    PC Plus Dual Serial PCI Adapter (IC128C-R3)
    This PCI card has two high-speed serial ports and is 100% compatible with all 56K external modems and ISDN terminal adapters. It includes drivers for Windows 95/98 and Windows NT.

    PC Plus Enhanced Parallel ISA Adapter (IC129C)
    Send data as fast as your new parallel printer can print it! This ISA card features an ultra-fast Enhanced Parallel Port (EPP) with a maximum transfer rate of 2.5 MBps!

    It supports both Enhanced Capabilities Port (ECP) and EPP standards. Configure it as LPT1 through LPT6 using IRQs 2/3/4/5/7/10/11/12, DMA1/3. The adapter supports hexadecimal addresses 03BC, 0378, 0278, 0238, 0288, and 0338. It's backward compatible with 4-bit and 8-bit (bidirectional) parallel ports and requires no special drivers.

    RS-232 HS Serial PCI Card (IC145C)
    This plug-and-play card gives you one super-fast 460.8-kbps comm port for connecting your modems and other serial equipment. This card slides into the PCI slot and shares IRQs, so you can use it even if you have no IRQs left.

    You don't have to worry about compatibility; the card works with all 56K external modems and external ISDN terminal adapters.

    Dual Parallel PCI Card (IC146C)
    Add two accelerated parallel printer ports to your PCI-equipped PC. This plug-and-play card gives you two EPPs that run up to three times faster than standard ports. You save on IRQs, too, because both ports share one. The card handles simultaneous data throughput and is compatible with any parallel device, including legacy devices.

    These products work with:
    • AT Modem Cable (EVMBMC, BC00301)
    • Enhanced Parallel Port Cable (EQN202)
    • Parallel Printer Cable, Male/Male (EYN600-MM)
    • Mini-Modems (MD1626A, MD1620A)
    • U.S. Robotics 56K V.92 Data FaxModem (USR5686E)
    • Courier V.Everything Modem (3CP3453)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for PC Plus Adapter Card, Dual Serial PCI:

    Card Type IC126C, IC128C-R3, IC145C–IC146C: PCI;
    IC127C, IC129C: ISA
    Operating Systems Supported Windows 95/98, Windows NT (Call Tech Support about Windows 2000 and Windows XP)
    Speed IC126C: 7.2 MBps;
    IC127C, IC128C-R3: 460.8 kbps;
    IC129C, IC146C: 2.5 MBps;
    IC145C: Up to 460.8 kbps
    CE Approval IC127C, IC128C-R3, IC129C
    Connectors IC126C, IC129C: (1) DB25;
    IC127C, IC145C: (1) DB9;
    IC128C-R3: (2) DB9;
    IC146C: (2) DB25
    Power From the PC bus
    Size 3⁄4 card
    These products work with:
    • AT Modem Cable (EVMBMC, BC00301)
    • Enhanced Parallel Port Cable (EQN202)
    • Parallel Printer Cable, Male/Male (EYN600-MM)
    • Mini-Modems (MD1626A, MD1620A)
    • U.S. Robotics 56K V.92 Data FaxModem (USR5686E)
    • Courier V.Everything Modem (3CP3453)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
