Power > Power Distribution


click photo to enlarge

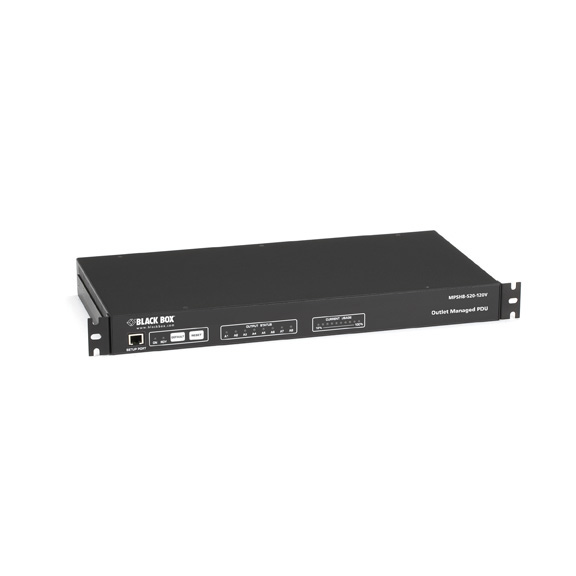

MPSH8-S20-120V

Photo may show similar product

Other views

Outlet-Managed PDU, 8-Outlet, Single-Circuit, 120 VAC, 20-Amp

Secure outlet level metering, monitoring, and control remotely from anywhere.

MPSH8-S20-120V

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Get complete power control: remote and timed individual outlet switching, auto on/off/reboot, load shed switching, outlet sequencing, and more.
  • Switches power on/off for individual network devices or for groups of equipment.
  • Monitors equipment power and automatically notifies you of changes in current levels, circuit breaker status, temperature, unauthorized access attempts, ping response, and more.
  • Notifies you via e-mail, text, SNMP, SYSLOG, and audible alarms when user-defined thresholds are exceeded.


  • Description

    Outlet-Managed PDU, 8-Outlet, Single-Circuit, 120 VAC, 20-Amp


    Quick Facts

  • Get complete power control: remote and timed individual outlet switching, auto on/off/reboot, load shed switching, outlet sequencing, and more.
  • Switches power on/off for individual network devices or for groups of equipment.
  • Monitors equipment power and automatically notifies you of changes in current levels, circuit breaker status, temperature, unauthorized access attempts, ping response, and more.
  • Notifies you via e-mail, text, SNMP, SYSLOG, and audible alarms when user-defined thresholds are exceeded.

  • Further Details

  • Generates reports with detailed records of current and power consumption.
  • Go green—save energy and money by shutting off power to equipment during downtimes.


  • Networks today demand 98%+ uptime. When it's your job to make sure your network equipment is up and running, Black Box® Outlet-Managed PDUs can be one of your best friends in the data center.

    One of these switched PDUs will keep an eye on your network equipment no matter if you're in the office, across the country, or asleep at home at 3 a.m. You'll know if something is going wrong so you can correct the situation before it turns into a crisis. The PDU will automatically notify you via e-mail, text message, SNMP, or SYSLOG when changes in current levels, temperature, circuit breaker status, and other factors exceed threshold values that you set. This gives you the chance to reboot your rackmounted equipment when devices aren't responding; disable outlets to reduce current consumption; or even switch on cooling devices to lower the rack/cabinet temperature. You can reboot equipment over the Internet, via a text message, through an external modem, or a local terminal plugged into the RS-232 port. The PDU also features a 10/100BASE-T port for network connections.

    Individual or group play.
    One of the best features of these PDUs is the ability to remotely switch one outlet, a group, or a branch, or to switch a whole group of outlets. You can also set the PDU to monitor one outlet, a group, or a branch of outlets.

    Sound the alarm.
    The PDU boasts a robust selection of monitoring features to help you keep tabs on vital network equipment, avoid costly service calls, and maximize uptime. You can customize the PDU to your network by selecting the alarms and setting individual thresholds.
    Use the PDU to alert you when:

  • The temperature gets too high.
  • An outlet is on, but the connected device is off.
  • The power supply has been interrupted.
  • Current consumption increases or decreases.
  • An outlet draws excessive current.
  • Equipment fails to respond to ping commands.
  • Excessive invalid passwords are attempted.


  • Power down.
    Another great feature of these switched PDUs is that you can set them to respond automatically in case you're not there. Set the parameters for the PDUs to disable outlets to reduce current consumption or to switch on cooling devices. If the current load goes too high, it intelligently sheds load by temporarily shutting down non-essential devices.

    Anyone home?
    You can also set the PDU to ping equipment at set intervals. If the equipment doesn't respond, the PDU automatically reboots the outlets. You can also set alarms in case you lose communications on the ports.

    Security guard.
    Plus, you can use the PDU to alert you when there are multiple login attempts on the 10/100 network and serial ports. The PDU features SSHv2 encryption, HTTPS/SSL secure Web, and an embedded validation FIPS 140-2 cryptographic module. It also offers multiple methods of remote authentication: LDAP, Kerberos, RADIUS, and TACACS+. Additionally, it has IP address filtering and four levels of security for user accounts with plug-specific password protection.

    Go green and save power.
    Use the Outlet-Managed PDU to conserve energy in the data center by setting scheduled shutdowns to turn off unused equipment during off hours.


    Technical Specifications for Outlet-Managed PDU, 8-Outlet, Single-Circuit, 120 VAC, 20-Amp:

    Plug Type 8-foot (2.4-m) power cord with C20 plug
    Input Feeds MPSH8-S20-120V: 1 ea., 20 amps
    Maximum Load Per outlet: 12 amps;
    Per input*: 16 amps
    (*In accordance with UL® requirements for branch circuits, the per-unit value has been derated to 80% per unit)
    Switched Outlets (8) NEMA 5-20R
    CE Approval Yes
    RoHS Yes
    Connectors Setup serial port: (1) RJ-45 (RS-232);
    Network: (1) RJ-45 (10/100 Mbps)
    Power Input: Either 100-120 VAC, 50/60 Hz or 100-250 VAC, 50/60 Hz, autosensing
    Size 1.75"H (1U) x 19"W x 8.7"D (4.4 x 48.3 x 22.1 cm)
    Weight 11 lb. (4.9 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Outlet-Managed PDU, 8-Outlet, Single-Circuit, 120 VAC, 20-Amp:

    Manuals

    • Outlet-Managed PDU User Manual
      User Manual for the MPSH8-S20-120V, MPSH8-S20-208+V, MPSH8-D20-120V, MPSH8-D20-208+V, MPSH16-D20-120V, and MPSH16-D20-208+V (Version 1)

    Application Diagrams

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Black Box Explains


    Connect your Outlet-Managed PDU, 8-Outlet, Single-Circuit, 120 VAC, 20-Amp with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $67.70

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $135.39

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
