Digital Signage > Monitors & Displays

click photo to enlarge

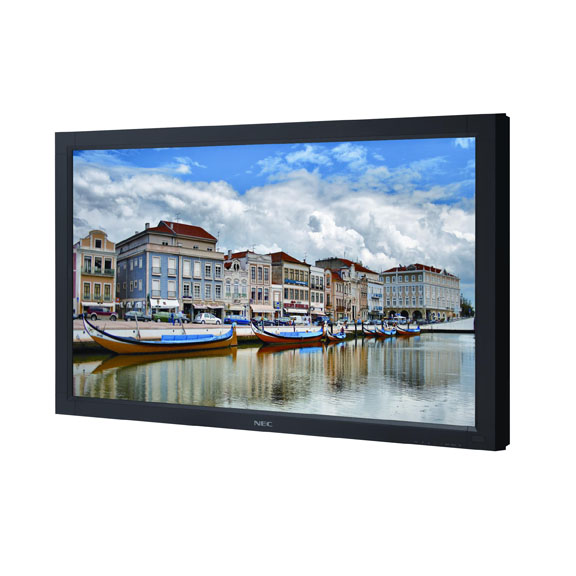

IC-V4612DST-USB

Photo may show similar product

Other views

NEC V Series/3M iCOMPEL 46" Touchscreen LCD (USB)

Set up interactive digital signage with this iCOMPEL optimized 46" touchscreen LCD.

IC-V4612DST-USB


Three year Warranty

Product Highlights

  • NEC® V461-2 LCD screen with 3M® USB MicroTouch™ DST overlay.
  • Integrated DST touch technology for fast, more precise detection of touch location.
  • Fully tested to work with iCOMPEL digital signage appliances.

  • Description

    NEC V Series/3M iCOMPEL 46" Touchscreen LCD (USB)


    Quick Facts

  • NEC® V461-2 LCD screen with 3M® USB MicroTouch™ DST overlay.
  • Integrated DST touch technology for fast, more precise detection of touch location.
  • Fully tested to work with iCOMPEL digital signage appliances.

  • Further Details

  • Supports HD resolutions up to 1920 x 1080.
  • Boasts 450 cd/m2 brightness with 3000:1 contrast ratio.
  • Fast, accurate, repeatable response for busy touch applications.
  • Touch operation not affected by dust or other contaminants on the surface.
  • Chemically-strengthened glass with anti-glare surface.
  • Remotely manageable via serial RS-232 or Ethernet ports.
  • Includes intuitive NaViSet™ software for display control.
  • Ticker feature. Stream text alerts and news across bottom of screen.
  • Digital HDMI and DVI and analog VGA, Composite, and S-Video inputs.
  • Energy Star 5.0 rated with features for lower power consumption.
  • TileMatrix™ and TileComp™ technology for creating video walls.
  • Use in landscape or portrait orientation.
  • Stereo audio through 15-W speakers.
  • Windows Vista® certified.

    Set up advanced interactive digital signage with Black Box’s NEC/3M iCOMPEL Touchscreen LCD. Featuring integrated 3M® MicroTouch™ Dispersive Signal Technology (DST) on its touchscreen interface, it’s ideal for applications that require fast, accurate, and reliable touch response.

    Plus, it’s tested to perform optimally with Black Box’s award-winning iCOMPEL™ platform for digital signage (touchscreen license activation required).

    The unique 3M touch technology.
    Using integrated DST technology, the NEC/3M iCOMPEL Touchscreen LCD recognizes touch by interpreting bending waves within the glass substrate—which is distinctly different than most traditional touchscreen technologies that detect touch by interrupting acoustic waves, optical fields, or infrared beams above the surface of the screen.

    When someone puts a finger or stylus on the NEC/3M iCOMPEL Touchscreen LCD’s glass, it creates a bending wave within the substrate, radiating out from the point of impact to the corners of the screen. The waves are detected by sensors, which enable the touchscreen LCD’s high-speed processors to precisely calculate the touch location.

    Because bending waves are not affected by onscreen contaminants and surface scratches, the DST touchscreen offers more accurate and reliable operation.

    For this reason it’s well suited for busy, heavy-use applications, including:
    • interactive digital signage
    • public wayfinding kiosks
    • customer “self-service” stations
    • retail PoS/PoP touch panels
    • visitor services screens in lobbies
    • point-of-information stations.

    The NEC/3M iCOMPEL Touchscreen LCD also can be used for corporate directories, retail product selectors, and conference room and education presentation systems.

    Featuring a chemically strengthened glass (meeting UL® 60950 glass breakage specifications), the touch panel has an anti-glare etch surface for use in a wide range of ambient light conditions. What’s more, the surface minimizes the appearance of fingerprints.

    The high-performance NEC LCD technology.
    Not only do you get a technologically advanced touchscreen, but the display itself is designed for extended use and display of clear, HD-quality images and video. Its 46" screen is great for large public venues.

    The public display-grade, standard-bezel NEC® V461-2 LCD boasts high brightness and contrast ratio, so you can create eye-catching, interactive signage with crisp, easy-to-read text. Featuring 6-axis color control, you can precisely adjust color, color temperature, and saturation to your liking.

    It can also be remotely managed. Through its RS-232 or Ethernet port, you can control one or more displays. Use the included NaViSet™ intuitive graphical interface software to adjust display settings via a mouse and keyboard from a remote workstation. Because the LCD supports the DDC/CI standard, it allows for PC control of the display based on the VESA command set.

    What’s more, the LCD has a scheduler feature—use it for round-the-clock, seven-day scheduling of content and powering of the display—as well as a text ticker feature that enables you to use a portion of the screen for emergency warnings and news updates. Primary content is displayed via one input and fills the majority of the screen while the secondary ticker information is shown on the lower remaining portion of the screen via a second input.

    In addition, NEC TileMatrix™ technology enables configuring of multiple screens for video wall setups (with up to 25 displays in a 5 x 5 matrix) and NEC TileComp™ works in tandem with TileMatrix to compensate for the bezel width, so you can create a more seamless video wall.

    What’s included:
    • (1) NEC/3M iCOMPEL Touchscreen LCD
    • (2) rearmount speakers
    • (1) power cord
    • (1) VGA cable
    • (1) remote controller with batteries
    • NaViSet™ intuitive graphical interface software
    • User manual on CD-ROM
    • Setup sheet

  • Technical Specifications for NEC V Series/3M iCOMPEL 46" Touchscreen LCD (USB):

    LCD Brightness — 450 cd/m2
    LCD Contrast Ratio — 3000:1
    LCD Resolution — 1920 x 1080
    LCD Response Time — 8 ms (gray to gray)
    LCD Viewable Image Size — 46"
    LCD Viewing Angle — 178º vertical/horizontal
    Touchscreen Controller MTBF — >140K hours (per MIL-HDBK-217F calculation)
    Touchscreen Input Method — Finger and stylus
    Touchscreen Response Time — 20 ms for tap input
    Touchscreen Optical Clarity — 92% light transmission (+/- 2%)
    Touchscreen Accuracy — Reported coordinates are within 1.0% of true position (based on viewing area dimensions)
    VESA Hole Configuration — 400 x 200 mm (12-hole)
    Environmental — Operating temperature: 41 to 104º F (5 to 40º C);
    Operating humidity: 20 to 80%, noncondensing
    Connectors — Video in: (1) HDMI F, (1) DVI-D F, (1) HD15 F (VGA), (5) BNC F (RGB/HV, DVD/HD or Composite video), (1) BNC F (Composite video), (1) 4-pin mini DIN (S-Video);
    Video out: (1) HD15 F (VGA), (1) BNC F (Composite video);
    Audio in: (1) 3.5-mm mini-jack, (1) L/R RCA jack;
    Audio out: (2) L/R RCA jacks, (1) L/R +/- bare speaker wire block;
    External serial control in/out: (2) DB9 F (RS-232);
    Network: (1) RJ-45 (LAN port);
    Touchscreen controller cable interface (to iCOMPEL or PC): (1) USB Type A M
    Power — Input: 100–120 VAC, 220-240 VAC, 50–60 Hz, autosensing;
    Consumption (typical): 185 W
    Size — Without optional stand or speakers: 26.2"H x 44.2"W x 5.1"D (66.5 x 112.3 x 13 cm) bezel with 0.2" (0.5-cm) touchscreen overlay (including glass thickness, tail, electronics components, mounting material)
    Weight — Without optional stand or speakers: 52.9 lb. (24 kg)

    This product works with:
  • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB (ICOMP)
  • iCOMPEL HD Plus High-Speed Digital Signage Appliance, 500 GB with Video Capture Card (ICOMP-VID)
  • iCOMPEL HD Plus Digital Signage Appliance, 160 GB (ICOMP01)
  • iCOMPEL HD Plus Digital Signage Appliance, 160 GB with Video Capture Card (ICOMP01-VID)
  • iCOMPEL HD Digital Signage Appliance, 160 GB (ICOMP02-H)
  • iCOMPEL HD Digital Signage Subscriber Only, 160 GB (ICOMP03-H)
  • iCOMPEL HD Digital Signage Appliance, 32 GB Solid-State, Ruggedized (ICOMP02-S)
  • iCOMPEL HD Digital Signage Subscriber Only, 32 GB Solid-State, Ruggedized (ICOMP03-S)
  • iCOMPEL USB HID Touchscreen Feature Key (ICOMP-TOUCH)
    Need assistance ordering your iCOMPEL unit or designing your complete end-to-end digital signage system? Just contact our FREE 24/7 Tech Support. Also contact us for a one-on-one demo of the iCOMPEL system and its easy-to-use software.

    NOTE: To enable touchscreen capabilities on the iCOMPEL, you’ll need to order a license (ICOMP-TOUCH) with the unit.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for NEC V Series/3M iCOMPEL 46" Touchscreen LCD (USB):

    Software

    • NEC 3M iCOMPEL Touchscreen LCD (USB) Software and Drivers
      Software & Drivers for the IC-V3212DST-USB, IC-P401DST-USB, IC-V4212DST-USB, IC-V4612DST-USB, IC-P461DST-USB, BB-V3212DST-RS232, BB-P401DST-RS232, BB-V4212DST-RS232, BB-V4612DST-RS232, and BB-P461DST-RS232
