Digital Signage > Monitors & Displays

click photo to enlarge

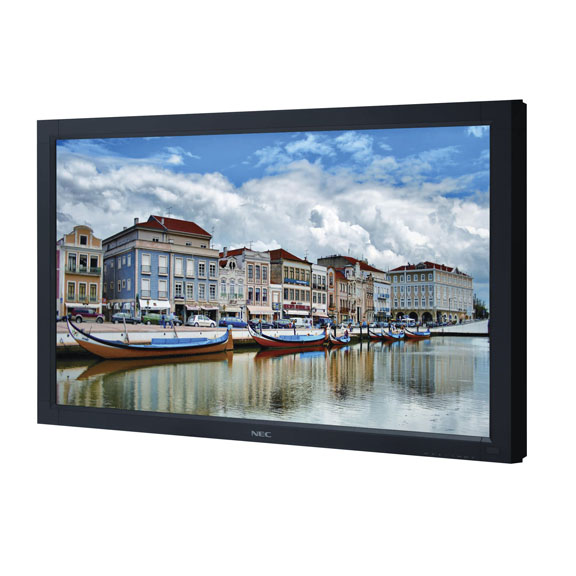

BB-P551DST-RS232

Photo may show similar product

Other views

NEC P Series/3M 55" Touchscreen LCD (RS-232)

Set up interactivity with this industrial-strength 55" touchscreen LCD.

BB-P551DST-RS232

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Industrial-strength NEC® P551 LCD screen with 3M® RS-232 MicroTouch™ DST overlay.
  • Integrated DST touch technology for fast, more precise detection of touch location.
  • Supports Full HD resolutions up to 1920 x 1080.

  • Description

    NEC P Series/3M 55" Touchscreen LCD (RS-232)


    Quick Facts

  • Industrial-strength NEC® P551 LCD screen with 3M® RS-232 MicroTouch™ DST overlay.
  • Integrated DST touch technology for fast, more precise detection of touch location.
  • Supports Full HD resolutions up to 1920 x 1080.

  • Further Details

  • Boasts 500 cd/m2 brightness (typical) with 3000:1 contrast ratio.
  • Premium-grade with additional thermal protection.
  • Ideal for 24/7 operation in harsh environments.
  • Fast, accurate, repeatable response for busy touch applications.
  • Touch operation not affected by dust or other contaminants on the surface.
  • Chemically strengthened glass with anti-glare surface.
  • Remotely manageable via serial RS-232 or Ethernet ports.
  • Includes intuitive NaViSet™ software for display control.
  • Also includes NEC feature-packed Enhanced Digital Signage Technology Suite.
  • A wide choice of inputs: DisplayPort, HDMI, and DVI, plus VGA, Component, Composite, and S-Video.
  • Ambient light sensor adjusts brightness to room’s lighting.
  • Energy Star 5.0 rated with reduced power consumption features.
  • Carbon footprint meter tracks conservation of green gas emissions in real time.
  • TileMatrix™ and TileComp™ technology for creating video walls.
  • Use in landscape or portrait orientation.
  • Built-in expansion card slot.
  • 15-W audio amplifier.
  • Windows Vista® certified.
  • Also available with USB touch controller input.

    Set up advanced interactive digital signage with Black Box’s NEC/3M Touchscreen LCD. Featuring integrated 3M® MicroTouch™ Dispersive Signal Technology (DST) on its touchscreen interface, it’s ideal for applications that require fast, accurate, and reliable touch response.

    And because it has an industrial-strength design with a premium-grade panel and extra thermal protection, it’s a great choice for signage and kiosks in more-demanding settings.

    The unique 3M touch technology.
    Using integrated DST technology, this touchscreen LCD recognizes touch by interpreting bending waves within the glass substrate—which is distinctly different than most traditional touchscreen technologies that detect touch by interrupting acoustic waves, optical fields, or infrared beams above the surface of the screen.

    When someone puts a finger or stylus on the NEC/3M Touchscreen LCD’s glass, it creates a bending wave within the substrate, radiating out from the point of impact to the corners of the screen. The waves are detected by sensors, which enable the touchscreen LCD’s high-speed processors to precisely calculate the touch location.

    Because bending waves are not affected by on-screen contaminants and surface scratches, the DST touchscreen offers more accurate and reliable operation.

    For this reason, it’s well suited for busy, heavy-use applications, including:
    • Interactive digital signage.
    • Public wayfinding kiosks.
    • Customer “self-service” stations.
    • Retail PoS/PoP touch panels.
    • Visitor services screens in lobbies.
    • Point-of-information stations.

    The NEC/3M Touchscreen LCD also can be used for corporate directories, retail product selectors, and conference room and education presentation systems.

    Featuring a chemically strengthened glass (meeting UL® 60950 glass breakage specifications), the touch panel has an anti-glare etch surface for use in a wide range of ambient light conditions. What’s more, the surface minimizes the appearance of fingerprints.

    The high-performance NEC LCD technology.
    Not only do you get a technologically advanced touchscreen, but the display itself is also designed for extended, heavy-duty use in harsh environments.

    The professional-grade NEC® P551 LCD boasts an extra thermal layer and internal temperature sensors that control self-protective circuits. Its construction includes:
    • A thermal dissipation plate behind the LCD lamps that conducts heat equally across the plate to prevent “hot spots” on the LCD.
    • A wider air layer, which enables increased airflow and improved heat dissipation.
    • A heat protection plate between the LCD panel and lamps that provides added heat protection.

    In addition, the LCD has multiple fans that diffuse heat, whether it’s used in landscape or portrait configuration, and it is sealed, protecting it from dust, grease, steam, and other contaminants.

    You also get Full HD resolution on a bright screen that features a high contrast ratio. Create interactive signage with crisp, easy-to-read text.

    The panel shows increased definition between images and renders fast-moving images nicely, too—with 120-Hz refresh rate reducing blur that one often sees on standard 60-Hz screens. A CableComp+ feature uses a digitized signal delay circuit to ensure sharp image reproduction when using long cable runs with low output levels.

    Use the included NaViSet™ intuitive graphical interface software to adjust display settings via a mouse and keyboard from a remote workstation. Featuring 6-axis color control, you can precisely adjust color, color temperature, and saturation to your liking.

    The fans can also be controlled remotely, and special self-diagnostics communicate the status of the thermal characteristics. Through its RS-232 or Ethernet port, you can control one or more displays. A copy function enables you to apply settings from one display to all others in the RS-232 daisychain, reducing set-up time.

    Plus, you can schedule the powering up and down of the display ahead of time. This can increase the panel’s life and reduce energy consumption.

    NEC TileMatrix™ technology enables configuring of multiple screens for video walls (up to 100 displays in a 10 x 10 matrix), and NEC TileComp™ works in tandem with TileMatrix to compensate for the bezel width, so you can create a more seamless video wall.

    Because the LCD supports the DDC/CI standard, it allows for PC control of the display based on the VESA command set.

    The display panel also has a built-in expansion slot, futureproofing your investment further. Use the slot for NEC and third-party components, such as IPTV tuner cards, HD-SDI video cards, and internal PC boards.


  • Technical Specifications for NEC P Series/3M 55" Touchscreen LCD (RS-232) :

    LCD Brightness — 500 cd/m2 (typical)
    LCD Contrast Ratio — 3000:1
    LCD Resolution — 1920 x 1080
    LCD Response Time — 8 ms (gray to gray)
    LCD Viewable Image Size — 55"
    LCD Viewing Angle — 178º
    Touchscreen Accuracy — Reported coordinates are within 1.0% of true position (based on viewing area dimensions)
    Touchscreen Controller MTBF — >140K hours (per MIL-HDBK-217F calculation)
    Touchscreen Input Method — Finger and stylus
    Touchscreen Response Time — 20 ms for tap input
    Touchscreen Optical Clarity — 92% light transmission (+/- 2%)
    VESA Hole Configuration — 400 x 400 mm (4-hole)
    Environmental — Operating temperature: 41 to 104º F (5 to 40º C);
    Operating humidity: 20 to 80%, noncondensing
    Connectors — Video in: (1) DisplayPort, (1) HDMI F, (1) DVI-D F, (1) HD15 F (VGA), (5) BNC F (RGB/HV, DVD/HD, or Composite video), (1) RCA (Composite video), (3) RCA (YPbPr Component video), (1) BNC F (Composite video), (1) 4-pin mini DIN (S-Video);
    Video out: (5) BNC F (RGB/HV, DVD/HD, or Composite video), (1) BNC F (Composite video);
    Audio in: (1) 3.5-mm mini-jack, (2) L/R RCA jacks;
    Audio out: (1) L/R RCA jack, (1) L/R +/- bare speaker wire block;
    External serial control in/out: (2) DB9 M (RS-232);
    Network: (1) RJ-45 (LAN port)
    Infrared in/out: (2) mini-jacks;
    Touchscreen controller: (1) DB9 F (RS-232)
    Power — Input: 100–120 VAC, 220–240 VAC, 50–60 Hz, autosensing;
    Consumption (typical): 280 W
    Size — Without optional stand or speakers: 49.2"H x 28.4"W x 5.9"D (125 x 72.1 x 15 cm) bezel with 0.7" (1.8-cm) touchscreen overlay (including glass thickness, tail, electronics components, mounting material)
    Weight — Without optional stand or speakers: 88.2 lb. (40 kg)

    What’s included:
    • (1) NEC/3M Touchscreen LCD
    • (1) power cord
    • (1) VGA cable
    • (1) remote controller with batteries
    • NaViSet™ intuitive graphical interface software
    • User manual on CD-ROM
    • Setup sheet



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
