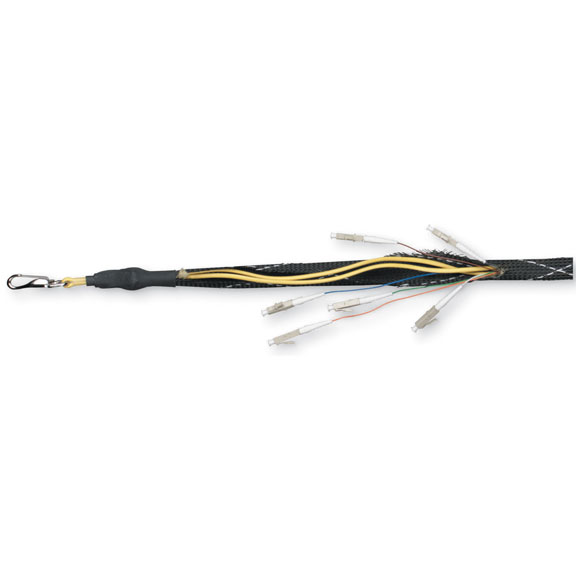

Multimode, 62.5-Micron, Distribution-Style Fiber Optic Cable with Pulling Eye, 6-Fiber, LC–LC, Custom Lengths

Preterminated, tight-buffered cable with pulling eyes makes long runs easy.

EFP2006AL

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • The easy way to pull preterminated fiber cable.
  • Features fibers terminated with swivel pulling eyes.
  • Makes pulling new cable through conduits much easier.


  • Description

    Multimode, 62.5-Micron, Distribution-Style Fiber Optic Cable with Pulling Eye, 6-Fiber, LC–LC, Custom Lengths


    Quick Facts

  • The easy way to pull preterminated fiber cable.
  • Features fibers terminated with swivel pulling eyes.
  • Makes pulling new cable through conduits much easier.

  • Further Details

  • Color-coded, tight-buffered fibers are stranded around a central member, surrounded with Kevlar®, and encased in a PVC or plenum jacket.
  • We can do any fiber count in any configuration as a special order. For details, contact our FREE Tech Support.
  • Available with 6, 12, or 24 fibers and SC, ST, and LC connectors.

  • NOTE: For custom configurations, contact our FREE Tech Support.


    Technical Specifications for Multimode, 62.5-Micron, Distribution-Style Fiber Optic Cable with Pulling Eye, 6-Fiber, LC–LC, Custom Lengths:

    Attenuation (Maximum) 3.50 dB/km at 850 nm; 1 dB/km at 1300 nm
    Bandwidth (Minimum) 200 Hz/km at 850 nm; 500 Hz/Km at 1300 nm
    Diameter EFN2006: 5.97 mm;
    EFN2012, EFP2012: 6.99 mm;
    EFN2024, EFP2024: 13.11 mm;
    EFP2006: 3.33 mm
    Fiber Type 62.5-µm core, 125-µm cladding
    Temperature Operating: -4 to +176° F (-20 to +80° C);
    Storage: -40 to +176° F (-40 to +80° C);
    Installation: +32 to 122° F (0 to +50° C)
    NOTE: For custom configurations, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Multimode, 62.5-Micron, Distribution-Style Fiber Optic Cable with Pulling Eye, 6-Fiber, LC–LC, Custom Lengths:


    Connect your Multimode, 62.5-Micron, Distribution-Style Fiber Optic Cable with Pulling Eye, 6-Fiber, LC–LC, Custom Lengths with:
