Multimode, 50-Micron, Distribution-Style Fiber Optic Bulk Cable, Custom Lengths

50-micron cable that's ideal for high-bandwidth voice, data, video, and imaging signals.

EXP25004A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Designed for backbone inter/intrabuilding applications.
  • Guaranteed for life!


  • Description

    Multimode, 50-Micron, Distrib-Style FO Bulk Cables, Plenum, 4-Fiber, Custom Lengths


    Quick Facts

  • Designed for backbone inter/intrabuilding applications.
  • Guaranteed for life!

  • Further Details

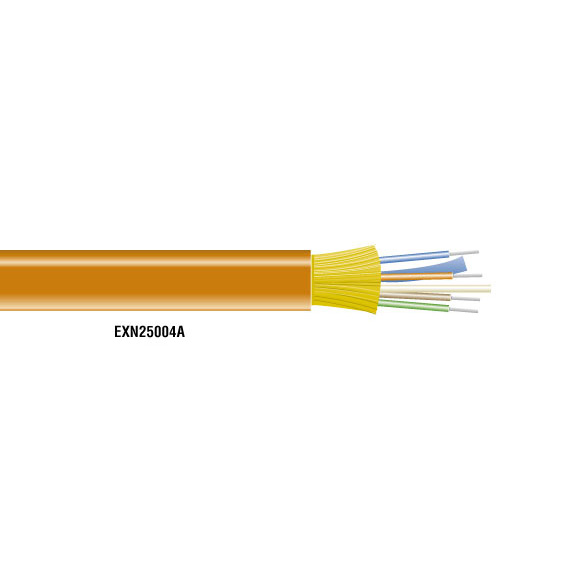

  • Construction consists of an outer jacket, a binder, a subunit jacket, subunit aramid yarn, a strength member, tight-buffered fibers, and a ripcord.
  • Flexible subunit construction enables easy routing of group fibers.
  • High-performance tight-buffer coating on each fiber provides environmental and mechanical protection.
  • Extremely economical for long-distance runs.
  • Rated for fire safety. PVC cable is also available.


  • Technical Specifications for Multimode, 50-Micron, Distribution-Style Fiber Optic Bulk Cable, Custom Lengths:

    Attenuation (Maximum) 3.5/1.0 dB/km at 850/1300 nm
    Bandwidth (Minimum) 500/500 MHz-km at 850/1300 nm
    Bend Radius 3.4" (8.6 cm) installation, 2.6" (6.5 cm) operating
    Buffer Diameter 900 µm
    Cable Size 0.170" (4.32 mm)
    Fiber Type Multimode, 50/125 µm
    Pulling Strength 4-Fiber: 1000 Newtons/225 lb.
    Standards PVC: UL® 1666, CSA FT4;
    Plenum: UL 910, CSA FT6;
    All: IEEE 802.3 for 1000BASE-SX/LX, 100BASE-F, 10BASE-F, ATM 155, ATM 622, ATM 1.2/2.4 Gbps, Fibre Channel FC-PH, IEEE 802.5, FDDI, ICEA 83-596, EIA/TIA-568-C
    Temperature Operating: -4 to +176° F (-20 to +80° C);
    Storage: -40 to +176° F (-40 to +80° C);
    Installation: 32 to 122° F (0 to 50° C)
    Tension (Operating) 400 Newtons/91 lb.
    Vertical Rise 5200 ft. (1585 m)

    NOTE: Minimum order for custom lengths is 1640 feet (500 m). For details, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Multimode, 50-Micron, Distribution-Style Fiber Optic Bulk Cable, Custom Lengths with:
