Multimode, 50-Micron, Distribution-Style, 12-Fiber, Cut to Length Fiber Optic Bulk Cable

Tight-buffered, 50-micron cable in the exact lengths you want.

EXP35012A

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Choose exactly the lengths you need with this tight-buffered, distribution-style bulk cable.
  • Guaranteed for life!


  • Description

    Multimode, 50-Micron, Distribution-Style, 12-Fiber, Cut to Length Fiber Optic Bulk Cable


    Quick Facts

  • Choose exactly the lengths you need with this tight-buffered, distribution-style bulk cable.
  • Guaranteed for life!

  • Further Details

  • This cable is ideal for runs between wiring closets and equipment rooms.
  • Terminate into loaded patch panels and equipment.
  • Use for backbone intrabuilding runs.
  • Rated for indoor use.
  • High-performance 900-µm buffer coating enables easy stripping and termination.
  • Custom cut to the length you need.
  • Meets or exceeds EIA/TIA 568-A/GR-409-CORE requirements.
  • Compliant to Directive 2002/95/EC (RoHS).

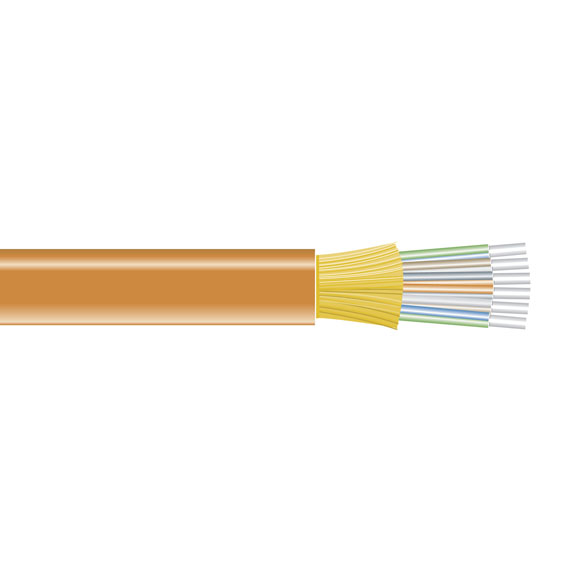

  • Construction consists of an outer jacket, aramid yarn, and tight-buffered fibers.
  • Plenum cable is rated for fire safety.


  • Technical Specifications for Multimode, 50-Micron, Distribution-Style, 12-Fiber, Cut to Length Fiber Optic Bulk Cable:

    Attenuation (Maximum) 3.5 dB/km at 850 nm; 1.5 dB/km at 1300 nm
    Bandwidth (Minimum) Overfill launch: 500 MHz/km at 850/1300 nm
    Bend Radius Installation: EXP35006A: 3" (7.2 cm); EXP35012A: 3.5" (8.3 cm);
    Long Term: EXP35006A: 2" (5 cm); EXP35012A: 2.5" (5.5 cm)
    Buffer Diameter 900 µm
    Diameter (Nominal) EXP35006A: 0.17" (0.4 cm);
    EXP35012A: 0.22" (0.6 cm)
    Fiber Count EXP35006A: 6;
    EXP35012A: 12
    Link Distance (Minimum) Gigabit Ethernet: 600 m at 850/1300 nm;
    10-Gigabit Ethernet: 82 m at 850 nm
    Temperature Operating: +32 to +158° F (0 to +70° C);
    Storage: -40 to +167° F (-40 to +75° C)
    Tension Installation lb. (N): EXP35006A: 286 (1272); EXP35012A: 239 (119);
    Long Term lb. (N): EXP35006A: 143 (636); EXP35012A: 119 (529)
    Weight EXP35006A: 13 lb./1000 ft.;
    EXP35012A: 20 lb./1000 ft.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Multimode, 50-Micron, Distribution-Style, 12-Fiber, Cut to Length Fiber Optic Bulk Cable:


    Connect your Multimode, 50-Micron, Distribution-Style, 12-Fiber, Cut to Length Fiber Optic Bulk Cable with:
