Cables > Fiber - Multimode

click photo to enlarge

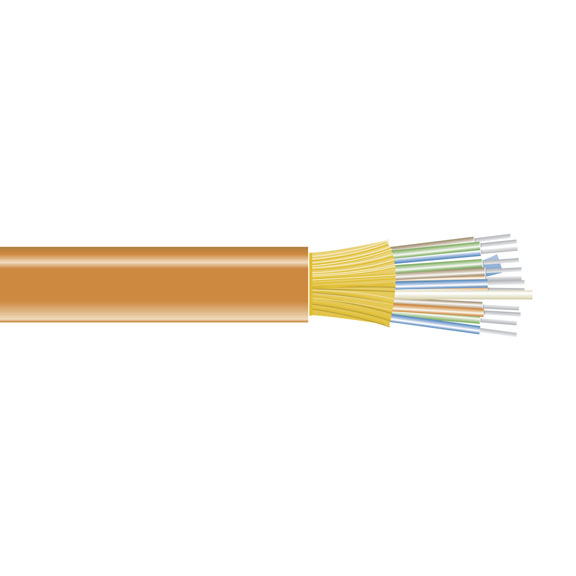

EXN25024A

Photo may show similar product

Other views

Multimode, 50-Micron, Distrib-Style Fiber Optic Bulk Cable, PVC, Riser, (OFNR/FT4), 24-Fiber, Custom Lengths

Get it here! The 50-micron cable you want with high fiber counts!

EXN25024A


Lifetime Warranty

Product Highlights

  • The cable for high-performance, long-distance runs.
  • Designed for backbone inter/intrabuilding applications.

  • Description

    Multimode, 50-Micron, Distrib-Style Fiber Optic Bulk Cable, PVC, Riser, (OFNR/FT4), 24-Fiber, Custom Lengths


    Quick Facts

  • The cable for high-performance, long-distance runs.
  • Designed for backbone inter/intrabuilding applications.

  • Further Details

  • Construction consists of an outer jacket, a binder, a subunit jacket, subunit aramid yarn, a strength member, tight-buffered fibers, and a ripcord.
  • Flexible subunit construction enables easy routing of group fibers.
  • High-performance tight-buffer coating on each fiber provides environmental and mechanical protection.
  • Extremely economical for long-distance runs.
  • Both PVC and plenum cable are rated for fire safety.


  • Technical Specifications for Multimode, 50-Micron, Distrib-Style Fiber Optic Bulk Cable, PVC, Riser, (OFNR/FT4), 24-Fiber, Custom Lengths:

    Attenuation (Maximum) — 3.5/1.0 dB/km at 850/1300 nm
    Bandwidth (Minimum) — 500/500 MHz-km at 850/1300 nm
    Bend Radius — PVC: 2-Fiber: 3.7" (9.5 cm) installation, 2.8" (7.1 cm) operating,
    4-Fiber: 4.4" (11.2 cm) installation, 3.3" (8.4 cm) operating,
    8-Fiber: 4.9" (12.4 cm) installation, 3.7" (9.3 cm) operating,
    12-Fiber: 5.5" (14.0 cm) installation, 4.1" (10.5 cm) operating,
    24-Fiber: 10.3" (26.2 cm) installation, 7.7" (19.6 cm) operating,
    36-Fiber: 12.5" (31.6 cm) installation, 9.3" (23.7 cm) operating;
    Plenum: 4-Fiber: 3.4" (8.6 cm) installation, 2.6" (6.5 cm) operating,
    8-Fiber: 4.0" (10.0 cm) installation, 2.9" (7.4 cm) operating,
    24-Fiber: 8.0" (20.3 cm) installation, 6.0" (15.2 cm) operating,
    36-Fiber: 10.0" (25.4 cm) installation, 7.5" (19.1 cm) operating
    Buffer Diameter — 900 µm
    Cable Size — PVC: 2-Fiber: 0.187" (4.75 mm),
    4-Fiber: 0.220" (5.59 mm),
    8-Fiber: 0.245" (6.22 mm),
    12-Fiber: 0.275" (6.99 mm),
    24-Fiber: 0.516" (13.11 mm),
    36-Fiber: 0.623" (15.82 mm);
    Plenum: 4-Fiber: 0.170" (4.32 mm),
    8-Fiber: 0.195" (4.95 mm),
    24-Fiber: 0.4" (10.16 mm),
    36-Fiber: 0.502" (12.75 mm)
    Fiber Type — Multimode, 50/125 µm
    Pulling Strength — 2-Fiber: 800 Newtons/180 lb.;
    4-Fiber: 1000 Newtons/225 lb.;
    8-Fiber: 1400 Newtons/315 lb.;
    12-Fiber: 1800 Newtons/405 lb.;
    24-Fiber: 2700 Newtons/600 lb.;
    36-Fiber: 4000 Newtons/900 lb.
    Standards — PVC: UL® 1666, CSA FT4;
    Plenum: UL 910, CSA FT6;
    All: IEEE 802.3 for 1000BASE-SX/LX, 100BASE-F, 10BASE-F, ATM 155, ATM 622, ATM 1.2/2.4 Gbps, Fibre Channel FC-PH, IEEE 802.5, FDDI, ICEA 83-596, EIA/TIA-568-B
    Temperature — Operating: -4 to +176º F (-20 to +80º C);
    Storage: -40 to +176º F (-40 to +80º C);
    Installation: 32 to 122º F (0 to 50º C)
    Tension (Operating) — 2-Fiber: 250 Newtons/56 lb.;
    4-Fiber: 400 Newtons/91 lb.;
    8-Fiber: 463 Newtons/104 lb.;
    12-Fiber: 600 Newtons/135 lb.;
    24-Fiber: 1110 Newtons/250 lb.;
    36-Fiber: 2000 Newtons/450 lb.
    Vertical Rise — PVC: 2-Fiber: 2987 ft. (910 m),
    4-Fiber: 3832 ft. (1168 m),
    8-Fiber: 3617 ft. (1103 m),
    12-Fiber: 3600 ft. (1097 m),
    24-Fiber: 2227 ft. (678.8 m),
    36-Fiber: 2515 ft. (767 m);
    Plenum: 4-Fiber: 5200 ft. (1585 m),
    8-Fiber: 4622 ft. (1409 m),
    24-Fiber: 3006 ft. (916 m),
    36-Fiber: 3133 ft. (955 m)
    NOTE: Minimum order for custom lengths is 1640 feet (500 m). For details, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Multimode, 50-Micron, Distrib-Style Fiber Optic Bulk Cable, PVC, Riser, (OFNR/FT4), 24-Fiber, Custom Lengths with:
