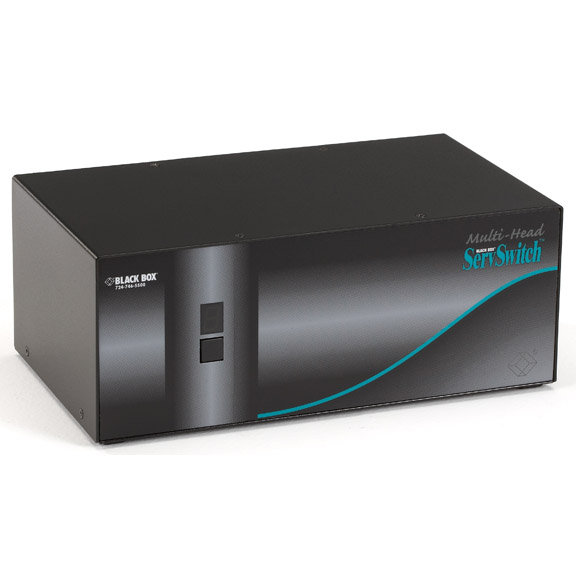

Multihead ServSwitch, Quad Video, 4-Port (4 CPUs)

Finally—a ServSwitch for CPUs with multiple video ports.

SW619A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Share multiple monitors among multiple CPUs.
  • Supports resolutions up to 1990 x 1400!
  • Dual Video units support two monitors. Quad Video units support four monitors.

  • Description

    Multihead ServSwitch, Quad Video, 4-Port (4 CPUs)


    Quick Facts

  • Share multiple monitors among multiple CPUs.
  • Supports resolutions up to 1990 x 1400!
  • Dual Video units support two monitors. Quad Video units support four monitors.

  • Further Details

  • Supports Windows 3.x/95/98, Windows NT, Windows 2000, UNIX, Linux, NetWare, OS/2, and more.
  • Ideal for use in banks, flight simulators, police control centers, and high-end publishing.
  • Use one keyboard and mouse for all your CPUs.
  • Access two or four IBM PC/AT® or PS/2 type CPUs with two or four video outputs.

    Today, many users are discovering that they can dramatically increase efficiency by connecting several monitors to one PC.

    The Multihead ServSwitch™ supports multiple monitors. When you switch between CPUs on this ServSwitch, you see all the monitors connected to each CPU—up to four monitors per CPU. So you always get the entire view.

    Imagine what you can do with more monitors connected to your PC. You can put each of several applications on a different monitor to eliminate tedious switching between applications. Or if you have an application that uses lots of small windows, you can expand it across several monitors to provide more work space.

    The Multihead ServSwitch is compatible with all IBM® PC/AT® or PS/2® type CPUs and most major operating systems including Windows® 3.x/95/98, Windows NT®, Windows 2000, UNIX®, Linux®, NetWare®, and OS/2®.

    The switch supports video up to 1990 x 1400 over coax cable at distances of up to 10 feet (3 m).

    For other distances and resolutions, or for compatibility questions, contact Tech Support.

  • Technical Specifications for Multihead ServSwitch, Quad Video, 4-Port (4 CPUs):

    Approvals CE
    Connectors CPU: Video: (2) or (4) HD15 F per CPU; Mouse: (1) 6-pin mini DIN F per CPU; Keyboard: (1): 6-pin mini DIN F per CPU;
    User: Video: (2) or (4) HD15 F; Mouse: (1) 6-pin mini-DIN F; Keyboard: (1) 6-pin mini DIN F;
    Options: (1) DB15 F; Power: (1) power jack;
    Remote controller/serial port: (1) DB15 F
    Indicators (7) LEDs
    Power From the interface; optional 5-VDC, 300-mA power supply available
    Dimensions 4.1"H x 10.3"W x 6"D (10.4 x 26.1 x 15.1 cm)
    Weight 5.5 lb. (2.5 kg)

    NOTE: For short-range connections between your Multihead ServSwitch and your control station or for additional monitors, use the cables that came with your equipment.

    These products work with:
    • ServSwitch Premium Coax CPU Cables (EHN408)
    • VGA Video Extension Cable (EVNPS06)
    • PS/2 to USB Flash Cable (EHN428)
    • PS/2 to Sun Flash Cable (EHN429)
    Questions? Contact Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Multihead ServSwitch, Quad Video, 4-Port (4 CPUs):

    Product Data Sheets

    Application Diagrams


    Connect your Multihead ServSwitch, Quad Video, 4-Port (4 CPUs) with:
