Networking > Industrial

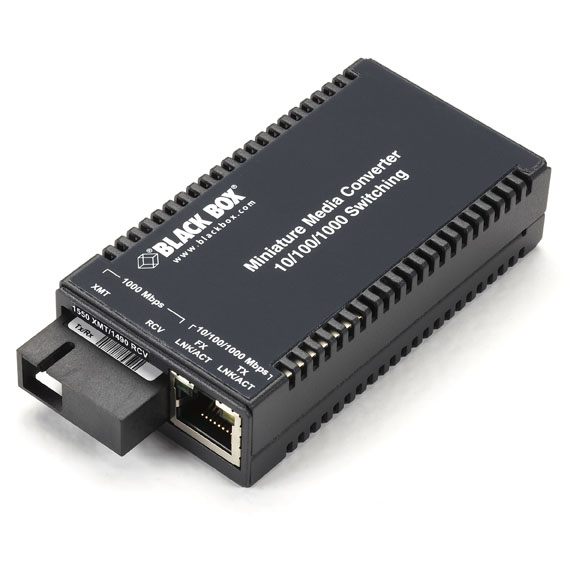

click photo to enlarge

LGC130A-R2

Photo may show similar product

Other views

MultiPower Miniature Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-SSLX, Single-Strand, Single-Mode, 1550-nm TX/1490-nm RX, 60 km, SC

Save by extending your Gigabit network over a single strand of fiber.

LGC130A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Converts 10-, 100-, or 1000-Mbps copper to 1000-Mbps single-mode fiber operating at 1490- and 1550-nm wavelengths.
  • Because it uses only a single strand of fiber, you can maximize the use of your fiber infrastructure.
  • Must be used as a pair with LGC129A-R2.
  • True Layer 2 media conversion from copper to fiber.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply, a PC’s USB port, or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Description

    MultiPower Miniature Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-SSLX, Single-Strand, Single-Mode, 1550-nm TX/1490-nm RX, 60 km, SC


    Quick Facts

  • Converts 10-, 100-, or 1000-Mbps copper to 1000-Mbps single-mode fiber operating at 1490- and 1550-nm wavelengths.
  • Because it uses only a single strand of fiber, you can maximize the use of your fiber infrastructure.
  • Must be used as a pair with LGC129A-R2.
  • True Layer 2 media conversion from copper to fiber.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply, a PC’s USB port, or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Further Details

    Bring fiber to the desktop, even to very remote locations. This single-strand fiber media converter enables you to make two Ethernet connections over a duplex fiber cable, so you need to run less fiber.

    Black Box® Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC’s copper port with a CAT5e cable, then connect a fiber cable to the converter’s other side. That’s all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

    This single-mode single-strand fiber converter supports distances of up to 60 kilometers (37.3 mi.) over a single fiber strand. Maximum fiber use plus autosensing 10/100/1000 ports make this an extremely versatile choice for your fiber infrastructure.

    This converter is a Layer 2 media converter. Layer 2 media converters increase network efficiency and reduce network overhead, significantly increasing data throughput. Because Layer 2 media converters are also switches, they incorporate 10/100 or 10/100/1000 ports in contrast to the single-speed ports of Layer 1 converters. You can set the RJ-45 ports for autonegotiation or set them for 10-, 100-, or 1000-Mbps speed as well as for half- or full-duplex. The fiber port can be set for half- or full-duplex, too.

    Twisted-pair ports feature autocrossover ports to eliminate the worry of whether to use straight- or cross-pinned cabling. This built-in MDI/MDI-X function determines automatically whether the converter has to cross over between the four pairs on the twisted-pair port’s RJ-45 connector.

    For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), or through the optional rackmount PowerTray (LHC018A-AC-R2).


    NOTE: This is a single-strand model which must be used in complementary pairs—use LGC129A-R2 with LGC130A-R2.

    NOTE: The included power supply doesn’t work with previous versions of this model (LGC130A).

    This product works with:
  • Miniature Media Converter USB Power Adapter Cable (LHC021A)
  • Miniature Media Converter Power Tray (LHC018A-AC-R2)
  • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
  • Single-Mode Duplex Fiber Optic Cable (EFN310)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for MultiPower Miniature Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-SSLX, Single-Strand, Single-Mode, 1550-nm TX/1490-nm RX, 60 km, SC :

    Cable Requirements — Twisted pair: CAT5e or above, shielded or unshielded;
    Single-mode fiber: 9-/125-µm single-strand
    Environmental — Operating temperature: +32 to +104°F (+0° to +40°C);
    Storage temperature: 0 to 160°F (-20 to +70°C);
    Humidity: 5 to 95%, noncondensing
    CE Approval — Yes
    Connectors — (1) RJ-45, with autocross for MDI-II/MDI-X; (1) SC
    Indicators — LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT;
    Per fiber port: (1) XMT, (1) RCV
    Power — From the included external 100–240-VAC, 50–60-Hz adapter;
    Via USB Power Adapter Cable (LHC021A) connected to a computer’s USB port;
    From the PowerTray with a 100–240 VAC, 50–60 Hz (LHC018A-AC-R2)
    Size — 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)

    NOTE: This is a single-strand model which must be used in complementary pairs—use LGC129A-R2 with LGC130A-R2.

    NOTE: The included power supply doesn’t work with previous versions of this model (LGC130A).

    This product works with:
  • Miniature Media Converter USB Power Adapter Cable (LHC021A)
  • Miniature Media Converter Power Tray (LHC018A-AC-R2)
  • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
  • Single-Mode Duplex Fiber Optic Cable (EFN310)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
