Networking > Industrial

click photo to enlarge

LGC013A-R2

Photo may show similar product

Other views

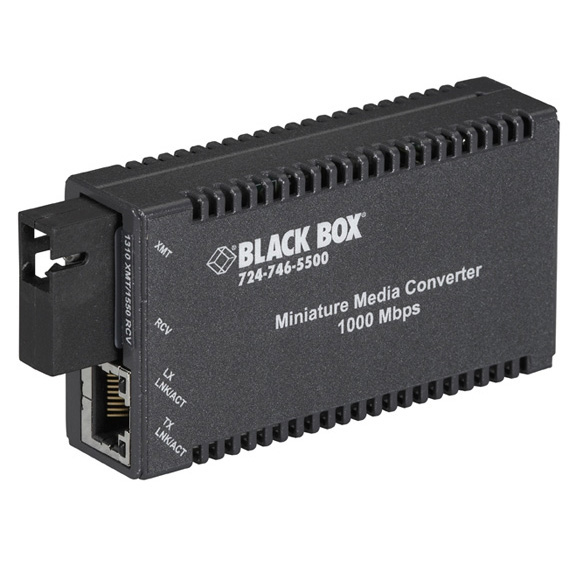

MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Mode, 1550-nm, 70 km, SC

Connect Gigabit Ethernet copper ports to fiber optic cable.

LGC013A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Connect Gigabit Ethernet copper ports to fiber optic cable.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Description

    MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Mode, 1550-nm, 70 km, SC


    Quick Facts

  • Connect Gigabit Ethernet copper ports to fiber optic cable.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Further Details

    Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.

    This Black Box® Miniature Media Converter makes it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC’s copper port with a CAT5 cable, then connect a fiber cable to the converter’s other side. That’s all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

    This single-mode duplex fiber converter supports distances of up to 70 km (43.5 mi.).

    For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).


    Technical Specifications for MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Mode, 1550-nm, 70 km, SC:

    Cable Requirements — Twisted pair: CAT5e or above, shielded or unshielded;
    Single-mode fiber: 9-/125-µm duplex
    Environmental — Operating temperature: +32 to +104°F (+0° to +40°C);
    Storage temperature: 0 to 160°F (-20 to +70°C);
    Humidity: 5 to 95%, noncondensing
    CE Approval — Yes
    Connectors — (1) RJ-45, with autocross for MDI-II/MDI-X; (1) pair of SC
    Indicators — LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT;
    Per fiber port: (1) XMT, (1) RCV
    Power — From the included external 100–240-VAC, 50–60-Hz adapter;
    From the optional PowerTray (LHC018A-AC-R2) with a 100–240 VAC, 50–60 Hz power supply
    Size — 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)

    This product works with:
  • Miniature Media Converter Power Tray (LHC018A-AC-R2)
  • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
  • Single-Mode Duplex Fiber Optic Cable (EFN310)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Mode, 1550-nm, 70 km, SC:

    Manuals

    • MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m,
      (Version 1)

    Product Data Sheets

    Black Box Explains


    Connect your MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Mode, 1550-nm, 70 km, SC with:

    Accessory: LHC018A-AC-R2

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Accessory: LGC010A-R2

    MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC

    MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: EFN5009

    ST–ST, PVC, Custom Lengths

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, Custom Lengths
