Networking > Media Converters

click photo to enlarge

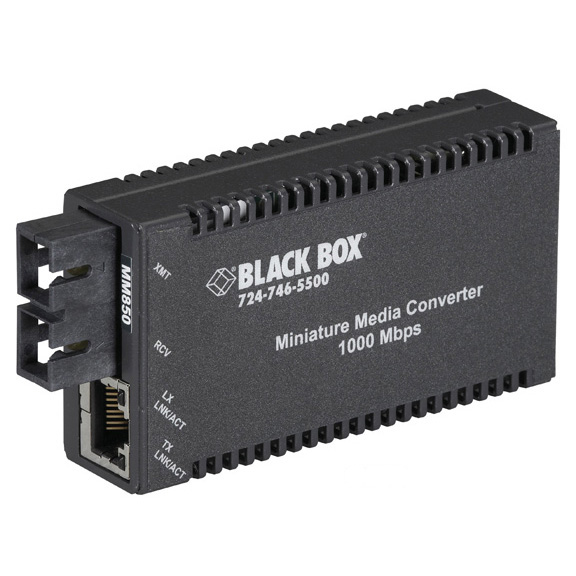

LGC010A-R2

Photo may show similar product

Other views

MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC

Connect Gigabit Ethernet copper ports to fiber optic cable.

LGC010A-R2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Description

    MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC


    Quick Facts

  • Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Powered by a universal AC power supply or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Further Details

    BLACK BOX® Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

    Choose from multimode and single-mode duplex fiber versions.

    For extra versatility, you can power the Miniature Media Converter through the external AC power supply included with each converter or through the optional rackmount PowerTray (sold separately).


    Technical Specifications for MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC:

    Cable Requirements Twisted pair: CAT5e or above, shielded or unshielded;
    Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex;
    Single-mode fiber: 9-/125-µm duplex or single-strand
    Environmental Operating temperature: +32 to +104°F (+0° to +40°C);
    Storage temperature: 0 to 160°F (-20 to +70°C);
    Humidity: 5 to 95%, noncondensing
    CE Approval Yes
    Connectors (1) RJ-45, with autocross for MDI-II/MDI-X; (1) pair of SC
    Indicators LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT;
    Per fiber port: (1) XMT, (1) RCV
    Power From the included external 100-240-VAC, 50-60-Hz adapter;
    From the optional PowerTray (LHC018A-AC-R2) with a 100-240 VAC, 50-60 Hz power supply
    Size 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)
    This product works with:
    • Miniature Media Converter Power Trays
    • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
    • Premium Ceramic Multimode Fiber Optic Cable (EFN110)
    • Single-Mode Duplex Fiber Optic Cable (EFN310)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC:

    Manuals

    • MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m,
      (Version 1)

    Product Data Sheets


    Connect your MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Multimode, 850-nm, 220 m, SC with:

    Accessory: EFN110-001M-SCSC

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cable, SC–SC, Duplex, Riser, 1-m (3.2-ft.)

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cable, SC–SC, Duplex, Riser, 1-m (3.2-ft.)

    Accessory: EFN310-001M-SCSC

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, SC–SC, PVC, 1-m (3.2-ft.)

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, SC–SC, PVC, 1-m (3.2-ft.)

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: LGC014A-R2

    MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Strand, Single-Mode 1310-nm TX/1550-nm RX, 10 km, SC

    MultiPower Miniature Media Converter, 1000-Mbps Copper to 1000-Mbps Fiber, Single-Strand, Single-Mode 1310-nm TX/1550-nm RX, 10 km, SC

    Accessory: LHC018A-AC-R2

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Accessory: LXC-DR

    DIN Rail Clip for MultiPower Miniature and Industrial MultiPower Media Converters

    DIN Rail Clip for MultiPower Miniature and Industrial MultiPower Media Converters

    Accessory: LMM091P-R2

    Spare 5-VDC AC Power Supply for Miniature Media Converters

    Spare 5-VDC AC Power Supply for Miniature Media Converters

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $39.10

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $78.19

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.



    Add to Cart

    Price: $390.95

    Quantity Available: 84

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.781 lbs.
    HxWxD: 1.5 x 5.25 x 7.25 in.
