Networking > Industrial

click photo to enlarge

LHC029A-R2

Photo may show similar product

Other views

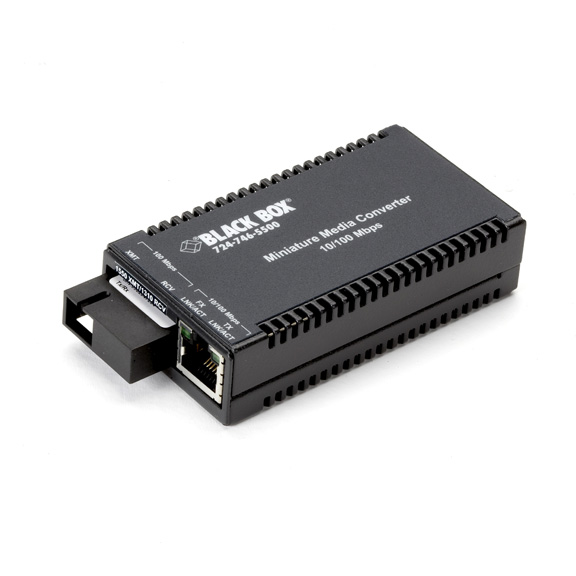

MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 1550-nm TX/1310-nm RX, SC, 20 km

Connect Ethernet or Fast Ethernet to fiber optic cable with this compact converter.

LHC029A-R2

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • More convenient and less expensive than installing fiber NICs.
  • Connect Ethernet or Fast Ethernet to fiber optic cable.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Autonegotiate for speed and duplex.
  • Powered by a universal AC power supply, a PC’s USB port, or the optional rackmountable PowerTray.

  • Description

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 1550-nm TX/1310-nm RX, SC, 20 km


    Quick Facts

  • More convenient and less expensive than installing fiber NICs.
  • Connect Ethernet or Fast Ethernet to fiber optic cable.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.
  • Autonegotiate for speed and duplex.
  • Powered by a universal AC power supply, a PC’s USB port, or the optional rackmountable PowerTray.

  • Further Details

  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.

  • Black Box® MultiPower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a MultiPower Miniature Media Converter to your PC’s copper port with a CAT5 cable, then connect a fiber cable to the converter’s other side. That’s all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

    The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port.

    Choose from multimode and single-mode single-strand fiber versions. Single-mode media converters support distances of 20 kilometers (12.4 mi.) or 40 kilometers (24.8 mi.), depending on the model you order. The single-strand single-mode version featured here supports distances up to 20 kilometers.

    For extra versatility, you can power the MultiPower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (which plugs into a PC’s USB port and is sold separately), or through the optional rackmount PowerTray (sold separately). Available with AC or DC power, the PowerTray provides power for up to 18 converters in only 5U of rack space. Rackmount ears are included.

    NOTE: Single-strand models must be used in matching pairs; use this model with the LHC028A.

    This product works with:
    • Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 1310-nm TX/1550-nm RX, SC, 20 km • Minature Media Converter USB Power Adapter Cable (LHC021A)
    • Minature Media Converter Power Trays (LHC018-AC-R2, LHC018A-DC-R3)
    • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
    • Premium Ceramic Multimode Fiber Optic Cable (EFN110)
    • Single-Mode Duplex Fiber Optic Cable (EFN310)
    Questions? Contact our FREE Tech Support.


    Technical Specifications for MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 1550-nm TX/1310-nm RX, SC, 20 km:

    Cable Requirements — Twisted pair: CAT5 or above, shielded or unshielded;
    Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex;
    Single-mode fiber: 9-/125-µm single-strand
    CE Approval — Yes
    Connectors — (1) RJ-45, with autocross for MDI-II/MDI-X
    Indicators — LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT;
    Per fiber port: (1) XMT, (1) RCV
    Power — From the included external 100–240-VAC, 50–60-Hz adapter;
    Via USB Power Adapter Cable (LHC021A) connected to a computer’s USB port;
    From the PowerTray with a 100–240 VAC, 50–60 Hz (LHC018A-AC-R2) or 7–50 VDC (LHC018A-DC-R2) power supply
    Size — 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)

    NOTE: Single-strand models must be used in matching pairs; use this model with the LHC028A.

    This product works with:
    • Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 110-nm TX/1550-nm RX, SC, 20 km • Minature Media Converter USB Power Adapter Cable (LHC021A)
    • Minature Media Converter Power Trays (LHC018-AC-R2, LHC018A-DC-R3)
    • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
    • Premium Ceramic Multimode Fiber Optic Cable (EFN110)
    • Single-Mode Duplex Fiber Optic Cable (EFN310)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 1550-nm TX/1310-nm RX, SC, 20 km:


    Connect your MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, Single-Mode, 1550-nm TX/1310-nm RX, SC, 20 km with:

    Accessory: LHC018A-AC-R2

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Accessory: LHC028A-R2

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 20 km, 1310-nm Single-Mode, TX/1550-nm RX, SC

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 20 km, 1310-nm Single-Mode, TX/1550-nm RX, SC

    Accessory: LHC021A

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable
