LGC135A

Photo may show similar product

Other views

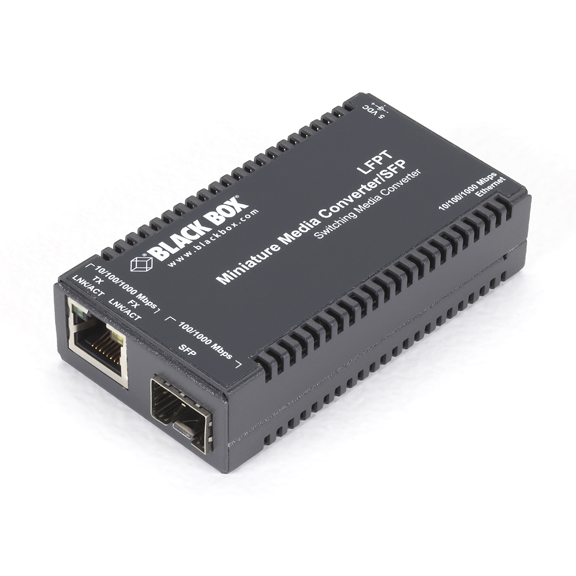

MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to SFP

This tiny Gigabit converter automatically senses speed on the copper side.

LGC135A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Connect Ethernet, Fast Ethernet, or Gigabit Ethernet copper ports to fiber optic cable.


  • Description

    MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to SFP


    Quick Facts

  • Connect Ethernet, Fast Ethernet, or Gigabit Ethernet copper ports to fiber optic cable.

  • Further Details

  • Autosensing copper ports make them perfect for migrating networks.
  • Accepts 1250-Mbps SFPs.
  • >
  • Use as standalone media converters or rackmount in the optional PowerTray.
  • Powered by its universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.
  • Easy to install. Just plug and play.
  • Compact size.
  • Uses inexpensive CAT5e twisted-pair cable on the copper side.
  • Features Link Fault Pass-Through (LFPT).
  • This Black Box® Multipower Miniature Media Converter links 10-, 100-, or 1000-Mbps segments to fiber cabling. An SFP port enables you to use an SFP to link the converter to many kinds of fiber cable.

    Choose from multimode and single-mode SFPs. With a single-mode SFP, the media converter supports distances of to 40 kilometers (24.8 mi.), even 70 kilometers (43.5 mi.), depending on the model you order.

    For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (which plugs into a PC's USB port and is sold separately), or through the optional rackmount PowerTray (sold separately). The PowerTray provides power for up to 18 converters in only 5U of rack space. Rackmount ears are included.


    Technical Specifications for MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to SFP:

    Operating Environment
    Temperature: 32 to 122° F (0° to 50° C);
    Humidity: 5 to 95%, noncondensing
    Cable Requirements Twisted pair: CAT5 or above, shielded or unshielded;
    Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex;
    Single-mode fiber: 9-/125-µm duplex
    CE Approval Yes
    RoHS Yes
    Connectors (1) RJ-45, with autocross for MDI-II/MDI-X, (1) SFP
    Power From the included external 100-240-VAC, 50-60-Hz, autosensing adapter;
    Via the optional USB Power Adapter Cable (LHC021A) connected to computer's USB port;
    From the optional PowerTray with a 100-240 VAC, 50-60-Hz (LHC018A-AC-R2) power supply;
    Draw: 96 watts, fully loaded
    Dimensions 1.8"H x 0.8"W x 3.4"D (2 x 4.6 x 8.6 cm)
    Weight 0.3 lb. (0.1 kg)

    This product works with:
  • 1250-Mbps Fiber SFPs (LFP411, LFP412, LFP413, LFP414)
  • 150-Mbps Fiber SFPs (LFP401, LFP402, LFP403)
  • Miniature Media Converter USB Power Adapter Cable
  • Miniature Media Converter Power Trays
  • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85)
  • Premium Ceramic, Multimode, 62.5-Micron Fiber Optic Patch Cable, ST–SC (EFN110-SCSC)
  • Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, SC–SC (EFN310-SCSC)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to SFP:

    Manuals

    • MultiPower Miniature Media Converter (10-/100-/1000-Mbps Copper to SFP) User Manual
      User Manual for the LGC135A (Version 1)

    Black Box Explains


    Connect your MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to SFP with:

    Accessory: LHC018A-AC-R2

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Accessory: LHC021A

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

    Accessory: LFP411

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m

    Accessory: LFP412

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, LC, 2 km

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, LC, 2 km

    Accessory: LFP413

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km

    Accessory: LFP414

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 30 km

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 30 km

    Double Diamond Warranty

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $27.80

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $55.59

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to SFP comes with a standard 6 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    MultiPower Miniature Media Converters, 10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Fiber Autosensing, Multimode 850-nm, 300 m, SC LGC120A-R2 $514.95

    MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Duplex Fiber, Single-Mode 1310-nm, 10 km, SC LGC121A-R2 $629.95

    MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber, Autosensing, Duplex, Single-Mode, 1310-nm, 40 km, SC LGC122A-R2 $675.95

    MultiPower Miniature Media Converter, 10-/100-/1000-Mbps Copper to 1000-Mbps Fiber, Autosensing, Duplex, Single-Mode, 1550-nm, 80 km, SC LGC124A-R2 $1,102.95
