Datacom > Modems & CSUs

click photo to enlarge

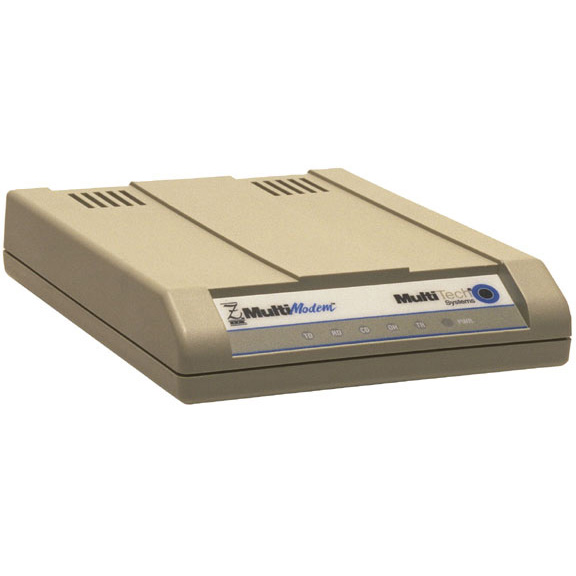

MT5656ZDX

Photo may show similar product

Other views

MultiModem ZDX, MultiModem® ZDX

Surf and download at the highest dialup speed possible: 56 kbps.

MT5656ZDX

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Works with dialup lines for connectivity at
    56 kbps.
  • Sends faxes at
    14.4 kbps.

  • Description

    MultiModem® ZDX


    Quick Facts

  • Works with dialup lines for connectivity at
    56 kbps.
  • Sends faxes at
    14.4 kbps.

  • Further Details

  • Supports asynchronous data.
  • V.44 data compression delivers the fastest data throughput.
  • Includes data and fax software for Windows.
  • Plug-and-play operation.
  • Automatically detects data rates and answers calls.
  • Includes Caller ID.
  • Features phone number storage for automatic dialing.
  • Modem on-hold capability.
  • Self-resetting lightning protection.
  • Small footprint and stackable design makes it ideal for UNIX®, medical, and retail POS applications.
  • Can be used with the Multi-Tech® ZDX Modem Rack (ZDXRACK-INTL).

  • Treat yourself to one of the best and most reliable data/fax modems you can buy. With the MultiModem ZDX, you can surf the Internet, send data and e-mails, and transfer documents and more at the fastest dialup speed possible: 56 kbps. Plus, you can send and receive faxes at 14.4 kbps.

    Easy to drive.
    The MultiModem ZDX is super easy to use. It’s virtually plug and play. An integrated “virtual modem drive” differentiates between incoming data and fax calls and automatically starts up the appropriate Windows® software. It also automatically detects data rates and answers calls. This ensures optimum file transfer conditions with asynchronous high-speed communications.

    Watch for slow-moving vehicles.
    The modem slows down automatically for older equipment, too. This also gives you the ability to exchange faxes with almost any fax machine, card, or modem in the world.

    Designed for convenience.
    The modem features Caller ID and an on-hold capability. That way you can put your modem transmission on hold for up to 16 minutes while you talk on the phone. The modem also features phone number storage for automatic calling.

    Put it on the rack.
    Depending on your application, you can rackmount the MultiModem ZDX. The modem has a rackmountable chassis that consolidates space and power for up to 12 modems when using the Multi-Tech ZDX Modem Rack (ZDXRACK-INTL).


    Technical Specifications for MultiModem ZDX, MultiModem® ZDX:

    Data Rates — Data: V.92: 56-kbps download; 48-kbps upload; V.90: 56-kbps download; 33.6-kbps upload;
    Fax: 14.4 kbps
    Diagnostics — Local or Remote loop, autotest
    Flow Control — X-ON/X-OFF, RTS/CTS
    Operation — Full-duplex asynchronous serial on a switched network
    Standards — Data: V.92, V.90, K56flex™, V.34+;
    Error correction: V.42;
    Fax: V.17, Group 3; Class 1, Class 2;
    Data Compression: V.42 bis, MNP® Class 5
    System Support — Windows 95/98/Me/XP, Windows NT®, Windows 2000, Windows 2003, SCO OpenServer, Linux, and others
    CE Approval — Yes
    Connectors — (1) DB25 F, (2) RJ-11
    Indicators — (10) LEDs: (1) each for TX, RX, CD, OH, TR, EC, Fax; (3) Data Rate
    Power — 115 VAC, 60 Hz
    Size — 1"H x 4.3"W x 5.7"D (2.5 x 10.9 x 14.5 cm)
    Weight — 0.5 lb. (0.2 kg)
    NOTE: Although these faxmodems are capable of 56-kbps downloads, FCC regulations limit download speeds to 53 kbps.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
