Networking > Extenders

click photo to enlarge

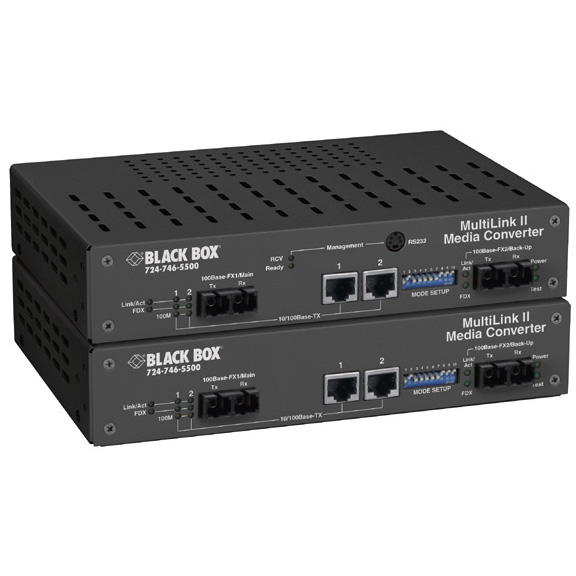

LB1302A-SC

Photo may show similar product

Other views

MultiLink II Media Converter, Managed, Multimode, 1310 nm, 2 kilometers, SC

Falls back to a second fiber connection automatically if the first goes down.

LB1302A-SC

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Connects two 10BASE-T/100BASE-TX links over a primary fiber pair.
  • In backup mode, the second fiber port acts as a backup and takes over automatically if the first port fails.
  • Layer 2 switching media conversion with custom VLAN support.

  • Description

    MultiLink II Media Converter, Managed, Multimode, 1310 nm, 2 kilometers, SC


    Quick Facts

  • Connects two 10BASE-T/100BASE-TX links over a primary fiber pair.
  • In backup mode, the second fiber port acts as a backup and takes over automatically if the first port fails.
  • Layer 2 switching media conversion with custom VLAN support.

  • Further Details

  • For versions that connect four RJ-45 ports over a single fiber port, see our MultiLink (LB1350A).
  • Create ring or string topologies.
  • Supports multimode fiber to 2 kilometers.
  • Buffered media conversion eliminates Path Delay Value (PDV) calculations.


  • As with our original MultiLink Converters, MultiLink II Media Converters are advanced Layer 2 devices optimized for network extension and link aggregation. The MultiLink II, however, also supports dual fiber connections and includes a mode for setting redundant fiber link operation or ring topology access. Operating in backup mode, the MultiLink II switches communications to the backup fiber link automatically if the primary link fails.

    MultiLink II Media Converters are designed to extend your network across fiber optic cable. But they do more than ordinary media converters, which merely connect a single RJ-45 Ethernet connection to fiber for long-distance transmission. MultiLink Media II Converters can link two RJ-45 Ethernet ports over one or two ports of single- or multimode fiber optic cable. And because they offer redundant-link capabilities, they’re ideal for mission-critical applications.

    MultiLink II Media Converters also feature:
  • Buffered conversion between 10-/100-Mbps copper Ethernet ports and 100-Mbps fiber ports.
  • Autonegotiation on both RJ-45 ports for speed and duplexity, even on mixed 10/100 Ethernet networks. They support half- and full-duplex copper networks independent of speed.
  • Autocross feature on RJ-45 ports eliminates need for extra cables.
  • Custom VLAN feature mode provides an extra layer of security, keeping traffic for each copper port totally separate from the other ports.
  • VLAN feature and backup mode can be disabled, turning the device into a switch.


  • Technical Specifications for MultiLink II Media Converter, Managed, Multimode, 1310 nm, 2 kilometers, SC:

    Distance (Maximum) — 2 km (1.2 mi.)
    Connectors — (2) RJ-45, (2) pair of SC, (1) 4-pin DIN management port
    Power — 100–240 VAC, 50–60 Hz, autosensing, internal power supply
    Size — 1.7"H x 8.8"W x 5.9"D (4.3 x 22.4 x 15 cm)
    Weight — 1.3 lb. (0.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
