Datacom > Extenders & Line Drivers

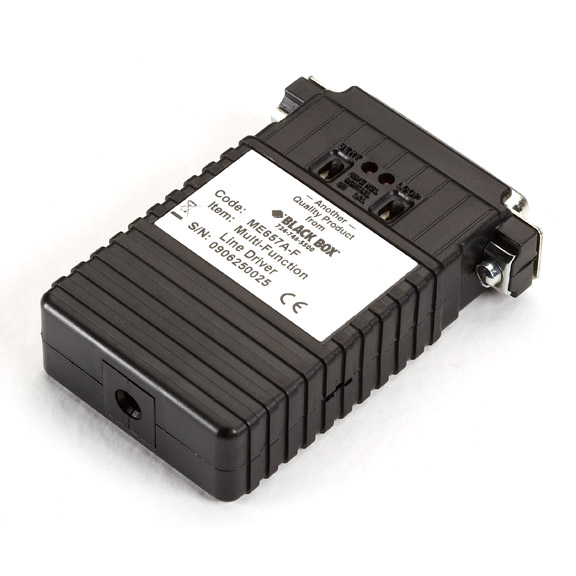

click photo to enlarge

ME657A-F

Photo may show similar product

Other views

Multi-Function Line Driver, DB25 Female, Terminal Block

Send data up to 6 miles at 38.4 kbps.

ME657A-F

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Speeds up to 38.4 kbps.
  • Distances up to 6 miles (9.6 km).
  • Async or sync operation, point-to-point or multipoint.
  • Nonpowered, so you can install it where it's most convenient.
  • Internal, external, or receive loopback clocking in sync mode.
  • V.54 loopback and V.52 BERT pattern generator.

  • Description

    Multi-Function Line Driver, DB25 Female, Terminal Block


    Quick Facts

  • Speeds up to 38.4 kbps.
  • Distances up to 6 miles (9.6 km).
  • Async or sync operation, point-to-point or multipoint.
  • Nonpowered, so you can install it where it's most convenient.
  • Internal, external, or receive loopback clocking in sync mode.
  • V.54 loopback and V.52 BERT pattern generator.

  • Further Details

  • Built-in LEDs enable you to monitor test mode operation.
  • Transformer isolation and surge protection guard against data loss.

    The BLACK BOX® Multifunction Line Driver gives you the distance you need. Plus, this miniature modem requires no external power, so you can install it where it’s most convenient.

    NOTE: Must be used in pairs.

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A-PB-1100, etc.)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Multi-Function Line Driver, DB25 Female, Terminal Block:

    Clocking — Internal, external, receive
    Distance (Maximum) — 6 mi. (9.6 km)
    Line Type — (2) twisted pair
    Operation — 4-wire full-duplex, point-to-point or multipoint
    Protocol — Asynchronous or synchronous
    Speed (Maximum) — 38.4 kbps
    CE Approval — Yes
    Interface — RS-232 (DCE)
    Connectors — (1) DB25 F, (1) terminal block
    Indicators — BERT, Loop
    Power — 6 VDC from the interface; Pins 4, 9, 20
    Size — 0.8"H x 2.1"W x 3"D (2 x 5.3 x 7.6 cm)
    Weight — 0.1 lb. (<0.1 kg)
    NOTE: Must be used in pairs.

    This product works with:
    • GigaBase® 350 CAT5e, 350-MHz Bulk Cables, 4-Pair (EYN851A-PB-1100, etc.)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
