Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

AC139A

Photo may show similar product

Other views

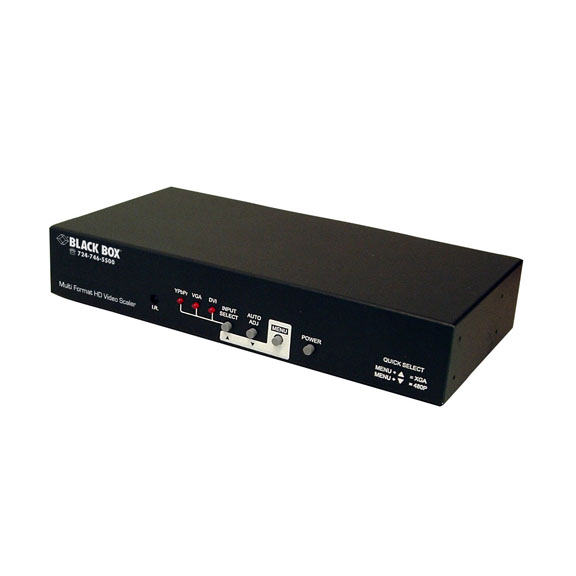

Multi-Format HD Video Scaler

Convert different resolution formats for display with one versatile scaler.

AC139A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • This powerful, high-definition digital (DVI/HDMI) and analog (PC VGA/YPbPr) scaler does the job of multiple products, making your job easier.
  • Produces professional-grade, superior video output for a perfect image on an LCD or other digital signage display.

  • Description

    Multi-Format HD Video Scaler


    Quick Facts

  • This powerful, high-definition digital (DVI/HDMI) and analog (PC VGA/YPbPr) scaler does the job of multiple products, making your job easier.
  • Produces professional-grade, superior video output for a perfect image on an LCD or other digital signage display.

  • Further Details

  • Accepts PC RGB (up to UXGA), HD Component (480i up to 1080p), and DVI (up to WUXGA) and scales them to DVI and analog outputs at the resolutions you specify.
  • HDCP (HDMI) compliant DVI input and output.
  • Output resolution selectable from 480i to 1080p (HDTV) and VGA to WUXGA (PC).
  • RS-232, IR-remote, or front-panel controllable.
  • Adjustable brightness, contrast, and RGB levels.
  • Provides sharp, flicker-free output.


  • NOTE: For HDMI connections, you’ll need an adapter. To order, contact our FREE Tech Support.


    Technical Specifications for Multi-Format HD Video Scaler:

    Input Formats Supported — DVI/HDMI: 480i/576i, 480p/576p, 720p at 60/50 Hz, 1080i at 60/50 Hz, 1080p at 60/50 Hz, VGA at 60/72/75/85 Hz, SVGA at 56/60/72/75/85 Hz, XGA at 60/70/75/85 Hz, SXGA at 60/75/85 Hz, UXGA at 60 Hz, WXGA at 60 Hz (1280 x 800), WSXGA at 60 Hz (1680 x 1050), WUXGA at 60 Hz (1920 x 1200);
    VGA: All of the above except for 480i/576i, 480p/576p, 1080i;
    YPbPr: 480i/576i, 480p/576p, 720p at 60/50 Hz, 1080i at 60/50 Hz, 1080p at 60/50 Hz
    Output Formats Supported — DVI/HDMI: 480i/576i, 480p/576p, 720p at 60/50 Hz, 1080i at 60/50 Hz, 1080p at 60/50 Hz, VGA at 60 Hz, SVGA at 60 Hz, XGA at 60 Hz, SXGA at 60 Hz, UXGA at 60 Hz, WXGA at 60 Hz (1280 x 800), XGA at 60 Hz (1680 x 1050), WUXGA at 60 Hz (1920 x 1200);
    HD15: All of the above except for WSXGA, WUXGA
    CE Approval — Yes
    Connectors — Input: (1) DVI-I F, (1) HD15 F, (1) Component (YPbPr);
    Output: (1) DVI-I F, (1) HD15 F;
    Control: (1) DB9 F (RS-232)
    Power — 90–264 VAC, 50–60 Hz, autosensing
    Size — 1.75"H x 9.4"W x 5"D (4.4 x 23.9 x 12.7 cm)
    Weight — 2 lb. (0.9 kg)
    NOTE: For HDMI connections, you’ll need an adapter. To order, contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Multi-Format HD Video Scaler:

    Manuals

    • Multi Format HD Video Scaler
      Installation/User (REV B)

    Product Data Sheets

    Application Diagrams


    Connect your Multi-Format HD Video Scaler with:

    Accessory: AVSWSC-MULTI-HDMI

    Multi-Format AV to HDMI Switching HD Scaler

    Multi-Format AV to HDMI Switching HD Scaler

    Accessory: AVSWSC-MULTI-EAR

    Rackmount Bracket for Multi-Format Scalers

    Rackmount Bracket for Multi-Format Scalers

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $79.50

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $158.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Multi-Format HD Video Scaler AC139A $794.95

    VGA to Video Ultimate Pro AC340A $121.95

    VGA/HDTV Scaler Plus AC345A-R2 $395.95

    Video to PC/HDTV Switching Scaler AC136A-R2 $662.95



    Add to Cart

    Price: $794.95

    Quantity

    Warranty

    Total

    In Stock

    Shipping Info

    In Stock - orders received before 8PM ET ship same day


    45-day return policy
