Video & Multimedia > Converters/Scalers

click photo to enlarge

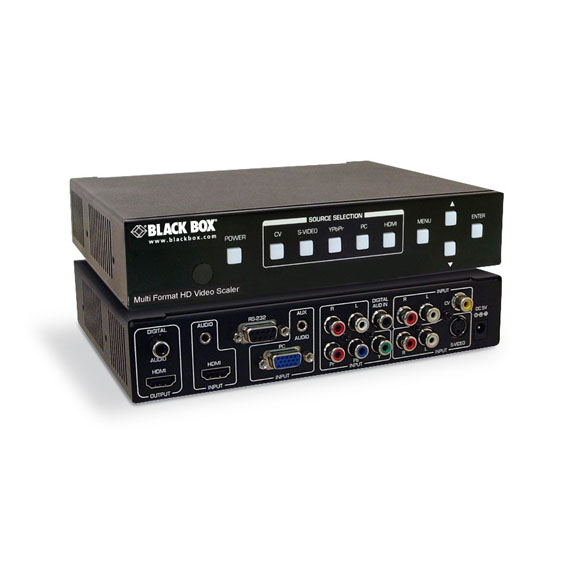

AVSWSC-MULTI-HDMI

Photo may show similar product

Other views

Multi-Format AV to HDMI Switching HD Scaler

Scale multiple types of video and audio for digital HDMI output.

AVSWSC-MULTI-HDMI

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Functions as an analog-to-digital video converter, scaler, and switch. Save costs and simplify your AV routing!
  • Features five input formats: analog VGA, Composite, Component, and S-Video, plus digital HDMI.
  • On its HDMI output, supports PC resolution up to 1920 x 1200 (WUXGA) and HDTV resolution up to 1080p.

  • Description

    Multi-Format AV to HDMI Switching HD Scaler


    Quick Facts

  • Functions as an analog-to-digital video converter, scaler, and switch. Save costs and simplify your AV routing!
  • Features five input formats: analog VGA, Composite, Component, and S-Video, plus digital HDMI.
  • On its HDMI output, supports PC resolution up to 1920 x 1200 (WUXGA) and HDTV resolution up to 1080p.

  • Further Details

  • Switch scaled digital output to any of its inputs.
  • Also supports audio. Converts digital and analog audio signals into digital format.
  • Eliminates the need for multiple cables. Sends digitized video and audio over a single HDMI cable.
  • To connect a DVI input device or display, just add an HDMI-to-DVI adapter.
  • Easy to control via its intuitive front-panel buttons or IR remote, or from an RS-232 console.
  • Adaptive 3D comb filter, digital noise reduction, and video de-interlacing features.
  • Compatible with NTSC and PAL standard video input.
  • Supports EDID for optimized video card-to-monitor communications.
  • Ideal for digital signage, broadcasting, and AV distribution applications.
  • Also great for high-end home/corporate theater or LCD projector presentation rooms.
  • Rackmountable with optional hardware.
  • RoHS compliant.


  • There’s no need to buy a bunch of devices to convert, scale, and switch inputs when routing analog video signals to a digital display. Not when you can do it all with one multi-input, multifunction box from Black Box.

    Featuring five distinct video inputs, the Multi-Format AV to HDMI Switching HD Scaler makes it easy to convert and scale various video formats for digital HDMI output.

    Scale analog PC (VGA), Component (YPbPr), Composite, and S-Video input for digital display at a number of different resolutions on a newer HDMI-compatible LCD or plasma screen. You can also reformat HDMI video input for output on another HDMI display at another resolution.

    Advanced video scaling gives you crisp, clear video output. An adaptive 3D comb filter, providing 3D motion and 3D de-interlacing, ensures a jitter-free picture, and reverse 3:2/2:2 pulldown provides crisp and clear de-interlacing of video originating from 24-fps film, such as DVD movies.

    Great for a number of professional AV applications
    Because the Multi-Format AV to HDMI Switching HD Scaler also enables you to switch scaled digital output to any of the AV inputs, it’s particularly ideal for broadcast studio and digital signage control applications.

    Use the HD scaler to switch and route video and audio signals from a mix of old and new source equipment. Connect a PC, VCR, DVD player, and a satellite set-top box to the scaler for output to an LCD or a plasma screen, a digital video projector, or any other HDMI-compliant device. It also simplifies the connection of multiple analog video devices to a display with just one HDMI port.

    Additionally, scaled video can be mirrored horizontally (via an X-axis flip function), so you can also use the scaler with rear-projection or teleprompt systems.

    Easy to use and optimize for clear video output.
    Control switching one of three ways: using the scaler’s illuminated front-panel push buttons, the included IR remote controller, or through an RS-232 console plugged into the scaler’s rear serial port.

    On-screen menus make it easy to program and control the Multi-Format AV to HDMI Switching HD Scaler. Not only can you set output resolution and aspect ratio (standard, 16:9, or 4:3), but also optimize video brightness, color, contrast, sharpness, and tint for the room or application.

    What’s included:
  • Switching HD Scaler unit
  • Universal AC power supply
  • (1) Composite video/audio cable, (3) RCA male/(3) RCA male
  • (1) Component (YPbPr) video cable, (3) RCA male/(3) BNC male
  • IR remote controller
  • User manual

    This product works with:
  • Rackmounts Brackets for Multi-Format AV to HDMi Switching HD Scaler (AVSWSC-MULTI-EAR)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Multi-Format AV to HDMI Switching HD Scaler:

    Input Formats Supported — HDMI/DVI: 480i/576i, 480p/576p, 720p at 60/50 Hz, 1080i at 60/50 Hz, 1080p at 60/50 Hz, VGA at 60/72/75/85 Hz, SVGA at 56/60/72/75/85 Hz, XGA at 60/70/75/85 Hz, SXGAat 60/75/85 Hz, UXGA at 60 Hz, WXGA at 60 Hz (1280 x 800), WSXGA at 60 Hz (1680 x 1050), WUXGA at 60 Hz (1920 x 1200), WXGA+ at 60 Hz (1440 x 900), SXGA+ at 60 Hz (1400 x 1050), WSXGA at 60 Hz (1680 x 1050), WUXGA at 60 Hz (1920 x 1200);
    VGA (PC): All the above resolutions except 480i/576i, 480p/576p;
    Component (YPbPr): 480i/576i, 480p/576p, 720p at 60/50 Hz, 1080i at 60/50 Hz, 1080p at 60/50 Hz
    Output Formats Supported —HDMI/DVI output formats: 480i/576i, 480p/576p, 720p at 60/50 Hz, 1080i at 60/50 Hz, 1080p at 60/50 Hz, VGA at 60 Hz, SVGA at 60 Hz, XGA at 60 Hz, SXGA at 60 Hz, UXGA at 60 Hz, WXGA at 60 Hz (1280 x 800), WXGA+ at 60 Hz (1440 x 900), SXGA+ at 60 Hz (1400 x 1050), WSXGA at 60 Hz (1680 x 1050), WUXGA at 60 Hz (1920 x 1200)
    CE Approval — Yes
    Connectors — Input: HDMI: (1) HDMI F with (1) 3.5-mm audio jack;
    VGA (PC): (1) HD15 F with (1) 3.5-mm auxiliary audio jack;
    Component: (3) RCA jacks (YPbPr) with (2) RCA audio jacks (L/R);
    Composite: (1) RCA jack (Y) with (2) RCA audio jacks (L/R);
    S-Video: (1) 4-pin mini DIN with (2) RCA audio jacks (L/R);
    Optional audio: (1) RCA audio jack;
    Output: (1) HDMI F with (1) RCA audio jack;
    Serial control: (1) DB9 F (RS-232)
    Power — Input: 90–264 VAC, 50–60 Hz, 7.5 W max.
    Size — 1.7"H x 8.2"W x 5.6"D (1.8 x 20.8 x 14.2 cm)
    Weight — 2 lb. (0.9 kg)
    This product works with:
  • Rackmount Brackets for Multi-Format AV to HDMi Switching HD Scaler (AVSWSC-MULTI-EAR)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Multi-Format AV to HDMI Switching HD Scaler:

    Manuals

    • Multi-Format AV to HDMI Switching HD Scaler Manual
      Manual for the AVSWSC-MULTI-HDMI.

    Product Data Sheets

    Black Box Explains


    Connect your Multi-Format AV to HDMI Switching HD Scaler with:

    Accessory: AVSWSC-MULTI-EAR

    Rackmount Bracket for Multi-Format Scalers

    Rackmount Bracket for Multi-Format Scalers

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $79.60

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $159.19
