Video & Multimedia > Extenders

click photo to enlarge

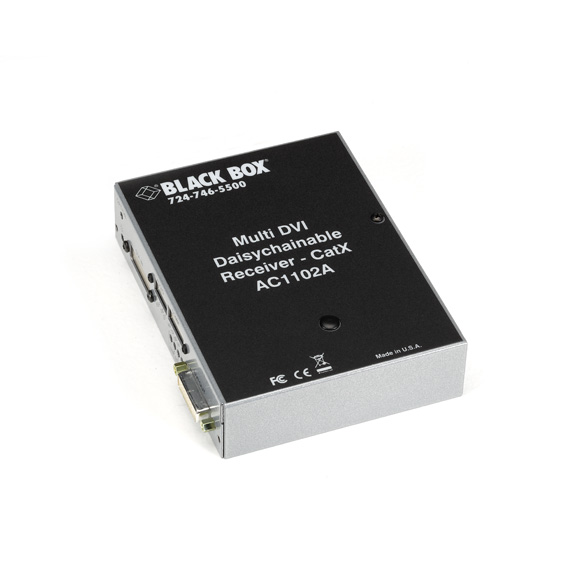

AC1102A

Photo may show similar product

Other views

Multi DVI-D CATx Extender Receiver (DVI-D Only)

Extend DVI video over CATx cable—or even fiber by adding optional modules.

AC1102A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • As a CATx-based extender receiver, extends high-resolution video up to 600 feet (183 m) over ordinary UTP.
  • Supports Full HD (1080p) DVI extension.

  • Description

    Multi DVI-D CATx Extender Receiver (DVI-D Only)


    Quick Facts

  • As a CATx-based extender receiver, extends high-resolution video up to 600 feet (183 m) over ordinary UTP.
  • Supports Full HD (1080p) DVI extension.

  • Further Details

  • Daisychainable system. Distributes signals from a single source to many screens.
  • Carries nearly all video formats.
  • Offers DDC/EDID support.
  • Simple to install, configure, and use.
  • Flexible distribution and configuration—fits most network footprints.
  • Durable case and design.
  • Add optional fiber modules to go farther—up to 10 kilometers (6.2 mi.) over single-mode fiber.

    Transmit high-definition DVI video over CATx copper with our Multi DVI-D Extenders.

    The model featured here is the DVD-D only receiver, which you pair with the compatible AC1100A transmitter for a complete Multi DVI-D CATx Extender system.

    The flexible, daisychainable Multi DVI-D CATx Extenders support all VESA modes to 1600 x 1200, as well as full HDTV formats up to 1080p.

    As standard, the Multi DVI-D Extenders transmit up to 600 feet (183 m) over CAT5, CAT5e, or CAT6 cable.

    But you can also convert the transmitters and receivers to extend over fiber simply by adding optional plug-and-play fiber modules (AC1105A–AC1106A). Depending on the version ordered, the optical fiber module sets transmit signals up to 500 meters (1604.4 ft.) over duplex multimode fiber or as far as 10 kilometers (6.2 mi.) over a single strand of single-mode fiber.

    You can even set up a mixed-media, multipoint daisychained receiver application. Signals from a single source, for instance, can be distributed to an unlimited number of displays around a campus using a single chain that includes fiber from one building to the next and UTP cable runs within each building.

    Plus, the system transmitters' local video port can be used for local monitoring or for cascading to any transmitter for additional outputs. To distribute signals to cascaded transmitters, simply add video splitters.

    Because the Multi DVI-D CATx Extenders use digital formatting, you get optimum signal repetition with ideal source replication over any supported distance. Plus they use a proprietary encoding algorithm for a higher degree of signal security in both copper and fiber applications.

    To add stereo audio and serial control capabilities to your video extension application, order the Multi DVI-D CATx Extenders for DVI-D/Stereo Audio/Addressable Duplex RS-232 (AC1103A–AC1104A). They enable you to independently control each connected display device.

    This product works with:
  • Multi DVI-D CATx Extender Transmitter (DVI-D Only) (AC1100A)
  • Rackmount Kit for (3) Multi DVI-D Extenders (AC1011)
  • To convert a transmitter/receiver for extending over fiber instead of CATx, also order a fiber module set:
  • Multi DVI-D Multimode Duplex Fiber Module Set, Transmitter/Receiver Pair, LC (AC1105A)
  • Multi DVI-D Single-Mode Simplex Fiber Module Set, Transmitter/Receiver Pair, LC (AC1106A)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Multi DVI-D CATx Extender Receiver (DVI-D Only):

    Distance (Maximum) Total end to end: Over CATx cable: 600 ft. (183 m);
    With optional Multi DVI-D Fiber Module Sets: Over multimode fiber cable: 500 m (1604.4 ft.); Over single-mode fiber cable: 10 km (6.2 mi.)
    Resolution (Maximum) 1600 x 1200 (including 1080p) providing graphic card supports reduced clock rate
    Video Transport Supported DVI-D single-link at 1.65 Gbps
    CE Approval Yes
    RoHS Yes
    Connectors CATx: (2) RJ-45;
    Video: (1) DVI-D F
    Power External: Input: 120/240 VAC, 50/60 Hz, switch-selectable;
    Output: 5-V;
    Consumption: 5 watts maximum
    Size 2"H x 4.1"W x 5.5"D (3 x 10.4 x 14 cm)
    Weight 1 lb. (0.5 kg)
    This product works with:
  • Multi DVI-D CATx Extender Transmitter (DVI-D Only) (AC1100A)
  • Rackmount Kit for (3) Multi DVI-D Extenders (AC1011)
  • To convert a transmitter/receiver for extending over fiber instead of CATx, also order a fiber module set:
  • Multi DVI-D Multimode Duplex Fiber Module Set, Transmitter/Receiver Pair, LC (AC1105A)
  • Multi DVI-D Single-Mode Simplex Fiber Module Set, Transmitter/Receiver Pair, LC (AC1106A)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
