Premises Security > Access Control

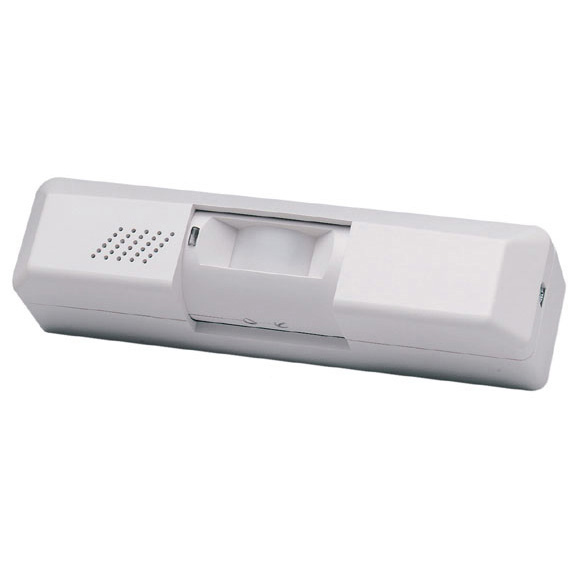

click photo to enlarge

6612

Photo may show similar product

Other views

Motion-Sensing Door Release

Automatic door exit device makes hands-free exit easy.

6612


Lifetime Warranty

Product Highlights

  • Makes hands-free door exit automatic.
  • Adjustable, timed output can be set from 5 to 60 seconds or more.
  • Mounts conveniently on the frame above the door.
  • Guaranteed for life!

  • Description

    Motion-Sensing Door Release


    Quick Facts

  • Makes hands-free door exit automatic.
  • Adjustable, timed output can be set from 5 to 60 seconds or more.
  • Mounts conveniently on the frame above the door.
  • Guaranteed for life!

  • Further Details

  • Detects oncoming traffic at an exit door.
  • Once oncoming pedestrian traffic is detected, the unit’s dual-relay outputs cut power to an electromagnetic lock while also signaling an access control system to unlock the door.


  • Technical Specifications for Motion-Sensing Door Release:

    Heated-Air Current Immunity — Temperature differential of 52º F (11º C), from the background, moving at a rate of 3 ft. (0.9 m) per second, across the field of view within 2 and 4 ft. (0.6 and 1.2 m) of sensor
    Operating Environment — Temperature: -4 to +131º F (-20 to +55º C);
    Humidity: 10 to 95% noncondensing
    RFI Immunity — 10 V/m at 27 MHz to 1 GHz; 100% at 0.1 to 2 Hz
    Power — Voltage: At 27 MHz to 1 GHz; 100% at 0.1 to 2 HA;
    Power — Voltage: 12 or 24 VDC;
    Current: 12 VDC: 45 mA maximum; 24 VDC: 60 mA;
    Relay contacts: 30 VDC at 1A
    Size — 1.7"H x 7.1"W x 1.7"D (4.3 x 18 x 4.3 cm)
    Weight — 0.3 lb. (0.1 kg)
    Warranty — Lifetime

    This product works with:
    • 6410 Series Egress Switch Bar
    • 6220 Series Door Cords
    • 4000 Series Plug-In Power Supplies
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
