Networking > Industrial

click photo to enlarge

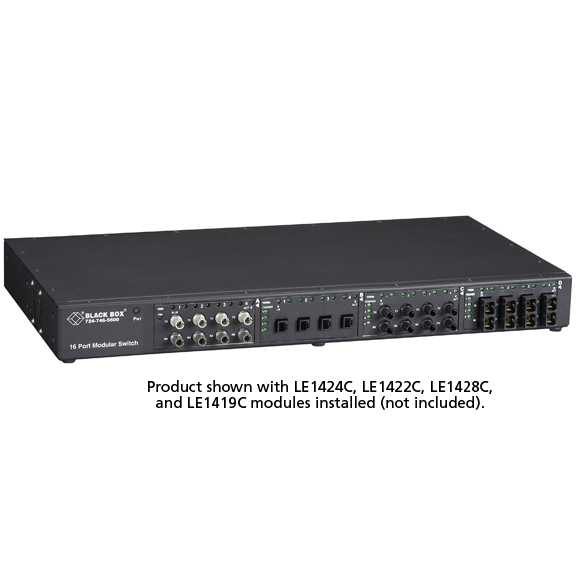

LE1416A

Photo may show similar product

Other views

Modular Fiber Switch, 16-Port (with Rackmount Kit)

The easy, flexible way to increase network efficiency!

LE1416A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Configure with as few as four ports, then add modules as your network requirements grow.
  • Mix and match fiber ports with twisted-pair ports. Mix and match speeds, too: 10 Mbps, 10/100 Mbps, and 100 Mbps.

  • Description

    Modular Fiber Switch, 16-Port (with Rackmount Kit)


    Quick Facts

  • Configure with as few as four ports, then add modules as your network requirements grow.
  • Mix and match fiber ports with twisted-pair ports. Mix and match speeds, too: 10 Mbps, 10/100 Mbps, and 100 Mbps.

  • Further Details

  • All RJ-45 module ports are 10/100 switching and 10-/100-Mbps autonegotiating.
  • A RoHS-compliant 16-port model (LE1416AE) is also available.
  • All ports support half- and full-duplex modes.
  • Silicon-based switching (ASIC).
  • Store-and-forward switching.
  • Self-learning address tables.
  • Full-speed filter and forwarding across all ports.

  • Need to increase the efficiency of your large Ethernet LAN? Segment it into subnetworks with a high-powered, flexible BLACK BOX® Modular Fiber Switch.

    Choose your chassis.
    Three chassis styles are available: 8-port, 8-port rackmount, and 16-port. A 16-port RoHS-compliant model is also available. All four models can be configured with as few as four ports. Then you can add modules according to the demands of your network—without breaking your budget.

    Make a melting pot of media and speeds.
    Our Mixed Media Fiber Switches offer maximum flexibility for your network because you can configure any combination of fiber and RJ-45 modules and 10-Mbps, 10-/100-Mbps, and 100-Mbps speeds. You can install any module in any slot in any chassis. A wide variety of 4-port modules is available.

    Choose from:
  • 10- and 100-Mbps multimode fiber (LE1424C, LE1428C, LE1419C, LE1422C-LE1423C).
  • 10-/100-Mbps twisted-pair (LE1425C).
  • 100-Mbps single-mode fiber (LE1421C, LE1421C-40K).
  • 10-/100-Mbps mixed-media (LE1426C, LE1426C-SM, LE1427C)

    Set up in a flash.
    Network changes and additions are quick and easy with the self-learning Modular Fiber Switch. These switches automatically learn and maintain the addresses of attached nodes. The addresses are stored in a 24K-node address table that’s large enough to support your bulging LAN. Plus, an 8 MB packet buffer yields advanced performance, even with unbalanced loads.

    To top it all off, the internal, autosensing power supply operates both in the U.S. and internationally. You can set it up quickly and easily anywhere you have an AC-powered connection.

    Transmit error-free data efficiently.
    The Modular Fiber Switches feature store-and-forward switching on all ports. They read each complete data packet into an internal buffer, temporarily storing it and checking it against the individual switch’s internal address list. The entire packet undergoes an error-checking procedure to validate its integrity. Once verified, the packet is then forwarded from the buffer to the appropriate destination device. And because faulty packets are filtered out, traffic congestion is minimized.

    Any media, any speed, any network, anywhere.
    For truly versatile networking, populate a Modular Fiber Switch. With the option of 4, 8, 12, or 16 fiber or twisted-pair ports at your choice of speeds, you can’t go wrong. It’s the ideal migration path from 10-Mbps to 100-Mbps and from twisted pair to fiber.

    This product works with:
  • 4-Port Twisted-Pair Module for Modular Fiber Switches (LE1425C)
  • 4-Port Fiber Modules for Modular Fiber Switches (LE1419C, LE1421C–LE1424C, LE1421C-40K)
  • 4-Port Mixed Media Modules for Modular Fiber Switches (LE1426C, LE1426C-SM, LE1427C)
  • Modular Fiber Switch Blank Panel (LE1416A-BLANK)
  • CAT5 100-MHz Economy Patch Cables (EVCRB01-0001)
  • Ceramic Terminated Multimode Fiber Optic Cables, ST–ST (EFN062)
  • Multimode, General-Purpose, Breakout-Style Bulk Fiber Optic Cables (EXN062A)
  • Ceramic Terminated Multimode Fiber Optic Cables, SC–SC (EFN4025)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Modular Fiber Switch, 16-Port (with Rackmount Kit):

    Address Table — 24K nodes with address aging
    Cooling Method — Internal 9-cfm fan
    Filtering and Forwarding Rate — 16-port aggregate: 2380 K packets per second
    Latency — 100 Mbps: 5 µs + packet time;
    10 Mbps: 15 µs + packet time
    Packet Buffers — 8 MB dynamic
    Processing Type — Store and forward with IEEE 802.3x full-duplex flow control
    Standards — IEEE 802.3: 10BASE-T, 10BASE-FL;
    IEEE 802.3u: 100BASE-TX, 100BASE-FX
    Connectors — LE1416A: (1) power, (4) slots for modules
    Indicators — Chassis: Power; Per port: LK: ON when link is operational; Act: ON with port activity; FDX/HDX: ON for full-duplex mode, OFF for half-duplex mode; 100/10: ON for 100 Mbps, OFF for 10 Mbps
    Power — Input: 110–240 VAC, 47–63 Hz, internal, autosensing;
    Consumption: 35 W, typical
    Size — 1.75"H (1U) x 17"W x 9"D (4.4 x 43.2 x 22.9 cm)
    Weight — 4 lb. (1.8 kg)

    This product works with:
  • 4-Port Twisted-Pair Module for Modular Fiber Switches (LE1425C)
  • 4-Port Fiber Modules for Modular Fiber Switches (LE1419C, LE1421C–LE1424C, LE1421C-40K)
  • 4-Port Mixed Media Modules for Modular Fiber Switches (LE1426C, LE1426C-SM, LE1427C)
  • Modular Fiber Switch Blank Panel (LE1416A-BLANK)
  • CAT5 100-MHz Economy Patch Cables (EVCRB01-0001)
  • Ceramic Terminated Multimode Fiber Optic Cables, ST–ST (EFN062)
  • Multimode, General-Purpose, Breakout-Style Bulk Fiber Optic Cables (EXN062A)
  • Ceramic Terminated Multimode Fiber Optic Cables, SC–SC (EFN4025)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Modular Fiber Switch, 16-Port (with Rackmount Kit):

    Manuals

    • 100Mb FX Small-Form-Factor %X93plug-in%X94 connector
      Installation and User Guide (Apr-99)

    Product Data Sheets


    Connect your Modular Fiber Switch, 16-Port (with Rackmount Kit) with:

    Accessory: LE1428C

    4-Port Fiber Module for Modular Fiber Switches, Multimode ST, 100-Mbps

    4-Port Fiber Module for Modular Fiber Switches, Multimode ST, 100-Mbps

    Accessory: LE1424C

    4-Port Fiber Module for Modular Fiber Switches, 10-Mbps, Multimode ST

    4-Port Fiber Module for Modular Fiber Switches, 10-Mbps, Multimode ST

    Accessory: LE1419C

    4-Port Fiber Module for Modular Fiber Switches, Multimode SC, 100-Mbps

    4-Port Fiber Module for Modular Fiber Switches, Multimode SC, 100-Mbps

    Accessory: LE1425C

    4-Port Twisted Pair Module for Modular Fiber Switches, 10-/100-Mbps RJ-45

    4-Port Twisted Pair Module for Modular Fiber Switches, 10-/100-Mbps RJ-45

    Accessory: LE1421C-40K

    4-Port Fiber Module for Modular Fiber Switches, 100-Mbps, Single-Mode, 40 km, SC

    4-Port Fiber Module for Modular Fiber Switches, 100-Mbps, Single-Mode, 40 km, SC

    Accessory: LE1421C

    4-Port Fiber Module for Modular Fiber Switches, Single-Mode SC, 100-Mbps

    4-Port Fiber Module for Modular Fiber Switches, Single-Mode SC, 100-Mbps

    Accessory: LE1422C

    4-Port Fiber Module for Modular Fiber Switches, Multimode MT-RJ, 100-Mbps

    4-Port Fiber Module for Modular Fiber Switches, Multimode MT-RJ, 100-Mbps

    Accessory: LE1426C-SM

    4-Port Module for Modular Fiber Switches, (3) 10/100-Mbps RJ-45 Ports plus (1) 100-Mbps Fiber Port, Single-Mode SC

    4-Port Module for Modular Fiber Switches, (3) 10/100-Mbps RJ-45 Ports plus (1) 100-Mbps Fiber Port, Single-Mode SC

    Accessory: LE1427C

    4-Port Module for Modular Fiber Switches, (3) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Fiber Port, Multimode ST

    4-Port Module for Modular Fiber Switches, (3) 10-/100-Mbps RJ-45 Ports plus (1) 100-Mbps Fiber Port, Multimode ST

    Accessory: LE1426C

    4-Port Mixed Media Module for Modular Fiber Switches, Multimode SC, (3) 10/100-Mbps RJ-45 Ports plus (1) 100-Mbps Fiber Port

    4-Port Mixed Media Module for Modular Fiber Switches, Multimode SC, (3) 10/100-Mbps RJ-45 Ports plus (1) 100-Mbps Fiber Port
