Networking > Switches

click photo to enlarge

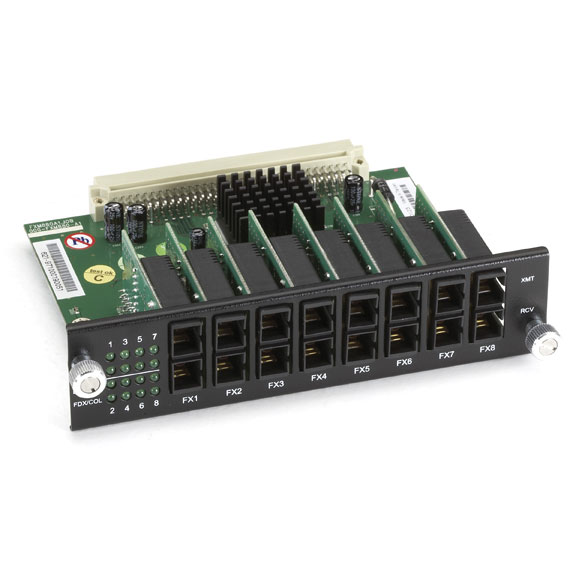

LB9215A

Photo may show similar product

Other views

Modular Express Ethernet Switch 8-Port Fiber Module SC

Add eight (8) multimode fiber SC ports to your Modular Express Ethernet Switch.

LB9215A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Module for the Modular Express Ethernet Switch, which enables you to mix and match copper and fiber ports to fit your application.
  • This module provides eight multimode (SC) fiber ports for your network.
  • Fiber ports are 100BASE-FX, 1310 nm with SC connections.
  • True nonblocking architecture with full wire-speed forwarding.

  • Description

    Modular Express Ethernet Switch 8-Port Fiber Module SC


    Quick Facts

  • Module for the Modular Express Ethernet Switch, which enables you to mix and match copper and fiber ports to fit your application.
  • This module provides eight multimode (SC) fiber ports for your network.
  • Fiber ports are 100BASE-FX, 1310 nm with SC connections.
  • True nonblocking architecture with full wire-speed forwarding.

  • Further Details

    The Modular Express Ethernet Switch gives you the ultimate in flexibility. It enables you to quickly adapt the number and type of Ethernet ports to your changing network, so you'll easily customize it to your needs, whatever the combination of copper and fiber ports that you have.

    The switch has two slots that you can fill with 8-port modules in combinations of 100-Mbps multimode fiber ports and/or 10/100 RJ-45 copper ports. A third “half” slot is reserved for a 1-port fiber or copper uplink module, so you can even customize it to your input signal!

    This store-and-forward switch delivers performance! It features a true nonblocking architecture with full wire-speed forwarding. Backpressure and IEEE 802.3x- compliant flow control help to prevent network congestion. It supports several “smart” features such as port-based VLAN and MAC-based trunking.

    The 10/100 copper ports are autosensing for speed and duplex, and they support Auto MDI/MDI-X. You can program speed and duplexity as either fixed or autonegotiating. Fiber ports are all 100-Mbps Fast Ethernet and come in a choice of ST or SC connectors.

    The switch is rackmountable, occupying only 1U of rack space in a standard 19" rack. It has a universal autosensing internal AC power supply. Front-panel LEDs enable you to see status at a glance.

    This product works with:
  • Modular Express Ethernet Switch (LB9217A-R2)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Modular Express Ethernet Switch 8-Port Fiber Module SC:

    Connectors — (8) SC multimode FX
    Duplex Support — Half and full, autonegotiating
    Forwarding Rate — 10 Mbps: 14,880 pps;
    100 Mbps: 148,800 pps
    MAC Addresses — 8000
    Switching Method — Store and forward
    CE Approval — Yes
    Indicators — LEDs: Per Unit: (1) Power;
    Per Port: (1) LNK/ACT, (1) FDX/COL
    Power — From the chassis
    Size — 1.5"H x 6"W x 4.5"D (3.8 x 15.2 x 11.5 cm)
    Weight — 0.4 lb. (0.2 kg)
    This product works with:
  • Modular Express Ethernet Switch (LB9217A-R2)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
