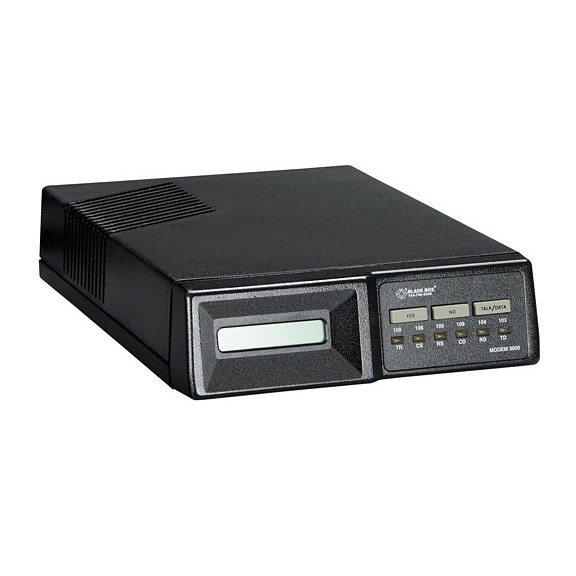

MD1000A

Photo may show similar product

Other views

Modem 3600, Standalone, AC-Powered

Our most secure dialup modem—features 33.6-kbps speeds and works with dialup or leased lines.

MD1000A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Dialup or 2-/4-wire leased line.
  • Exceptional choice for managing wide-ranging access to a central host or network.
  • Sync or async operation.

  • Description

    Modem 3600, Standalone, AC-Powered


    Quick Facts

  • Dialup or 2-/4-wire leased line.
  • Exceptional choice for managing wide-ranging access to a central host or network.
  • Sync or async operation.

  • Further Details

  • Programmable dialback security remembers codes for 50 nodes.

  • The Modem 3600 sends data at up to 33.6 kbps, and it can provide throughput rates up to 230.4 kbps.

    If you send data on less-than-ideal transmission lines, the Modem 3600 has a number of features to enhance operations. These include echo canceling, automatic adaptive line equalizing, adaptive baud-rate selection, trellis coding, constellation shaping, transmit power selection, and non-linear encoding and precoding.

    The Modem 3600 has top data center security and high speed—and 50-number callback security. You get digital speeds without being charged the monthly premium. Plus, the Modem 3600 can transmit sync or async data on leased or dialup analog lines.

    With data-transfer calls originating from one modem, you centralize and consolidate your corporate call billing. And remote configuration enables you to tend to all those distant modems from your office!

    You get the full complement of standard functions required in today's data centers: multiple configuration options (remote, front-panel LCD, or AT command set), full Group III fax capability, V.8-compliant automode, and automatic rate adaptation. That means if your lines are fully conditioned, you get the fastest possible data rates between two modems.


    Technical Specifications for Modem 3600, Standalone, AC-Powered:

    Diagnostics — V.54 remote loopback control; V.52 511 PN pattern; analog and digital loopback; test pattern
    Operation — 2-wire full-duplex dialup or leased lines; 4-wire full-duplex leased lines
    Speed (Maximum) — 33.6 kbps
    Standards — ITU: V.34+, V.34, V.32 bis, V.32, V.22 bis, V.21;
    Bell: 212A, 103
    Connectors — (1) DB25 F, (2) RJ-45
    Power — 115 VAC, 14 watts
    Size — 2.5"H x 7"W x 9.6"D (6.4 x 17.8 x 24.4 cm)
    Weight — 3 lb. (1.4 kg)

    This product works with:
    • Modem Defender (TS145A-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Modem 3600, Standalone, AC-Powered:

    Manuals

    • Modem 3600 Rackmount Card
      Installation and User Guide (Feb-04)
    • Modem 3600, Standalone, AC Powered
      Installation and User Guide (Apr-02)

    Product Data Sheets
