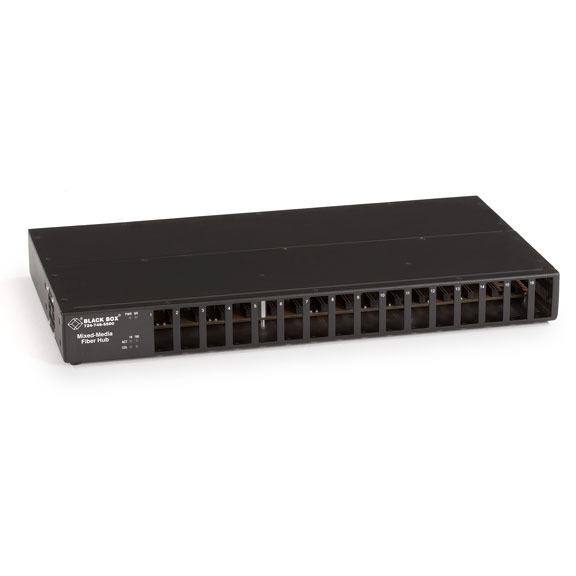

LH8050A

Photo may show similar product

Other views

Mixed-Media Fiber Hub 16-Port Chassis

Modular. Stackable. The new way to bring fiber to the desktop.

LH8050A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Mix 10BASE-T, 100BASE-TX, and 100BASE-FX.

  • Description

    Mixed-Media Fiber Hub 16-Port Chassis


    Quick Facts

  • Mix 10BASE-T, 100BASE-TX, and 100BASE-FX.

  • Further Details

  • Stack a 16-Port Base Chassis with a 16-Port Add-On Chassis for up to 48 ports. Also compatible with the 16-Port Dual-Speed 10/100 Stackable Hubs.
  • RJ-45 ports autosense 10- or 100-Mbps Ethernet and adapt to match.
  • Each stack supports two shared traffic domains—one at 10 Mbps and one at 100 Mbps.
  • Fiber ports are available in single-mode and multimode and a wide variety of styles: SC, ST, MT-RJ, and FC.


  • Move from 10 Mbps to 100 Mbps at your own speed. Bring fiber to the desktop where users can really appreciate it with this versatile, stackable chassis, and compatible modules.

    Mix and match 10BASE-T and 100BASE-TX—each RJ-45 port is autosensing, so it’s easy. Each 16-Port Base Chassis supports two shared traffic domains—one at 10 Mbps and one at 100 Mbps. An internal bridge connects the two domains.

    Plus get all the advantages of fiber cable right at the desktop. Because fiber is capable of far higher speeds than copper cable, using fiber in your new installations will help make your infrastructure ready for new technologies. Fiber also offers immunity from electrical interference and it’s almost impossible to eavesdrop on—an important feature if security is an issue.

    Stack one or two of the 16-Port Base Chassis for a total of up to 48 ports. These hubs can also be stacked with the 16-Port Rackmount Dual-Speed 10/100 Stackable Hubs. The Base Chassis are compatible with the Dual-Speed 10/100 Master Hub (LH8016A-M). The Add-On Chassis is compatible with the Dual-Speed 10/100 Client Hub (LH8016A-C).

    This product works with:
    • GigaBase® 350 CAT5e Patch Cable
    • Ceramic Terminated Multimode Fiber Optic Cable, ST and SC
    • MT-RJ Multimode Fiber Optic Cable
    • 16-Port Dual-Speed 10/100 Stackable Hubs
    Questions? Contact our FREE Tech Support.


    Technical Specifications for Mixed-Media Fiber Hub 16-Port Chassis:

    Bridging — Store-and-forward processing; 8 KB, self-learning address table; 2 MB dynamic packet buffers
    Speed — 10 or 100 Mbps per port
    Standards — IEEE802.3u: 100BASE-TX, 100BASE-FX;
    IEEE802.3: 10BASE-T
    Indicators — LEDs: Power, Bridge Inside, Packet Activity 10, Packet Activity 100, Collision 10, Collision 100;
    Power — 115–230 VAC, 50–60 Hz, autosensing
    Size — 1.75"H x 17"W x 10.5"D (4.4 x 43.2 x 26.7 cm)
    Weight — 4 lb. (1.8 kg)
    This product works with:
    • GigaBase® 350 CAT5e Patch Cable
    • Ceramic Terminated Multimode Fiber Optic Cable, ST and SC
    • MT-RJ Multimode Fiber Optic Cable
    • 16-Port Dual-Speed 10/100 Stackable Hubs
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Mixed-Media Fiber Hub 16-Port Chassis:

    Product Data Sheets


    Connect your Mixed-Media Fiber Hub 16-Port Chassis with:

    Accessory: EFN110-001M-STST

    ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cables, ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    Accessory: LH8000A-C

    Dual-Speed 10/100 Stackable Hub, 8-Port Desktop, Client

    Dual-Speed 10/100 Stackable Hub, 8-Port Desktop, Client

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: LE8055C-ST

    Mixed-Media Fiber Hub Fiber Port Modules, ST Connector

    Mixed-Media Fiber Hubs, Fiber Port Modules, 10-Mbps, Multimode, ST Connector

    Accessory: EFP080-001M

    MT-RJ to MT-RJ Duplex, 1-m, (3.2-ft.)

    MT-RJ Fiber Cables, MT-RJ to MT-RJ Duplex, 1-m, (3.2-ft.)
