Networking > Media Converters


click photo to enlarge

LHC013A-R2

Photo may show similar product

Other views

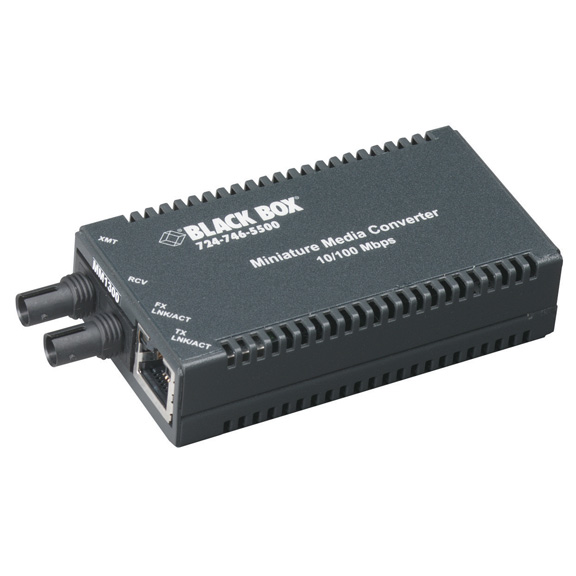

MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Fiber, 1300-nm Multimode, 2 km, ST

This tiny media converter is perfect for bringing fiber to the desktop.

LHC013A-R2

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Brings fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.
  • Connects Ethernet or Fast Ethernet to fiber optic cable.
  • Compact size—measures just 0.8"H x 1.8"W x 3.4"D.


  • Further Details

  • Autonegotiates for speed and duplex.
  • Powered by a universal AC power supply, a PC's USB port, or the optional rackmountable PowerTray.
  • Auto MDI/MDI-X means you never need to worry about what kind of cable to use.


  • This BLACK BOX® Miniature Media Converter makes it easy to bring fiber to the desktop. Just connect it to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck this tiny converter unobtrusively behind your PC.

    The converter not only links 10- and 100-Mbps segments to fiber cabling, it also works as a data rate converter, performing 10/100 autonegotiation on the twisted-pair port.

    For extra versatility, you can power the Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (which plugs into a PC's USB port and is sold separately), or through the optional rackmount PowerTray (sold separately).

    Cable Requirements Twisted pair: CAT5 or above, shielded or unshielded;
    Multimode fiber: 50-/125-µm or 62.5-/125-µm duplex
    Environmental Operating temperature: +32 to +104°F (+0° to +40°C);
    Storage temperature: 0 to 160°F (-20 to +70°C);
    Humidity: 5 to 95%, noncondensing
    CE Approval Yes
    Connectors (1) RJ-45, with autocross for MDI-II/MDI-X;
    (1) pair of ST®
    Indicators LEDs: Per twisted-pair port: (1) TX Link/ACT, (1) FX Link/ACT;
    Per fiber port: (1) XMT, (1) RCV
    Power From the included external 100-240-VAC, 50-60-Hz adapter;
    Via USB Power Adapter Cable (LHC021A) connected to a computer's USB port;
    From the PowerTray with a 100-240 VAC, 50-60 Hz (LHC018A-AC-R2) or 7-50 VDC (LHC018A-DC-R2) power supply
    Size 0.8"H x 1.8"W x 3.4"D (2 x 4.6 x 8.6 cm)
    This product works with:
    • Miniature Media Converter USB Power Adapter Cable
    • Miniature Media Converter Power Trays
    • GigaBase® 350 CAT5e Patch Cable, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
    • Premium Ceramic Multimode Fiber Optic Cable (EFN110)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Product Data Sheets

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Black Box Explains


    Accessory: EFN110-001M-STST

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cables, ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    Premium Ceramic, Multimode, 62-5-Micron Fiber Optic Patch Cables, ST–ST, Duplex, Riser, 1-m (3.2-ft.)

    Accessory: EFN5009

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, Custom Lengths

    Single-Mode, 9.0-Micron Duplex Fiber Optic Cable, ST–ST, PVC, Custom Lengths

    Accessory: EVNSL85-0010

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    GigaBase 350 CAT5e Patch Cable, Snagless Boots, Beige, 10-ft. (3.0-m)

    Accessory: LHC018A-AC-R2

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Miniature Media Converter Power Tray with AC Power, 18-Slot

    Accessory: LHC021A

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

    Miniature Media Converter and Industrial Multipower Media Converter USB Power Adapter Cable

    Accessory: LHC028A-R2

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 20 km, 1310-nm Single-Mode, TX/1550-nm RX, SC

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Single-Strand Fiber, 20 km, 1310-nm Single-Mode, TX/1550-nm RX, SC

    Accessory: LXC-DR

    DIN Rail Clip for MultiPower Miniature and Industrial MultiPower Media Converters

    DIN Rail Clip for MultiPower Miniature and Industrial MultiPower Media Converters

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Fiber, 1300-nm Multimode, 2 km, ST comes with a standard 6 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Fiber, 1300-nm Multimode, 2 km, SC LHC014A-R2 $184.95

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Fiber, 1310-nm Single-Mode, 40 km, SC LHC015A-R2 $279.95

    MultiPower Miniature Media Converter, 10-/100-Mbps Copper to 100-Mbps Fiber, 1310-nm Single-Mode, 40 km, ST LHC036A-R2 $279.95

    MultiPower Miniature Media Converter, 10-/100-Mbps TX/SX Multimode, 850-nm, 300 m, ST LHC040A-R2 $161.95

    MultiPower Miniature Media Converter, 10-/100-Mbps TX/FX Multimode, 850-nm, 300 m, SC LHC041A-R2 $161.95



    Add to Cart

    Price: $184.95

    Quantity Available: 148

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.718 lbs.
    HxWxD: 1.5 x 4.25 x 7.25 in.
