Networking > Legacy Technologies

click photo to enlarge

LB0100A-V24

Photo may show similar product

Other views

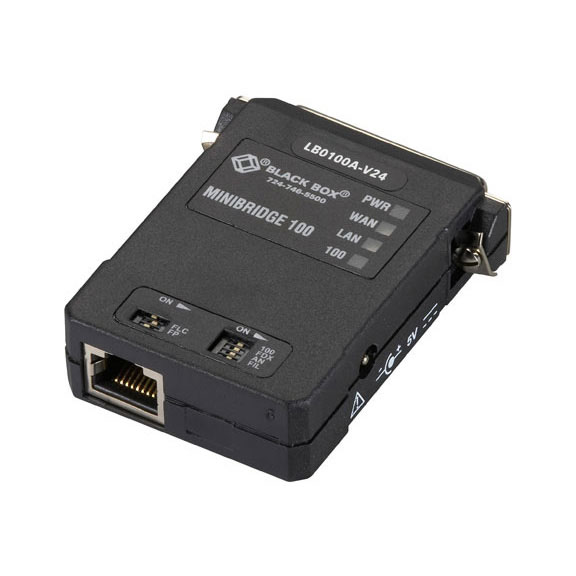

MiniBridge 10/100BASE-T with WAN Interface, RS-232/V.24 DB25 Female

This tiny bridge links to a modem or CSU/DSU!

LB0100A-V24

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Remote, self-learning bridge provides 10/100BASE-T Ethernet connectivity.
  • Small and economical, the bridge fits in the palm of your hand.
  • High throughput makes it ideal for bridging over synchronous WANs.

  • Description

    MiniBridge 10/100BASE-T, WAN Interface, V.24 RS-232 DB25 Female


    Quick Facts

  • Remote, self-learning bridge provides 10/100BASE-T Ethernet connectivity.
  • Small and economical, the bridge fits in the palm of your hand.
  • High throughput makes it ideal for bridging over synchronous WANs.

  • Further Details

  • Add bridging functionality to existing equipment such as routers, multiplexors, and modems.
  • Ideal for use in campus settings and office parks.
  • Supports high-bandwidth, real-time applications.
  • Uses the full WAN bandwidth with a throughput of 19,700 packets per second.
  • Supports packet sizes of 1,536 bytes for transparent forwarding of VLAN frames.
  • Forwards only frames destined for a remote LAN.
  • Fault propagation minimizes downtime, enabling fast rerouting.
  • Automatically learns MAC addresses.
  • Operates in half- or full-duplex.
  • Automatic MDI-X enables you to use straight or cross-pinned cables on the RJ-45 side.
  • Features two priority queues.
  • Choose from many interfaces for your WAN link.
  • Simple plug-and-play installation.
  • For a version with a 5-screw terminal block interface, see the MiniBridge 10/100BASE-T with 4-Wire Interface (LB100A-4W).

  • Technical Specifications for MiniBridge 10/100BASE-T with WAN Interface, RS-232/V.24 DB25 Female:

    LAN Interface:
    Cable — Shielded CAT5 recommended
    Data Rate — LAN: 10 or 100 Mbps
    Frame — LAN: 1536 bytes maximum
    LAN Table — MAC Address Table: 2K
    Latency — 64-byte frames: 66-µs;
    1536-byte frames: 1400-µs

    WAN Interface:
    Data Rate (Maximum) — 10 Mbps
    Protocol — HDLC
    Standards — IEEE 802.3
    Throughput — WAN at 10 Mbps: 19,700 pps for 64-byte frames;
    802 pps for 1536-byte frames

    General:
    Buffer — Up to 120 frames for 64-byte frames
    CE Approval — Yes
    Connectors — All: Ethernet: (1) RJ-45 shielded;
    LB0100A-V24: DB25 F;
    LB0100A-530: DB25 F;
    LB0100A-V36: DB37 F via adapter cable;
    LB0100A-V.35F, LB0100A-V35M: M-34 F or M via adapter cable;
    LB0100A-X.21F, LB0100A-X21M: DB15 M or F via adapter cable
    Indicators — LEDs: Power, WAN, LAN, 100
    Power — 100–240 VAC, 50–60 Hz, switch-selectable external adapter
    Size — 2.7"H x 2.1"W x 0.7"D (6.9 x 5.3 x 1.8 cm)
    Weight — <0.1 lb. (<0.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for MiniBridge 10/100BASE-T with WAN Interface, RS-232/V.24 DB25 Female:

    Manuals

    • Miniature Remote Fast Ethernet Bridges
      Installation/User (10/6/2012)


    Connect your MiniBridge 10/100BASE-T with WAN Interface, RS-232/V.24 DB25 Female with:

    Accessory: LB0100A-4W
