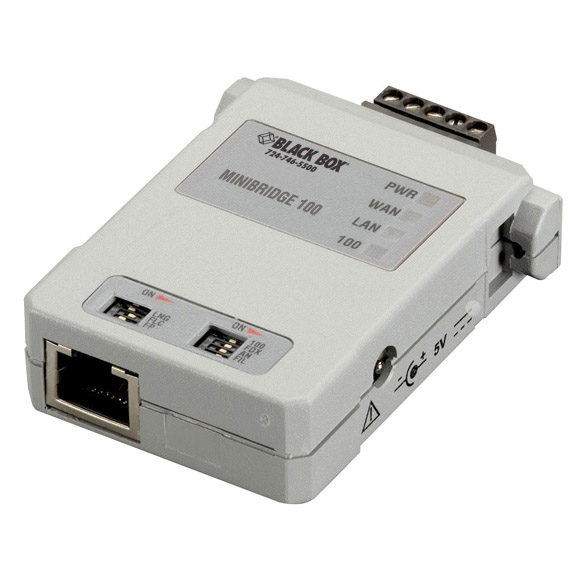

MiniBridge 10/100BASE-T with 4-Wire Interface

Extend an Ethernet connection up to 2297 feet (700m) over a 4-wire WAN interface.


Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Remote, self-learning bridge provides 10/100BASE-T Ethernet connectivity.
  • Small and economical, the bridge fits in the palm of your hand.
  • High throughput makes it ideal for bridging over synchronous WANs.

  • Further Details

  • Use its 5-pin terminal block interface to extend a 10/100BASE-T Ethernet LAN point-to-point up to 2297 feet (700 m) over four wires.
  • Ideal for use in campus settings and office parks.
  • Supports high-bandwidth, real-time applications.
  • Uses the full WAN bandwidth with a throughput of 19,700 packets per second.
  • Supports packet sizes of 1,536 bytes for transparent forwarding of VLAN frames.
  • Forwards only frames destined for a remote LAN.
  • Fault propagation minimizes downtime, enabling fast rerouting.
  • Automatically learns MAC addresses.
  • Operates in half- or full-duplex.
  • Automatic MDI-X enables you to use straight or cross-pinned cables on the RJ-45 side.
  • Features two priority queues.
  • Simple plug-and-play installation.
  • For RS-232, RS-530, RS-442/449/V.36 interfaces, as well as V.35 and X.21 interfaces, see our MiniBridge 10/100BASE-T with WAN Interface models.

  • "
    LAN Interface:
    Cable Shielded CAT5 recommended
    Data Rate LAN: 10 or 100 Mbps
    Frame LAN: 1536 bytes maximum
    LAN Table MAC Address Table: 2K
    Latency 64-byte frames: 66-µs;
    1536-byte frames: 1400-µs

    WAN Interface:
    Data Rate (Maximum) 10 Mbps
    Distance (Maximum) 2297 ft. (700 m) at 5 Mbps;
    1640 ft. (500 m) at 10 Mbps
    Protocol HDLC
    Standards IEEE 802.3
    Throughput WAN at 10 Mbps: 19,700 pps for 64-byte frames;
    802 pps for 1536-byte frames

    Buffer Up to 120 frames for 64-byte frames
    CE Approval Yes
    Connectors Ethernet: (1) RJ-45 shielded;
    WAN: 5-screw terminal block
    Indicators LEDs: Power, WAN, LAN, 100
    Power 100-240 VAC, 50-60Hz, switch-selectable external adapter
    Size 2.7"H x 2.1"W x 0.7"D (6.9 x 5.3 x 1.8 cm)
    Weight <0.1 lb. (<0.1 kg)
